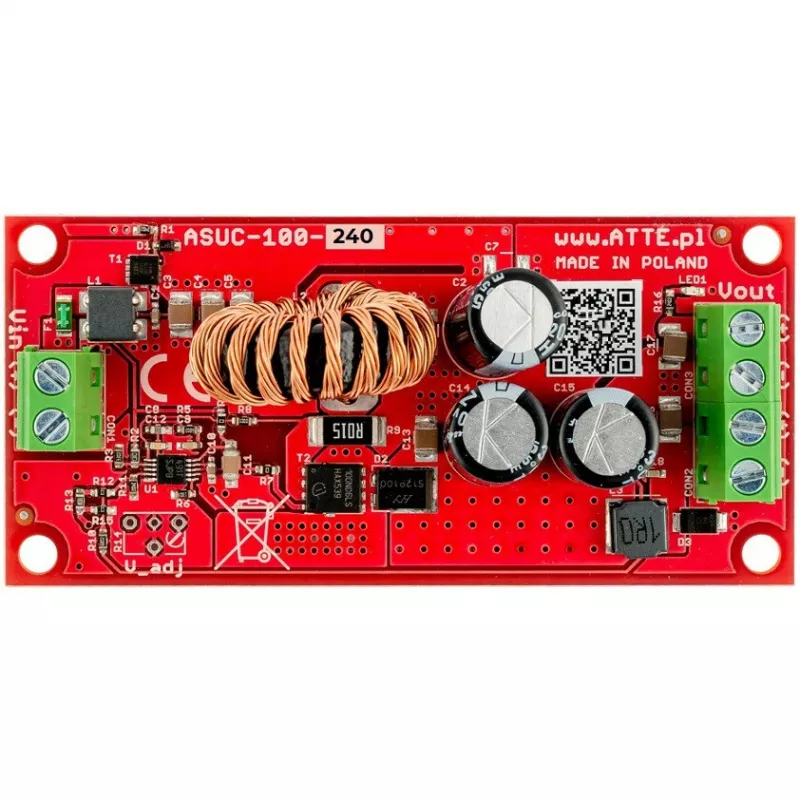

Inversor de onda sinusoidal pura ATTE ASUC-100-240-OF 100W 24V DC a 230V AC

The ATTE ASUC-100-240-OF is a high-performance pure sine wave inverter designed to convert 24V DC power from batteries or solar systems into stable 230V AC power. With a continuous output of 100W and a peak power of 200W, it is ideal for powering sensitive electronics, small appliances, and tools in off-grid, mobile, or backup applications. Its fanless, passive cooling design ensures silent operation and long-term reliability.

Advantages

Pure sine wave output ensures compatibility with sensitive devices such as laptops, medical equipment, and audio systems. High efficiency (>85%) minimizes energy loss. Compact and lightweight aluminum housing provides durability and effective heat dissipation. Comprehensive protection features safeguard both the inverter and connected devices.

Suitable for

• Off-grid solar systems
• Caravan, boat, and RV power
• Emergency backup power
• Mobile workstations and field equipment

Key specifications

• Continuous output power: 100W
• Peak output power: 200W (1-2 seconds)
• Input voltage: 24V DC
• Output voltage: 230V AC
• Output waveform: Pure sine wave
• Output frequency: 50Hz
• Efficiency: >85%
• AC outlets: 1x Schuko (Type F)
• Input connection: Screw terminals
• Protection: Overload, short circuit, over-temperature, low/high input voltage, reverse polarity
• Cooling: Passive (fanless)
• Operating temperature: -10°C to +50°C
• Standby current: <0.5A
• THD: <3%
• LED indicators: Power, Fault
• Housing material: Aluminum alloy
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with a deep-cycle battery and ensure proper cable sizing. The inverter is not suitable for inductive loads exceeding 100W continuous. Always connect directly to the battery with appropriate fusing.
