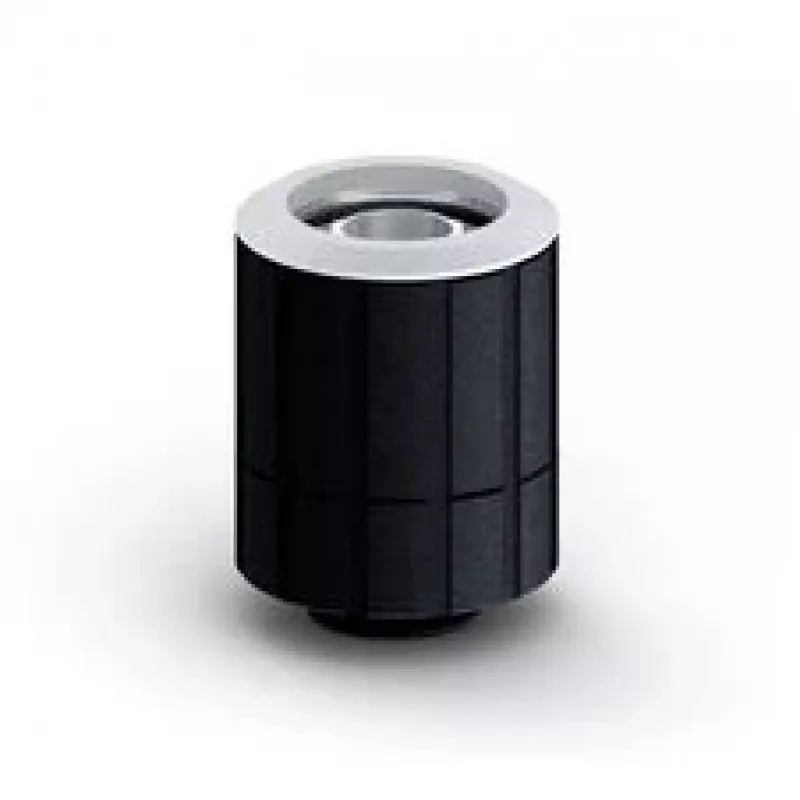

BitsPower fitting recto G1/4 rosca macho a 16/10 mm giratorio — negro mate

BitsPower straight fitting G1/4 male to 16/10mm rotary — matte black provides a compact metal connection between standard G1/4 threaded ports and 16/10 mm tubing. The fitting features a straight profile with a 16/10 mm barb for soft or compatible hard tubing and a rotary (swivel) joint that allows rotation during installation to reduce hose stress and achieve cleaner routing in custom liquid cooling loops and PC cooling systems.

Advantages

The matte black finish offers corrosion resistance and a low-reflective surface suitable for visible loop sections. The rotary design minimizes torsion on the tubing and simplifies alignment with adjacent components, reducing the effort required for precise positioning. The metal construction delivers mechanical durability and a secure sealing surface for reliable leak-free connections when used with appropriate tubing and clamps.

Suitable for

• Custom PC liquid cooling loops with G1/4 threaded ports
• Connections to 16/10 mm soft tubing or compatible hard tubing
• Tight or compact build layouts requiring rotational alignment

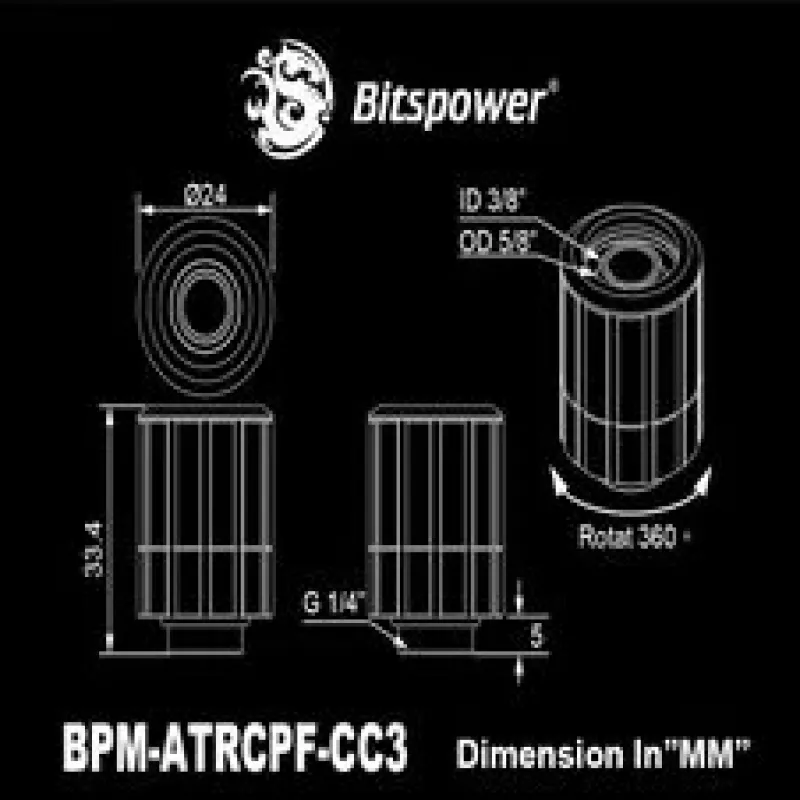

Key specifications

• Thread type: G1/4 male thread
• Tubing compatibility: 16/10 mm (outer diameter 16 mm, inner diameter 10 mm)
• Profile: straight fitting with swivel (rotary) joint
• Material: metal construction (matte black finish)
• Finish: matte black

How to use

Hand-thread the G1/4 male thread into a compatible G1/4 port until gently snug, then tighten with an appropriate tool if necessary while avoiding over-torquing. Slide the 16/10 mm tubing onto the barb until it seats fully and secure the tubing with a suitable clamp or retention ring to ensure a leak-proof seal. Use the rotary joint to orient the tubing for optimal routing before final clamping.

Recommendations

Inspect sealing surfaces and tubing for damage before installation. Use compatible clamps and avoid excessive force when tightening the threaded connection to maintain sealing integrity. Periodically check fittings and tubing for signs of wear or loosening in operational systems.
