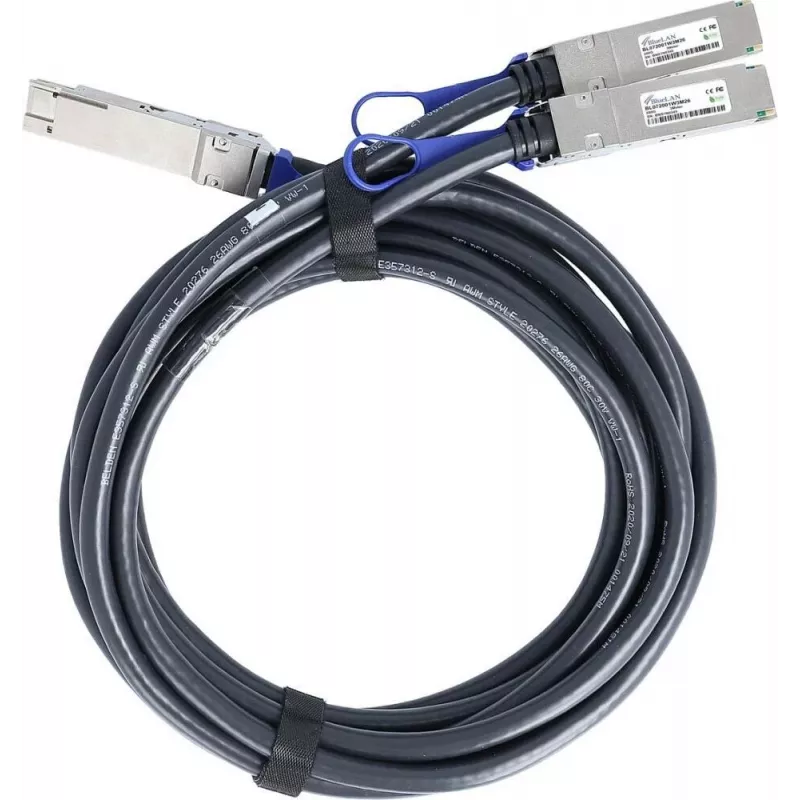

BLUELAN Cable Breakout Direct Attach InfiniBand HDR Pasivo 200Gb/s QSFP56 a 2x100Gb/s QSFP56 Compatible NVIDIA 980-9I98H-00V001, 2 metros, AWG26

The BLUELAN 980-9I98H-00V001-BL is a high-performance passive copper direct attach breakout cable (DAC) designed for demanding data center and high-performance computing (HPC) environments. It provides a reliable and cost-effective solution for connecting 200Gb/s QSFP56 ports to two 100Gb/s QSFP56 ports, supporting InfiniBand HDR (High Data Rate) protocols. This cable is fully compatible with NVIDIA 980-9I98H-00V001 and offers excellent signal integrity over a 2-meter length with AWG26 wire gauge.

Advantages

This breakout cable simplifies network architecture by enabling a single 200Gb/s port to connect to two 100Gb/s devices, reducing the need for additional switches or adapters. The passive design ensures low power consumption and zero latency, making it ideal for high-speed data transmission. Its hot-pluggable QSFP56 connectors allow for easy installation and maintenance without network downtime.

Suitable for

• Data centers requiring high-density, high-speed interconnects
• High-performance computing (HPC) clusters
• InfiniBand HDR networks
• NVIDIA networking equipment
• Breakout applications from 200Gb/s to 100Gb/s

Key specifications

• Product Type: Direct Attach Breakout Cable (DAC)
• Cable Type: Passive Copper
• Aggregate Data Rate: 200 Gb/s
• Breakout Configuration: 1x 200Gb/s QSFP56 to 2x 100Gb/s QSFP56
• Connector A: QSFP56
• Connector B: 2x QSFP56
• Protocol Support: InfiniBand HDR
• Cable Length: 2 Meters
• Wire Gauge: AWG26
• OEM Compatibility: NVIDIA 980-9I98H-00V001
• MSA Compliant: Yes
• Hot-Pluggable: Yes
• Power Consumption: Low (Passive)
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure that both connected devices support QSFP56 and InfiniBand HDR. This cable is a direct replacement for NVIDIA 980-9I98H-00V001 and is fully tested for compatibility. Suitable for use in server rooms, data centers, and HPC environments where high bandwidth and low latency are critical.
