BlueLAN Cable Direct Attach Breakout QSFP56 200GBASE-CR4 a 2x100GBASE-CR2 QSFP56 Pasivo compatible con Mellanox MCP7H50-V002R26, 2m, AWG26

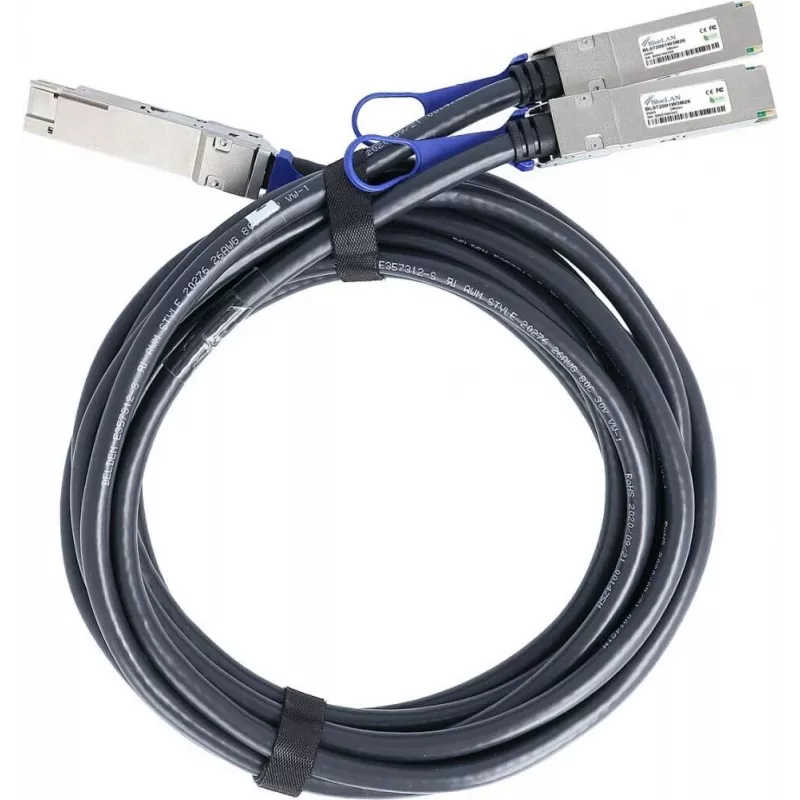

The BlueLAN MCP7H50-V002R26-BL is a high-performance passive direct attach breakout cable designed for 200Gb/s QSFP56 to dual 100Gb/s QSFP56 connectivity. Fully compatible with Mellanox MCP7H50-V002R26, this cable enables seamless integration into high-speed data networks, server-to-switch interconnects, and HPC environments.

Advantages

Cost-effective breakout solution for 200G to 2x100G migration; ultra-low power consumption (passive design); hot-swappable for easy deployment; low latency for demanding applications.

Suitable for

• Data centers requiring high-density 200Gb/s to 100Gb/s connectivity
• HPC clusters and InfiniBand HDR networks
• Server-to-switch and switch-to-switch interconnects

Key specifications

• Cable Type: Direct Attach Cable (DAC), Breakout
• Connector A: QSFP56 (200GBASE-CR4)
• Connector B: 2x QSFP56 (100GBASE-CR2)
• Data Rate: 200 Gbps aggregate (2x 100 Gbps)
• Length: 2 meters
• Wire Gauge: AWG26
• Design: Passive
• Compatible OEM Part: Mellanox MCP7H50-V002R26
• Protocol: Ethernet

Recommendations

For optimal performance, ensure your equipment supports QSFP56 and 200GBASE-CR4/100GBASE-CR2 standards. This cable is ideal for upgrading to 200G while reusing existing 100G ports.
