BlueLAN Cable breakout Direct Attach pasivo compatible con Mellanox MCP7H50-V003R26 200G QSFP56 a 2x100G QSFP56, 3m, AWG26 MCP7H50-V003R26-BL

Aggregate 200 Gbps throughput over a passive copper breakout cable that splits a single QSFP56 port into two 100 Gbps QSFP56 links. Built for Mellanox MCP7H50-V003R26 environments, this 3-meter AWG26 cable delivers dense, low-latency connectivity without active components.

Overview

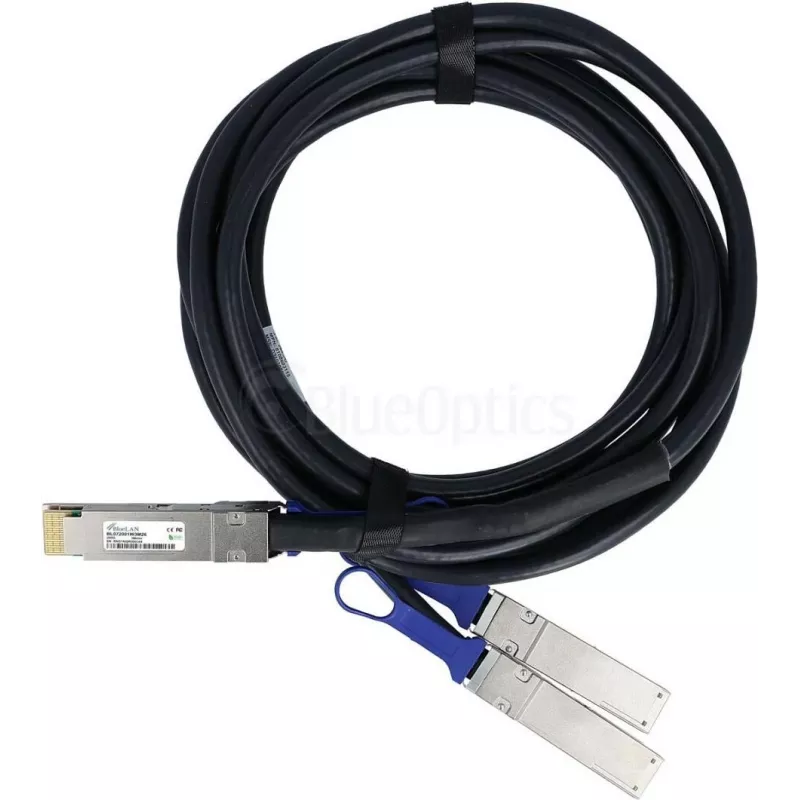

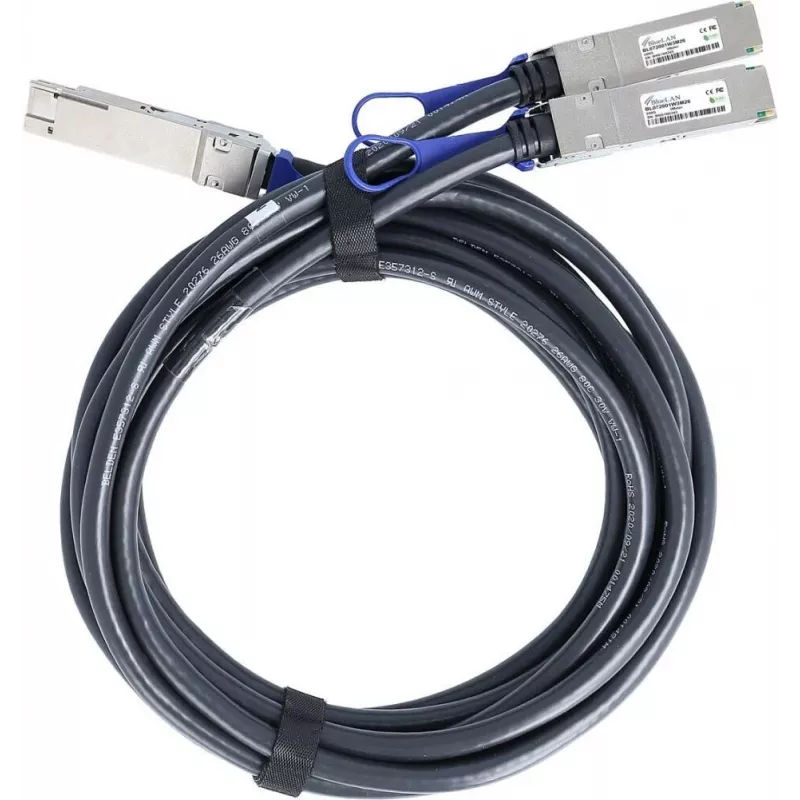

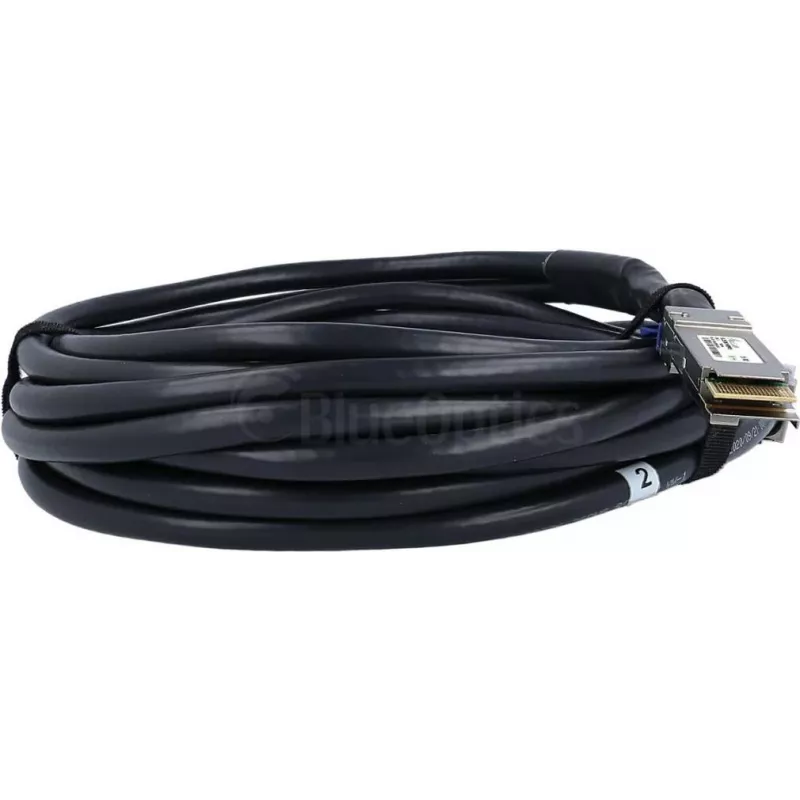

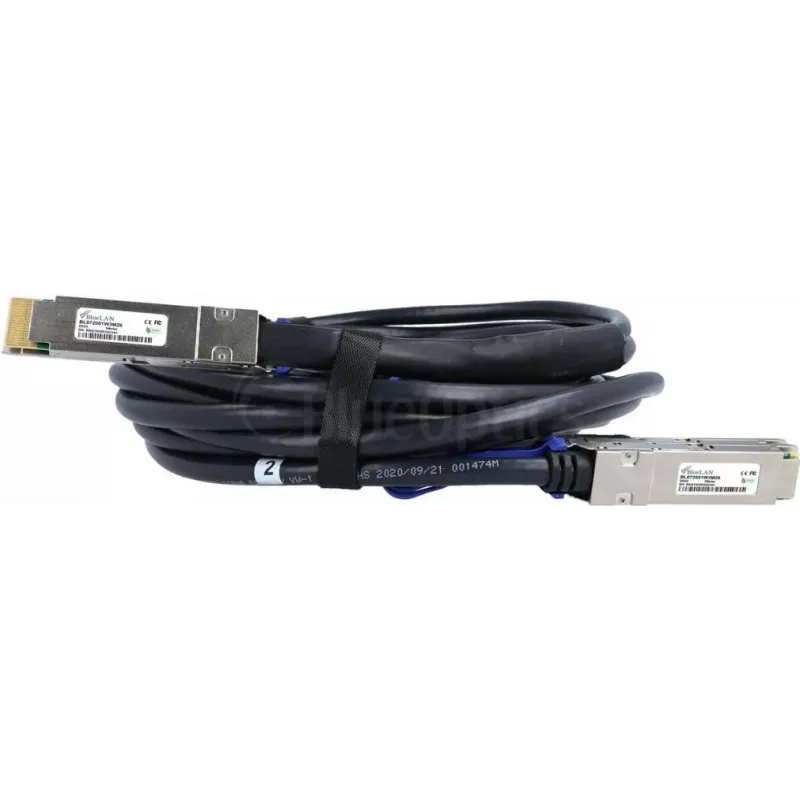

The BlueLAN MCP7H50-V003R26-BL is a passive Direct Attach Breakout Cable (DAC) that connects a 200GBASE-CR4 QSFP56 port to two 100GBASE-CR2 QSFP56 ports. It is engineered for short-reach, high-bandwidth interconnects in data centers, high-performance computing clusters, and enterprise network fabrics. The cable uses 26 AWG copper conductors and is fully hot-pluggable.

What stands out

• Aggregate data rate of 200 Gbps across one QSFP56 to two QSFP56 breakout
• Passive copper design: no power draw, no signal regeneration, minimal latency
• 3-meter length with AWG26 conductors for rack-level and adjacent-rack cabling
• Compatible with Mellanox MCP7H50-V003R26 and equivalent QSFP56 ports
• Hot-pluggable for fast deployment and maintenance

Technical details

• Product type: Direct Attach Breakout Cable (DAC)
• Cable length: 3 m
• Aggregate data rate: 200 Gbps
• Connector A: QSFP56
• Connector B: 2x QSFP56
• Data rate (End A): 200GBASE-CR4
• Data rate (End B): 2x 100GBASE-CR2
• Cable type: Passive copper
• Wire gauge: AWG26
• Breakout configuration: 1x 200G to 2x 100G
• Electrical interface: Copper
• Protocol support: Ethernet
• Hot-pluggable: Yes
• Application: Data center interconnect, high-performance computing, enterprise networking

Our verdict

A straightforward, high-density 200G-to-2x100G breakout cable for Mellanox QSFP56 ports. Passive copper keeps cost and latency low for short 3-meter runs.
