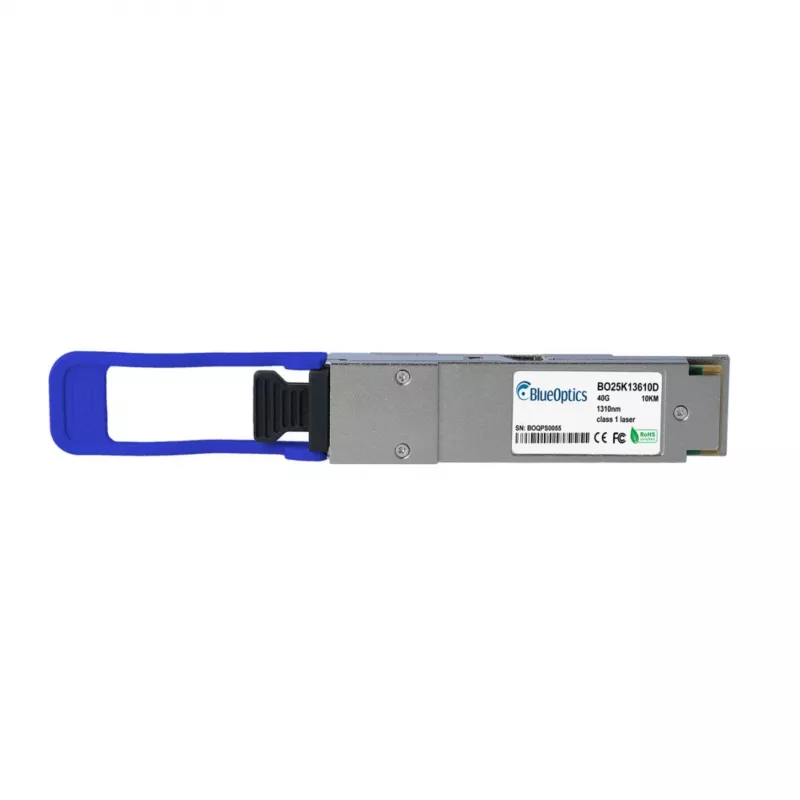

BlueOptics BO25K13610D QSFP+ 40GBASE-LR4 Transceptor compatible con Ruckus E40G-QSFP-LR4-INT, 10 km, Duplex LC, SMF

The BlueOptics BO25K13610D is a high-performance QSFP+ transceiver designed for 40 Gigabit Ethernet networks. It is fully compatible with Ruckus E40G-QSFP-LR4-INT equipment and complies with MSA standards, ensuring seamless integration into existing infrastructures. This transceiver supports 40GBASE-LR4 over single-mode fiber (SMF) with a reach of up to 10 km, making it ideal for long-reach data center and enterprise network connections.

Advantages

Cost-effective alternative to OEM modules without compromising performance or reliability. Hot-pluggable design simplifies installation and maintenance. Low power consumption (<3.5W) helps reduce operational costs. Built-in DDM/DOM enables real-time monitoring of optical parameters for proactive network management.

Suitable for

• Data center interconnects
• Enterprise network backbone
• Service provider metro networks
• High-speed storage area networks (SAN)

Key specifications

• Form Factor: QSFP+
• Data Rate: 40 Gbps
• Standard: 40GBASE-LR4
• Max Distance: 10 km
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: Duplex LC
• Wavelengths: 1271nm, 1291nm, 1311nm, 1331nm (LAN WDM)
• DDM/DOM Support: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: < 3.5W
• Compatibility: Ruckus E40G-QSFP-LR4-INT and MSA Compliant
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, use with single-mode fiber patch cables (OS2) and ensure proper cleaning of optical connectors. This transceiver is a direct replacement for the Ruckus E40G-QSFP-LR4-INT module.
