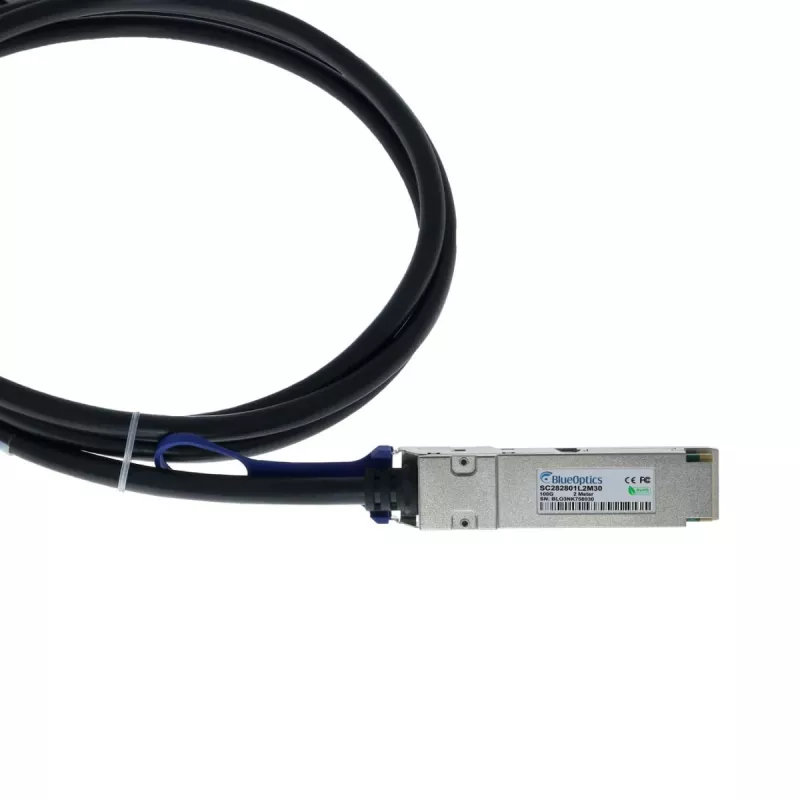

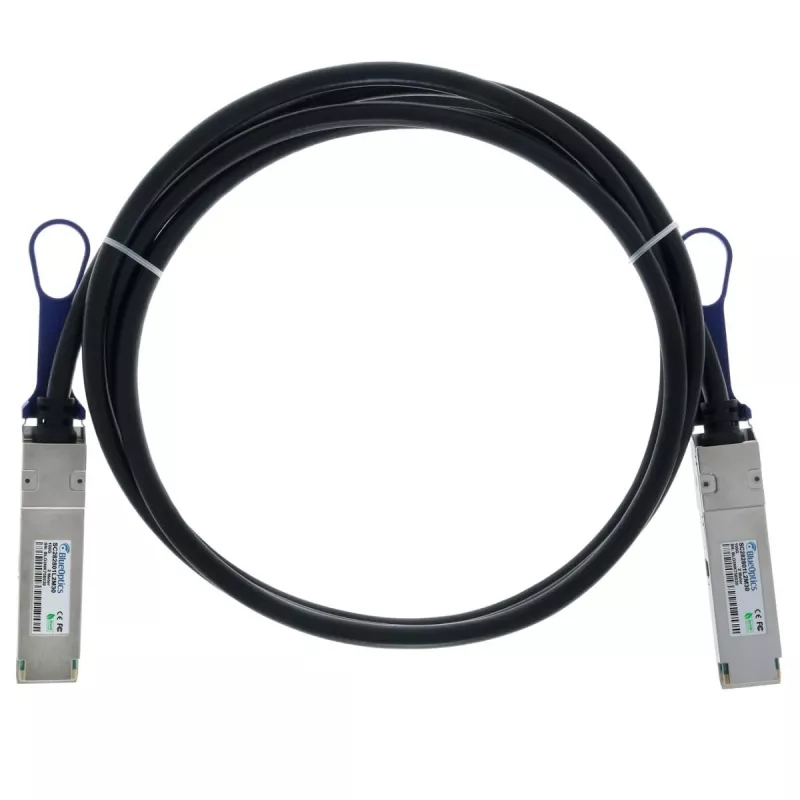

BlueOptics Ruckus 100G-Q28-Q28-C-0201 Cable de cobre pasivo DAC QSFP28 BlueLAN compatible 2m (6,56ft) 30 AWG

The BlueOptics Ruckus 100G-Q28-Q28-C-0201 Compatible BlueLAN DAC QSFP28 Passive Copper Cable is a high-performance direct attach cable designed for 100 Gigabit Ethernet connectivity. This 2-meter (6.56 ft) cable features QSFP28 connectors on both ends and is fully compatible with Ruckus 100G-Q28-Q28-C-0201 equipment. It supports IEEE 802.3bj (100GBASE-CR4) standards and is ideal for data center interconnects, high-performance computing, and enterprise networking.

Advantages

This passive copper DAC cable offers a cost-effective and low-power solution for short-range 100G connections. With a power consumption of less than 0.5W per end, it minimizes energy costs while delivering reliable performance. The 30 AWG construction ensures flexibility and easy cable management in dense environments. Hot-swappable design allows for quick installation and replacement without network downtime.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise network switches and routers
• Ruckus 100G-Q28-Q28-C-0201 compatible systems

Key specifications

• Cable Type: Direct Attach Cable (DAC) Passive Copper
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gigabit Ethernet (100G)
• Cable Length: 2 meters (6.56 ft)
• AWG: 30 AWG
• Protocol Support: IEEE 802.3bj (100GBASE-CR4)
• Hot-Swappable: Yes
• Power Consumption: < 0.5W per end
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Compliance: MSA Compliant, RoHS, CE, FCC
• Jacket Material: PVC
• Impedance: 100 Ohm
• Channels: 4x 25Gbps (NRZ)

Recommendations

For optimal performance, ensure that both ends of the cable are securely connected to compatible QSFP28 ports. This cable is designed for indoor use only and should be installed in a controlled environment. Avoid bending the cable beyond its minimum bend radius to prevent damage.
