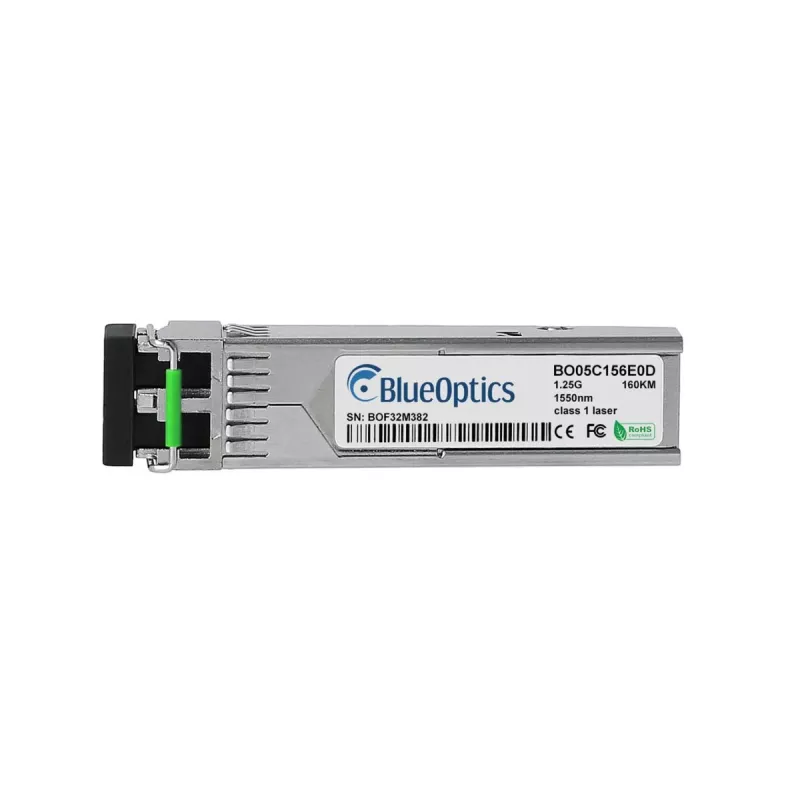

BlueOptics SFP BO05C156E0D compatible con TP-Link SFP-1G-ZX-160KM - Transceptor 1,25Gbps 1550nm 160km LC SMF

The BlueOptics BO05C156E0D SFP transceiver is a high-performance, cost-effective solution designed for long-haul Gigabit Ethernet applications. Fully compatible with TP-Link SFP-1G-ZX-160KM equipment, this module delivers reliable connectivity over single-mode fiber at distances up to 160 km. It operates at a wavelength of 1550 nm with a data rate of 1.25 Gbps, ensuring stable and high-speed data transmission for enterprise networks, data centers, and telecommunications.

Advantages

This transceiver offers exceptional reach and performance, making it ideal for long-distance links. It supports Digital Diagnostic Monitoring (DDM/DOM) for real-time monitoring of optical parameters, enabling proactive network management. The hot-pluggable design allows for easy installation and replacement without network downtime. Compliant with MSA standards, it ensures interoperability with a wide range of networking equipment.

Suitable for

• Gigabit Ethernet connections over long distances (up to 160 km)
• Fiber Channel applications
• Metropolitan area networks (MANs)
• Service provider and enterprise networks requiring extended reach

Key specifications

• Transceiver Type: SFP
• Data Rate: 1.25 Gbps
• Wavelength: 1550 nm
• Max Distance: 160 km
• Fiber Type: Single-Mode (OS1/OS2)
• Connector: LC Duplex
• Interface: 1000BASE-ZX
• DDM/DOM: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: < 1.0 W
• Laser Type: DFB
• Receiver Type: APD
• Hot-Swappable: Yes
• MSA Compliant: Yes
• Power Supply: 3.3 V
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, use with single-mode fiber (OS1/OS2) and ensure proper handling of optical connectors. This module is a direct replacement for TP-Link SFP-1G-ZX-160KM and is fully tested for compatibility.
