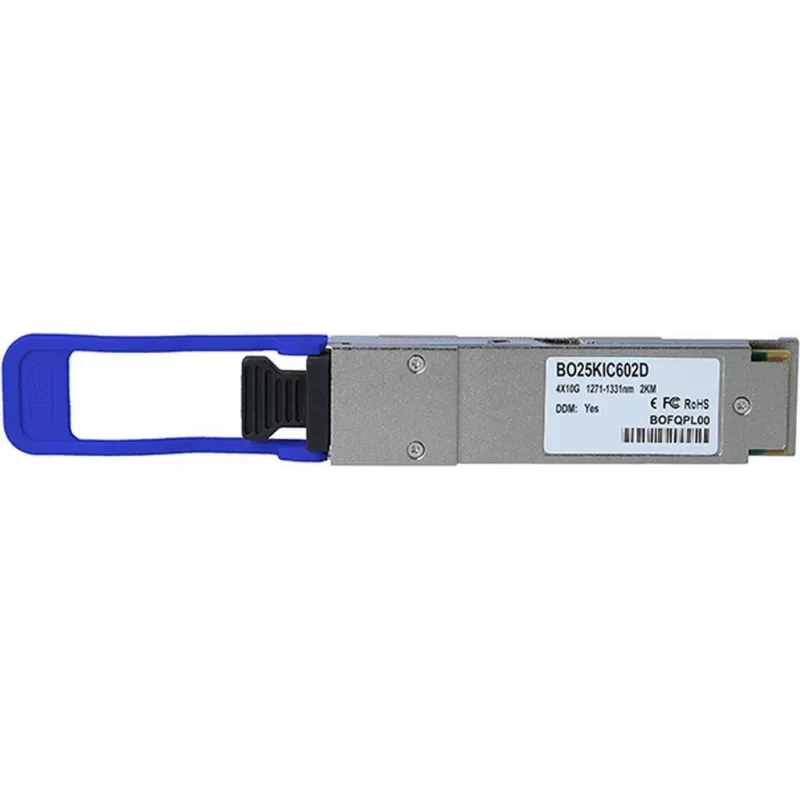

BlueOptics transceptor QSFP 40GBASE-LX4 compatible con Juniper JNP-QSFP-40G-LX4, LC-Duplex, 4xWDM, 160m OM4 / 2km SMF, 0°C a 70°C, DDM JNP-QSFP-40G-LX4-BO

Deliver 40 Gigabit Ethernet over both multimode OM4 and single-mode fiber with this BlueOptics QSFP transceiver. It supports 40GBASE-LX4 with 4xWDM wavelength division multiplexing, reaching 160 meters on OM4 multimode and 2 kilometers on single-mode fiber, all through a single LC-Duplex connector. Operating from 0°C to +70°C, it includes Digital Diagnostic Monitoring for real-time performance tracking.

Overview

Engineered for Juniper JNP-QSFP-40G-LX4 compatibility, this hot-pluggable QSFP module integrates four WDM channels to deliver full 40Gbps throughput. The LC-Duplex interface simplifies cabling compared to MPO solutions, while the wide temperature range supports diverse deployment environments.

What stands out

• 40GBASE-LX4 standard with 4xWDM for efficient fiber utilization
• Dual fiber support: 160m on OM4 multimode, 2km on single-mode
• Digital Diagnostic Monitoring (DDM) for proactive maintenance
• Hot-pluggable design for minimal network disruption
• Operating temperature range from 0°C to +70°C

Technical details

• Transceiver type: QSFP
• Data rate: 40 Gbps
• Connector: LC-Duplex
• Fiber type: OM4 multimode and single-mode
• Maximum reach: 160m (OM4), 2km (SMF)
• Wavelength: 4xWDM
• Operating temperature: 0°C to +70°C
• Digital Diagnostic Monitoring: Yes
• Hot-pluggable: Yes
• Power supply: 3.3V

Our verdict

A versatile 40G transceiver for mixed fiber environments, offering reliable performance and monitoring without vendor lock-in.
