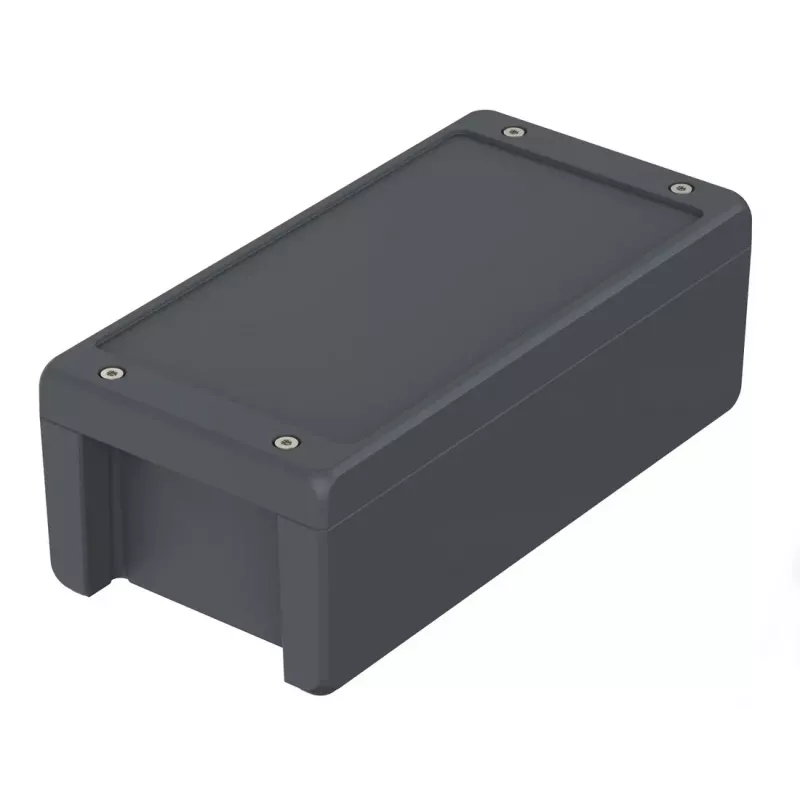

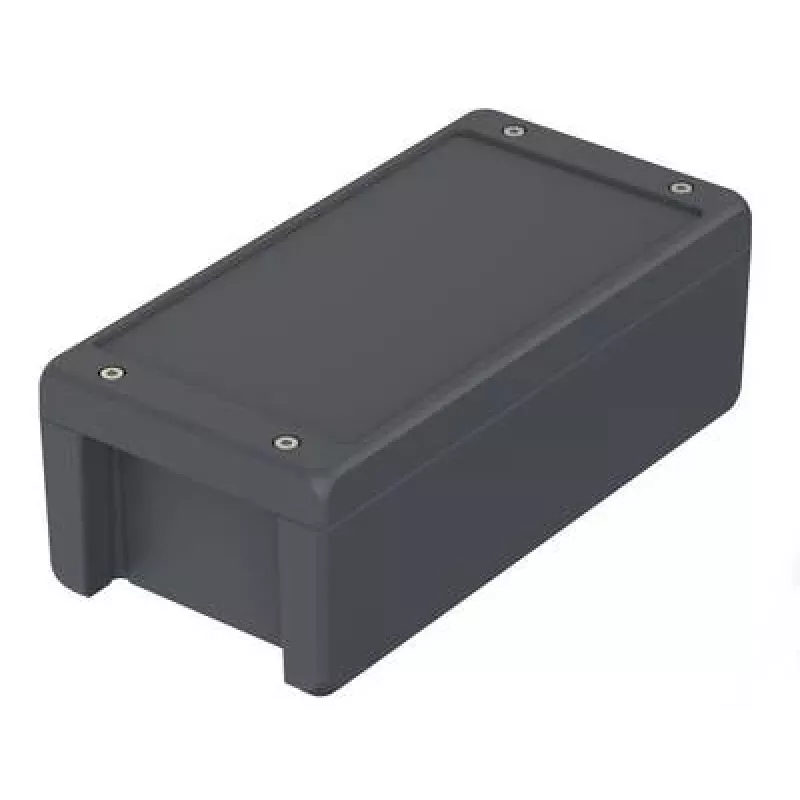

Bopla Bocube Alu BA-S 241309 F Carcasa universal, 259 x 128 x 90 mm, aluminio fundido a presión, Grafito RAL 7024, IP66/IP67 00165234

The Bopla BA-S 241309 F from the Bocube Alu series is a robust die-cast aluminium enclosure designed for demanding industrial applications. Its graphite grey finish (RAL 7024) and integrated hinge with captive lid screws provide a secure and serviceable housing for electronics. With external dimensions of 259 x 128 x 90 mm and an IP66/IP67 protection rating, it offers reliable protection against dust and water ingress.

Highlights

• Die-cast aluminium body and lid for durability and effective heat dissipation
• Integrated hinge and captive stainless steel lid screws for easy access and maintenance
• Recessed lid area suitable for membrane keypads or labels
• Wide operating temperature range from -40 °C to +80 °C
• Versatile mounting options: wall mounting or DIN rail with accessories

In daily use

This enclosure is ideal for housing control electronics, sensors, or communication devices in industrial environments. The silicone gasket ensures a reliable seal, while the graphite grey finish blends into modern machinery. The integrated hinge allows the lid to be opened without complete removal, simplifying field service.

Full specifications

• Product type: Universal Enclosure
• Enclosure series: Bocube Alu
• Material: Die-cast Aluminium
• Colour: Graphite Grey (RAL 7024)
• External dimensions: 259 mm (L) x 128 mm (W) x 90 mm (H)
• Protection class: IP66 / IP67
• Lid material: Die-cast Aluminium
• Base material: Die-cast Aluminium
• Lid screws material: Stainless Steel
• Gasket material: Silicone
• Operating temperature range: -40 °C to +80 °C
• Special features: Integrated hinge, captive lid screws, recessed area for membrane keypads
• Mounting options: Wall mounting, DIN rail mounting (accessories may be required)

Final note

The Bopla Bocube Alu BA-S 241309 F offers a reliable and versatile housing solution for industrial electronics, combining rugged construction with practical features for easy integration and maintenance.
