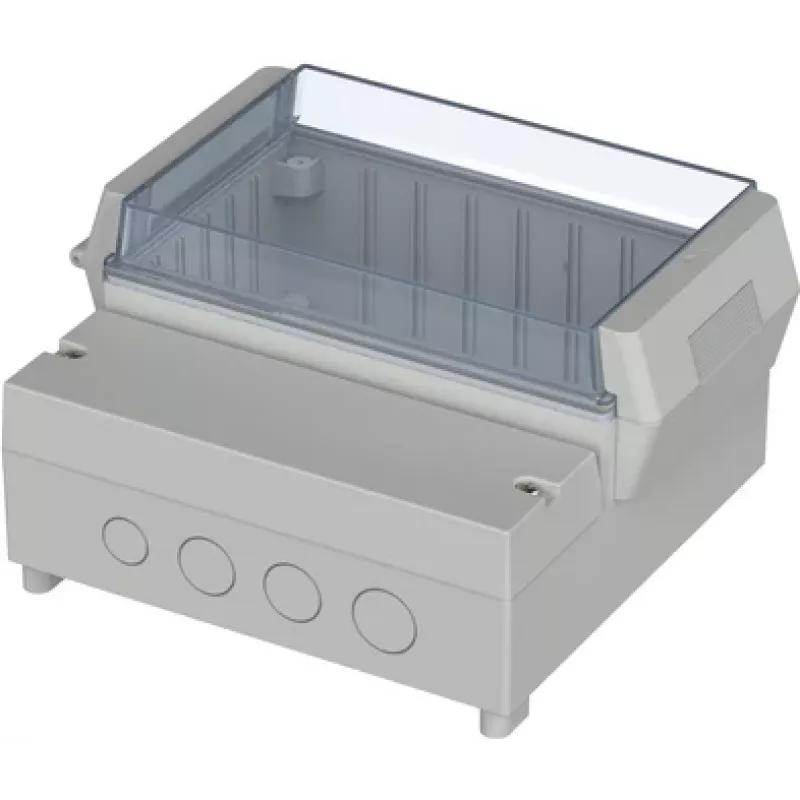

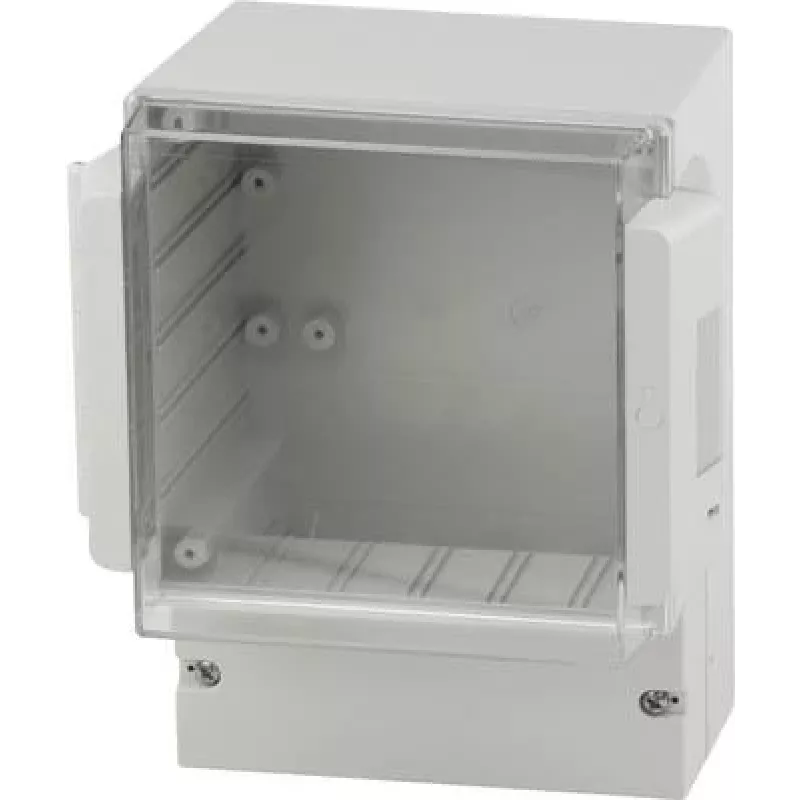

Bopla RCP 1600 carcasa de controlador 166 x 161 x 93 mm gris claro ABS/policarbonato 41160109

For engineers and technicians building control panels, measurement equipment, or medical devices, the Bopla RCP 1600 controller enclosure provides a robust housing with a sloped front for comfortable operation. Its light grey body, made from a blend of ABS and polycarbonate, offers impact resistance and UV stability for long-term use.

Key specifications

• External dimensions: 166 mm (L) x 161 mm (W) x 93 mm (H)
• Material: ABS / Polycarbonate blend
• Colour: Light grey (RAL 7035)
• Protection class: IP40
• Mounting: Desktop or wall-mountable
• Lid fastening: Screw-on
• Internal features: Integrated screw pillars for PCB mounting
• External features: Recessed area for membrane keypads or front panels
• Operating temperature range: -20 °C to +80 °C
• Flammability rating: UL 94 V-0 (polycarbonate)
• Number of components: 2 (base, lid)

Why choose it

The sloped front panel and recessed area make it easy to integrate membrane keypads or custom front panels, while the screw-on lid ensures secure closure. The material blend provides durability and resistance to everyday impacts.

Ideal use cases

• Control systems for industrial automation
• Measurement and testing equipment
• Medical technology devices
• Industrial electronics housings

Good to know

The enclosure is supplied as two components: a base and a lid. It is suitable for applications requiring a compact, ergonomic controller housing.
