Bopla Bocube B 273616 PC-V0-G-7024 carcasa universal, policarbonato, gris grafito, 364 x 284 x 160 mm 96027674

UL 94 V-0 flame-retardant polycarbonate enclosure with IP66/IP67 protection and IK08 impact resistance, sized 364 x 284 x 160 mm (external).

Overview

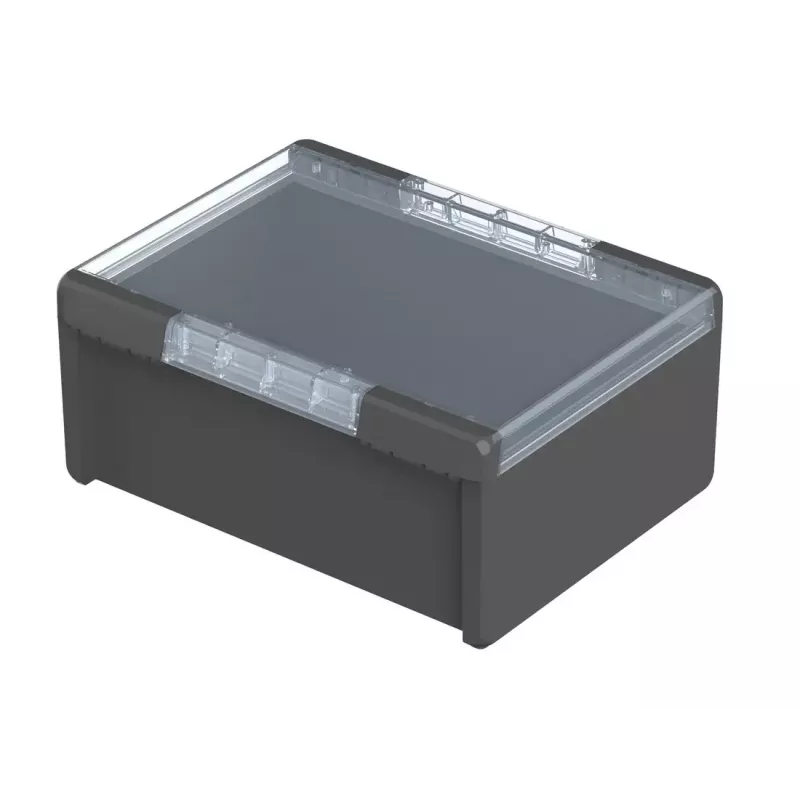

The Bopla Bocube B 273616 is a universal enclosure engineered for demanding industrial and outdoor applications. Constructed from graphite grey (RAL 7024) polycarbonate, it combines high impact resistance with flame retardancy, ensuring reliable protection for sensitive electronics.

What stands out

• Flame-retardant material rated UL 94 V-0 for enhanced safety.
• High ingress protection: IP66 and IP67, suitable for harsh environments.
• Impact resistance rated IK08, providing durability against mechanical stress.
• Hinged lid with quick-release fasteners for easy access and maintenance.
• Silicone gasket ensures a reliable seal against dust and moisture.
• Wide operating temperature range: -35 °C to +80 °C.

Technical details

• External dimensions: 364 mm (L) x 284 mm (W) x 160 mm (H).
• Internal dimensions: 352.8 mm (L) x 232.4 mm (W) x 149 mm (H).
• Material: Polycarbonate (PC).
• Colour: Graphite grey (RAL 7024).
• Mounting: Wall/surface mounting.

Our verdict

A robust and versatile enclosure that meets stringent safety and protection standards, ideal for industrial control systems, outdoor electronics, and automation equipment.
