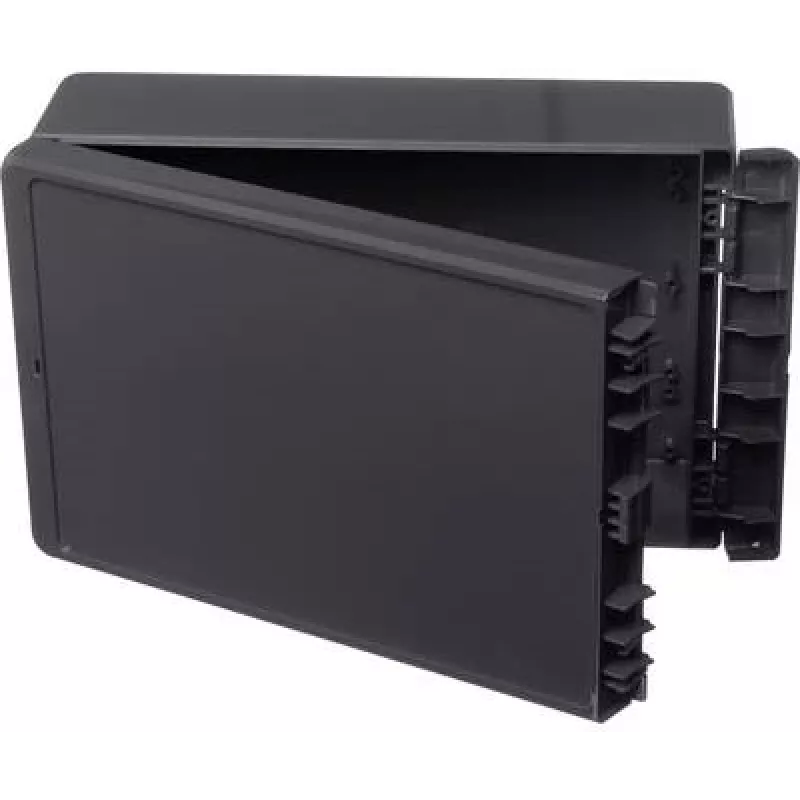

BOPLA Bocube carcasa de pared, policarbonato, gris grafito (RAL 7024), 271 x 170 x 90 mm, IP66/IP67, IK08 96016334

Protecting sensitive electronics in harsh industrial environments demands an enclosure that can withstand moisture, dust, and mechanical impact. The BOPLA Bocube wall-mounted enclosure in graphite grey (RAL 7024) provides a robust housing solution for control systems, IoT devices, and automation components. Made from high-quality polycarbonate, this enclosure offers excellent durability and resistance to environmental stressors.

Who is it for

This enclosure is ideal for system integrators, panel builders, and OEMs who need a reliable, IP66/IP67-rated housing for electronics in factory automation, outdoor installations, or washdown areas. Its compact size and integrated mounting features make it suitable for a wide range of applications, from sensor housings to small control units.

Main features

• High-impact polycarbonate construction with graphite grey finish (RAL 7024)
• Protection class IP66/IP67: dust-tight and protected against powerful water jets and temporary immersion
• Impact resistance IK08: withstands 5 joules of impact energy
• Quick-release stainless steel lid fasteners (1.4567) for tool-free access
• Integrated hinges and recessed lid area for membrane keypads or front foils
• Internal mounting bosses for PCBs or mounting plates
• PUR gasket ensures reliable sealing
• Flammability rating UL 94 V-0
• Wide operating temperature range: -35 °C to +80 °C

Specifications

• External dimensions (W x H x D): 271 x 170 x 90 mm
• Material: Polycarbonate
• Colour: Graphite grey (RAL 7024)
• Lid fasteners: 4 quick-release, stainless steel (1.4567)
• Gasket material: PUR (polyurethane)
• Mounting: Wall mounting via integrated channels or optional brackets

Tips

For outdoor applications, ensure that cable glands and connectors also meet the required IP rating to maintain the enclosure's integrity. The recessed lid area is perfect for custom labelling or integrating a membrane keypad for user interface.
