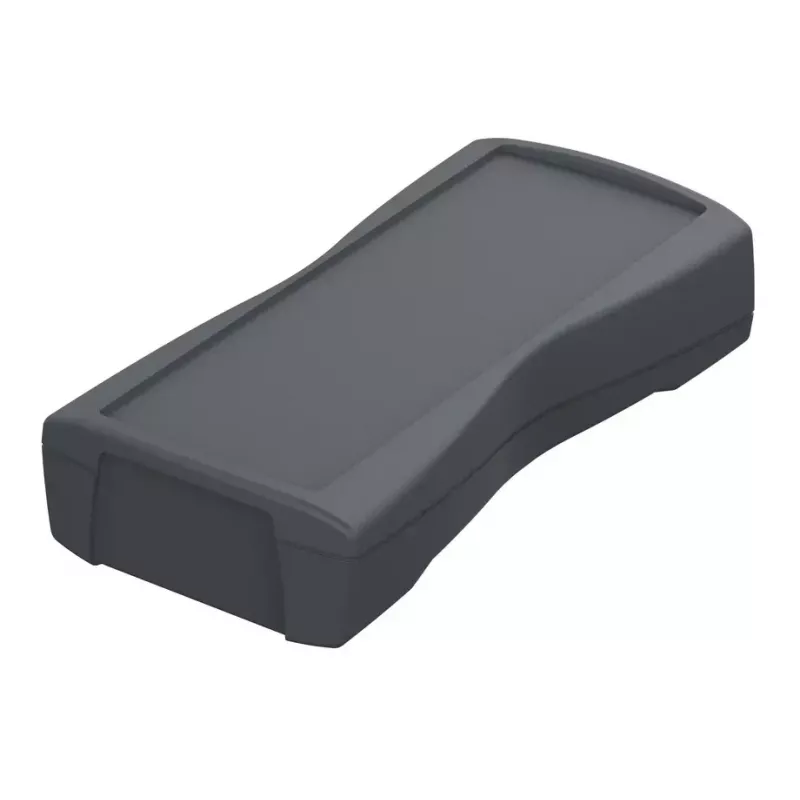

Bopla BoPad carcasa de mano 159,4 x 77,9 x 33,5 mm grafito ABS IP40 82600124

Portable electronic devices need a housing that protects internal components while offering a comfortable grip and space for controls. The Bopla BoPad handheld enclosure provides an ergonomic shell in graphite grey ABS, sized 159.4 x 77.9 x 33.5 mm, with a recessed area for membrane keypads or displays.

Who is it for

Engineers and product developers building handheld instruments, remote controls, or measurement equipment will appreciate the ready-to-use design that reduces mechanical engineering time.

Main features

• Ergonomic handheld shape with matt textured surface for secure grip
• Recessed top area accommodates membrane keypads or small displays
• Two-part enclosure with screw-on lid and four self-tapping screws included
• Internal PCB mounting bosses for easy board fixation
• ABS plastic, graphite grey, flammability rating UL 94 V-0
• IP40 protection against solid objects over 1 mm

Specifications

• External dimensions: 159.4 mm length, 77.9 mm width, 33.5 mm height
• Material: ABS plastic
• Colour: Graphite grey
• Series: BoPad
• Operating temperature range: -20 °C to +80 °C
• RoHS compliance: Yes

Tips

Pair this enclosure with a custom membrane keypad and a PCB designed to fit the internal bosses for a complete handheld device. The screw-on lid allows easy access during prototyping and field servicing.
