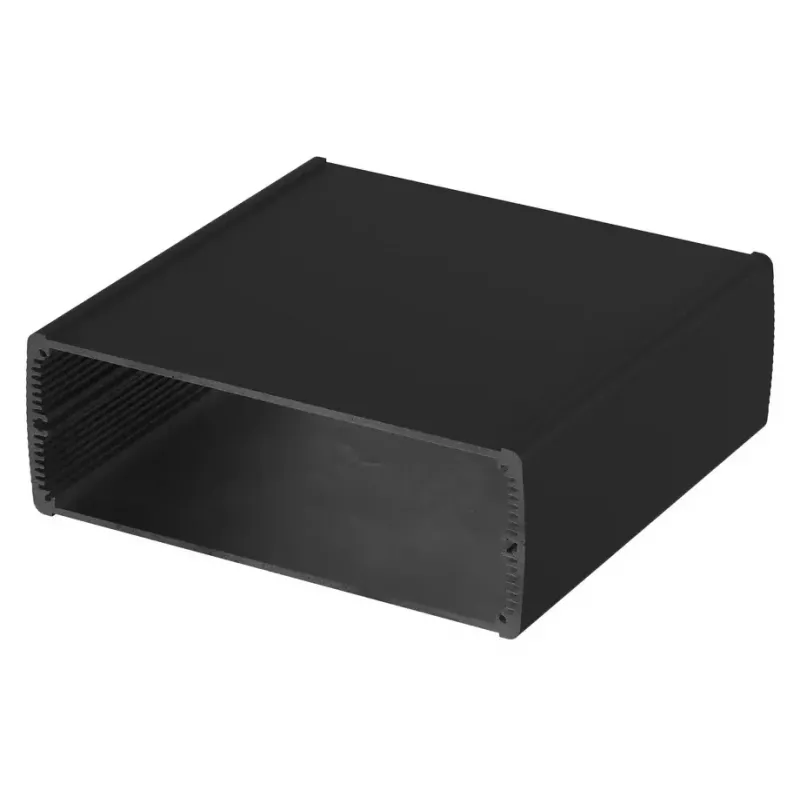

Bopla caja universal 200 x 210 x 74 mm aluminio negro ABP 2070-200 84207200.MT1

Industrial and electronic applications often require a robust housing that protects sensitive components from harsh environments while offering flexibility for internal mounting. The Bopla Universal Enclosure ABP 2070-200 provides a durable aluminium solution with generous internal space and reliable sealing.

Who is it for

This enclosure is suited for engineers and technicians building control units, measurement devices, or interface boxes that need protection against dust and water ingress. Its aluminium construction and wide temperature tolerance make it appropriate for both indoor and outdoor installations.

Main features

• External dimensions: 200 mm width, 210 mm depth, 74 mm height
• Material: Aluminium, powder-coated black
• Lid fastening with stainless steel screws
• Neoprene gasket for sealing
• Internal mounting bosses for PCBs or plates
• Operating temperature range: -40 °C to +90 °C

Tips

When assembling, ensure the neoprene gasket is seated evenly before tightening the stainless steel screws to maintain the enclosure's sealing performance. For custom cutouts or additional machining, aluminium allows for precise modifications without compromising structural integrity.
