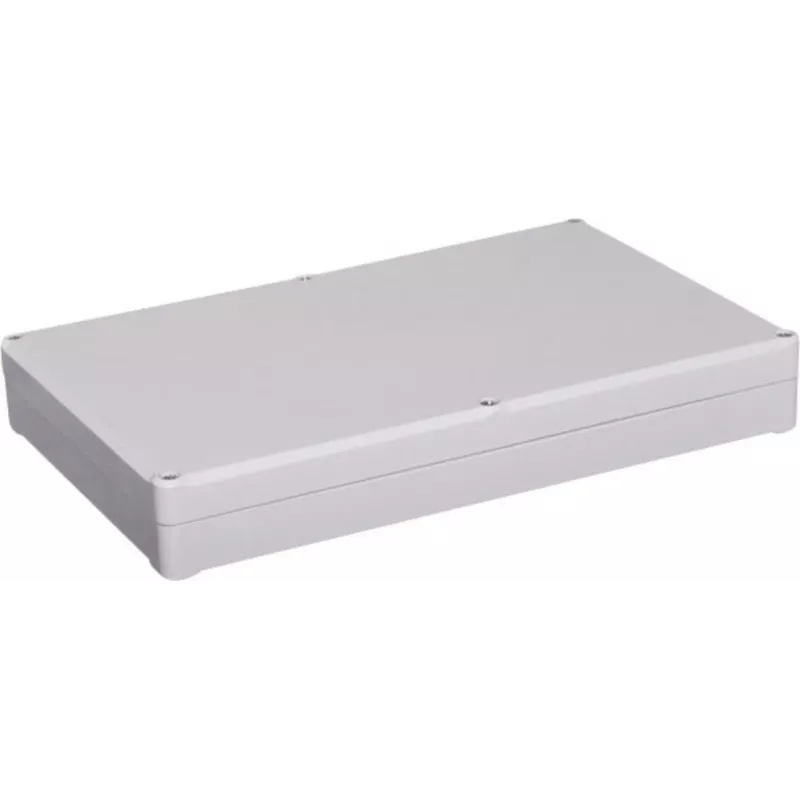

Bopla Caja universal 250 x 160 x 37 mm ABS gris claro (RAL 7035) ET 233 63233000

Electronic projects need a robust, professional housing that protects components while keeping them accessible. The Bopla Universal Enclosure ET 233 provides a spacious, light grey ABS shell for mounting PCBs and control systems in industrial, DIY, and electronics applications.

Who is it for

Engineers, technicians, and hobbyists who require a reliable enclosure for custom electronics, control units, or interface panels. Its generous internal space and mounting bosses make it suitable for prototyping and small-series production.

Main features

• External dimensions: 250 x 160 x 37 mm (L x W x H)
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light grey, RAL 7035
• IP 40 protection rating
• Operating temperature range: -40 to +80 °C
• Flammability rating: UL 94 HB
• Lid fastened with screws
• Internal mounting bosses for PCBs

Specifications

• Product type: Universal enclosure
• Series: ET
• Number of components: 1 (enclosure body + lid)
• Application area: Electronics, industrial, DIY, control systems

Tips

Use the mounting bosses to secure your PCB at the desired height. For enhanced sealing, consider adding a gasket or using a higher IP-rated enclosure if the environment demands it.
