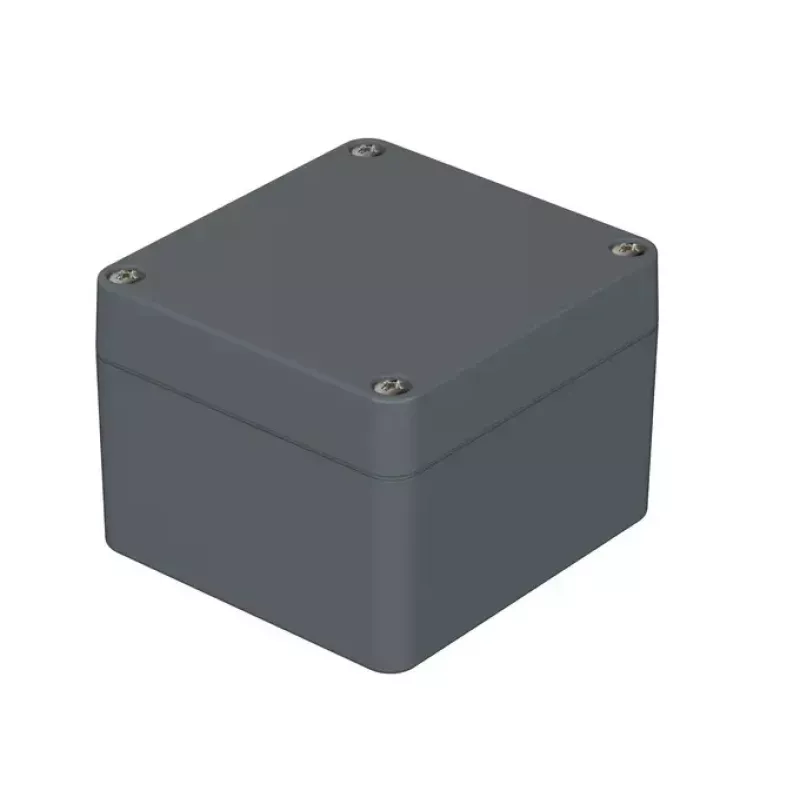

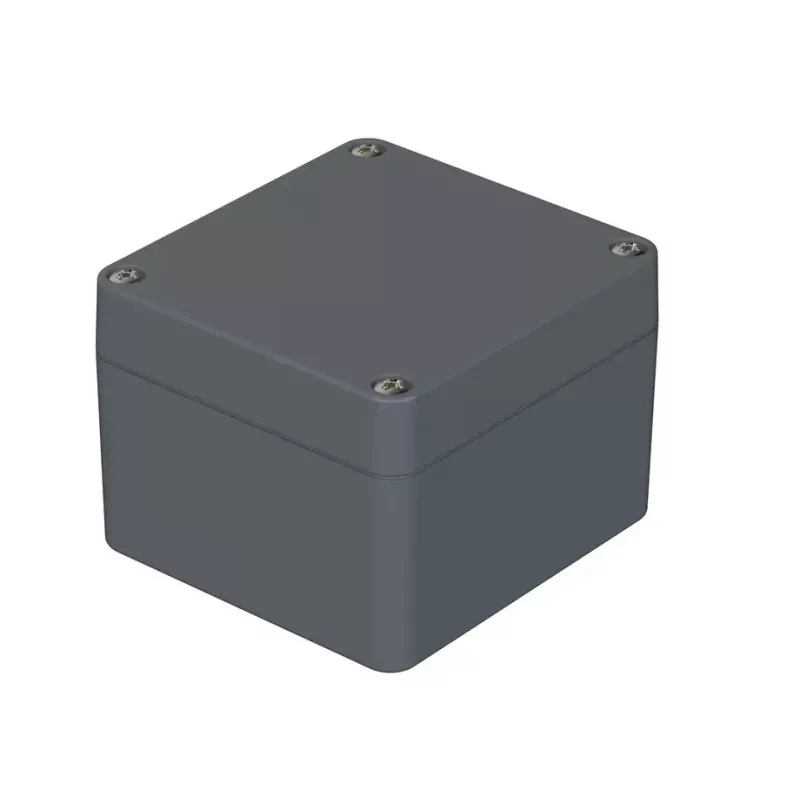

Bopla Caja universal 75 x 80 x 57 poliamida gris plata (RAL 7001) PK 105, 1 ud. 38105000

Protect sensitive electronics from dust, moisture, and mechanical impact with this robust universal enclosure. The Bopla PK 105 enclosure provides a secure housing for industrial controls, junction boxes, and electronic assemblies in demanding environments.

Who is it for

Engineers, panel builders, and maintenance technicians who need a reliable, IP65-rated enclosure for indoor or outdoor applications. Ideal for housing PCBs, terminals, and small control components.

Main features

• Durable polyamide (PA 6) body in silver grey (RAL 7001)
• Compact dimensions: 75 mm length x 80 mm width x 57 mm height
• High protection class IP65 against dust and water jets
• Impact resistance IK08 for mechanical robustness
• Wide operating temperature range: -40 °C to +80 °C
• Polyurethane (PUR) gasket for reliable sealing
• Stainless steel lid screws for corrosion resistance
• Flammability rating UL 94 V-2
• Wall or surface mountable

Specifications

• Series: PK
• Material: Polyamide (PA 6)
• Colour: Silver grey (RAL 7001)
• External dimensions: 75 x 80 x 57 mm
• Protection class: IP65
• Impact resistance: IK08
• Operating temperature: -40 °C to +80 °C
• Gasket material: Polyurethane (PUR)
• Lid screw material: Stainless steel
• Flammability rating: UL 94 V-2
• Mounting type: Wall/surface

Tips

Pair with a compatible cable gland or pressure compensation element to maintain the IP65 rating when routing cables. Ensure the mounting surface is flat and clean for optimal sealing.
