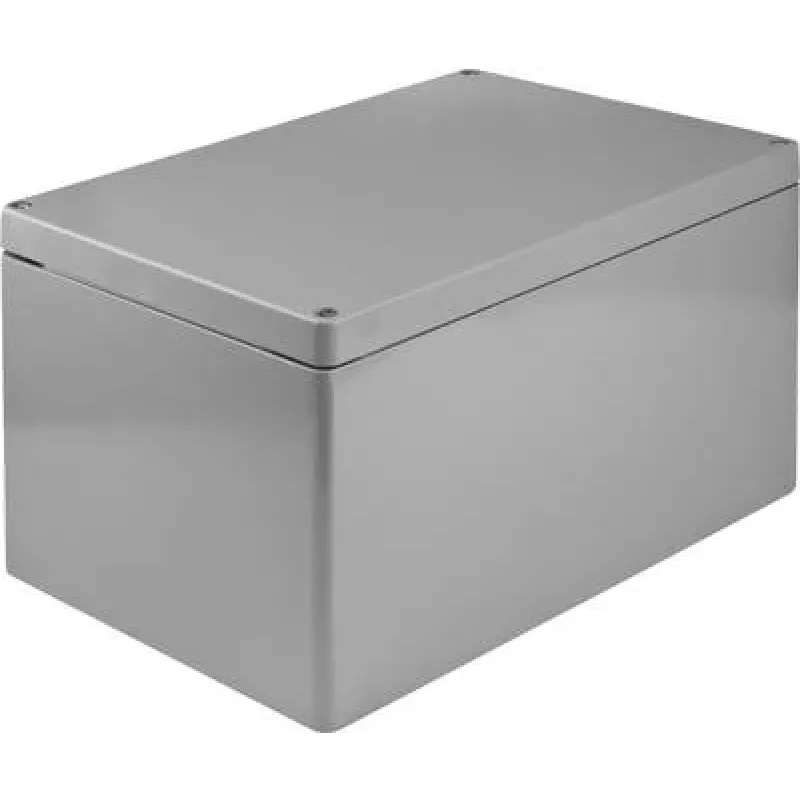

Bopla Carcasa universal 330 x 230 x 181 mm aluminio gris plata (RAL 7001) A 165 01165000.H

This Bopla universal enclosure offers a spacious 330 x 230 x 181 mm interior, crafted from powder-coated aluminium in silver-grey (RAL 7001) for durable protection of industrial electronics.

Overview

The Bopla A 165 enclosure is designed for demanding applications, combining a robust AlSi 12 aluminium body with an IP 66 / IP 67 protection rating and IK08 impact resistance. Its solid lid is secured with captive stainless steel screws and sealed with a neoprene gasket, ensuring reliable protection against dust, water, and mechanical stress.

What stands out

• High protection: IP 66 / IP 67 and IK08 for harsh environments
• Durable construction: powder-coated aluminium (AlSi 12) with stainless steel lid screws
• Wide temperature range: -40 °C to +100 °C for versatile use
• Integrated mounting bosses for easy internal installation

Technical details

• External dimensions: 330 mm (L) x 230 mm (W) x 181 mm (H)
• Material: Aluminium, alloy AlSi 12, powder-coated
• Colour: Silver-grey, RAL 7001
• Lid: Solid, secured with captive stainless steel screws
• Gasket: Neoprene
• Series: Bopla Alu-Gehäuse A

Our verdict

A reliable, high-protection enclosure for industrial and electronic applications where durability and sealing are critical.
