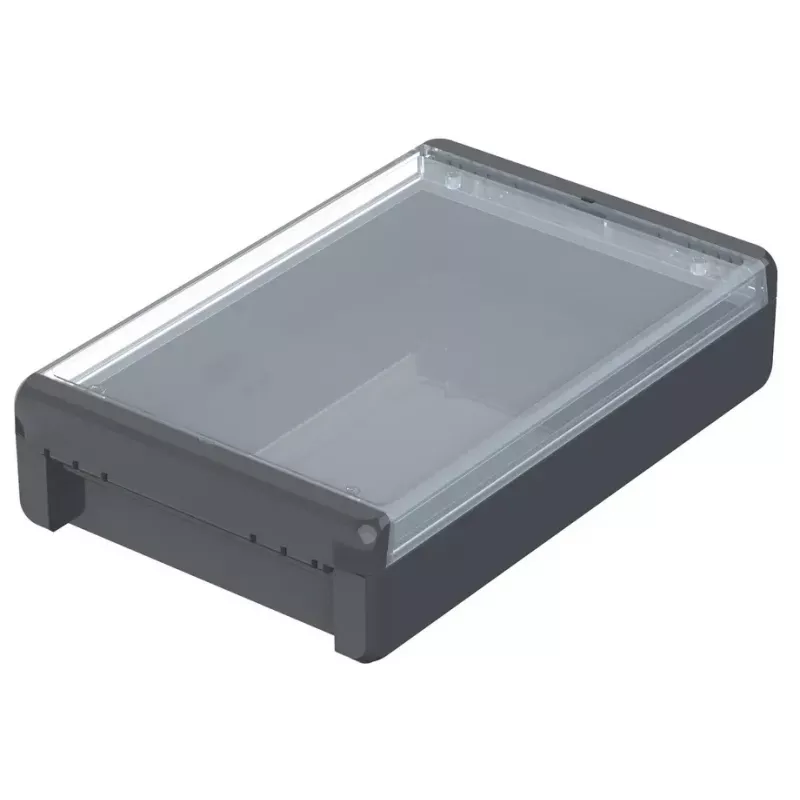

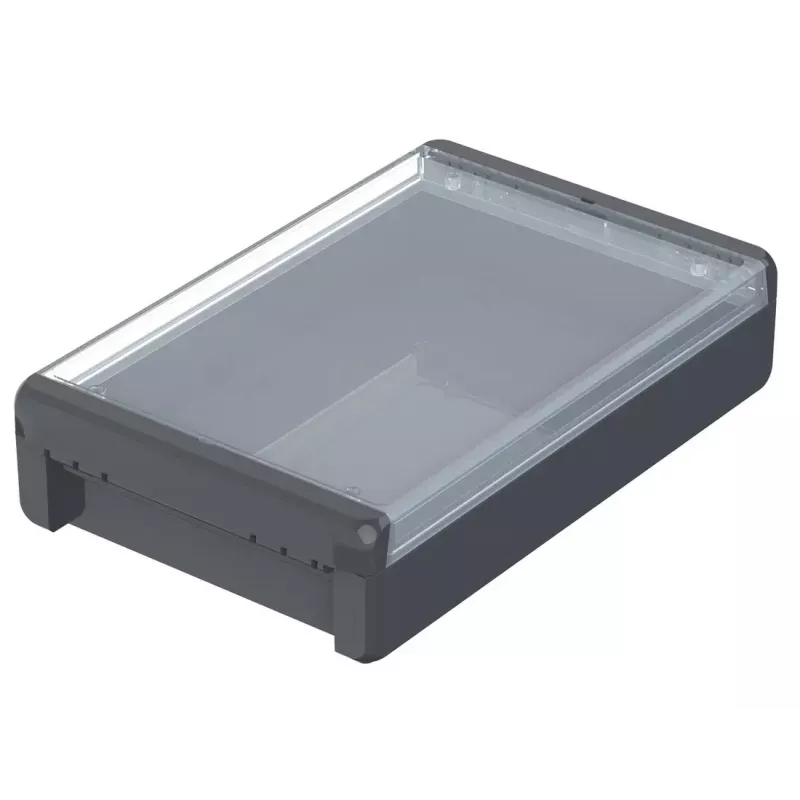

BOPLA CombiNorm-Connect Carcasa de pared, policarbonato, gris grafito RAL 7024, 60 x 170 x 271 mm 96026324

Wall-mount enclosure made of polycarbonate in graphite grey (RAL 7024), external dimensions 60 x 170 x 271 mm. The enclosure offers protection class IP65 and impact resistance IK08, making it suitable for demanding industrial environments.

Advantages

Halogen-free polycarbonate with UL 94 V-0 flammability rating. Lid fastened with 4 stainless steel screws and sealed with a polyurethane gasket. Internal mounting bosses allow direct installation of PCBs or mounting plates.

Suitable for

• Industrial control and automation systems
• Outdoor and harsh environment installations
• Electronics requiring high impact and ingress protection

Key specifications

• Material: Polycarbonate (PC)
• Colour: Graphite grey (RAL 7024)
• External dimensions: 60 x 170 x 271 mm
• Protection class: IP65
• Impact resistance: IK08
• Flammability rating: UL 94 V-0
• Operating temperature: -40 to +80 °C
• Lid fastening: 4x stainless steel screws
• Gasket material: Polyurethane (PUR)
• Halogen-free: Yes
• RoHS compliant: Yes

Recommendations

Verify internal dimensions and mounting boss layout before PCB design. For outdoor use, consider additional UV protection if prolonged sunlight exposure is expected.
