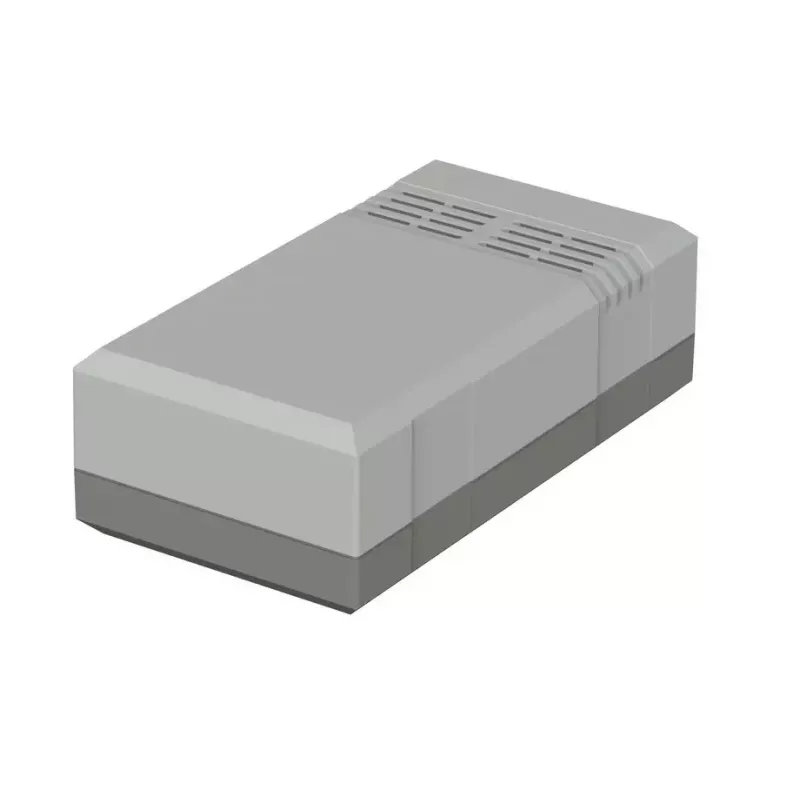

Bopla EG 1240 L carcasa de sobremesa, 125 x 67 x 40 mm, poliestireno, gris claro RAL 7035 32124012

Protecting sensitive electronics on a workbench or in a control cabinet requires a housing that fits the board precisely and withstands daily handling. The Bopla EG 1240 L desktop enclosure offers a compact, screw-together shell in light grey polystyrene, sized for small controllers, sensors, or interface modules.

Who is it for

Engineers and technicians building custom electronics, IoT prototypes, or small industrial controls who need a reliable, off-the-shelf enclosure with a clean look and easy access for wiring and mounting.

Main features

• External dimensions: 125 mm length, 67 mm width, 40 mm height
• Internal space: 121 x 63 x 36 mm for PCB and components
• Material: Polystyrene (PS), light grey, RAL 7035
• Two-part design with screw-on lid for secure closure
• Recessed area on lid for membrane keypads or front panels
• Free-standing desktop mounting, no additional hardware needed

Specifications

• Enclosure type: Desktop enclosure
• Material: Polystyrene (PS)
• Colour: Light grey (RAL 7035)
• External dimensions (L x W x H): 125 x 67 x 40 mm
• Internal dimensions (L x W x H): 121 x 63 x 36 mm
• Protection rating: IP40
• Flammability rating: UL 94 HB
• Operating temperature: -20 to +80 °C
• Lid fastening: Screw-on
• Number of parts: 2 (base and lid)
• Mounting type: Free-standing / desktop
• Special features: Recessed area for membrane keypads/front panels
• RoHS compliant: Yes
• Screw material: Steel
• Series: EG Series

Tips

When selecting a membrane keypad or front panel, use the recessed area dimensions from the manufacturer's drawing to ensure a flush fit. The polystyrene material is easy to machine for custom cutouts, but avoid solvents that may attack PS.
