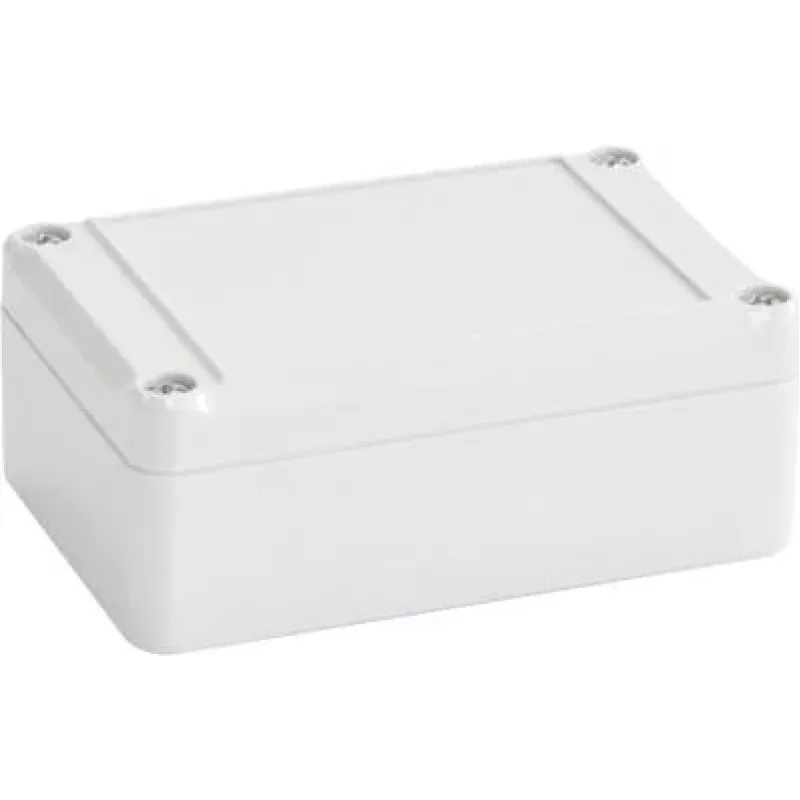

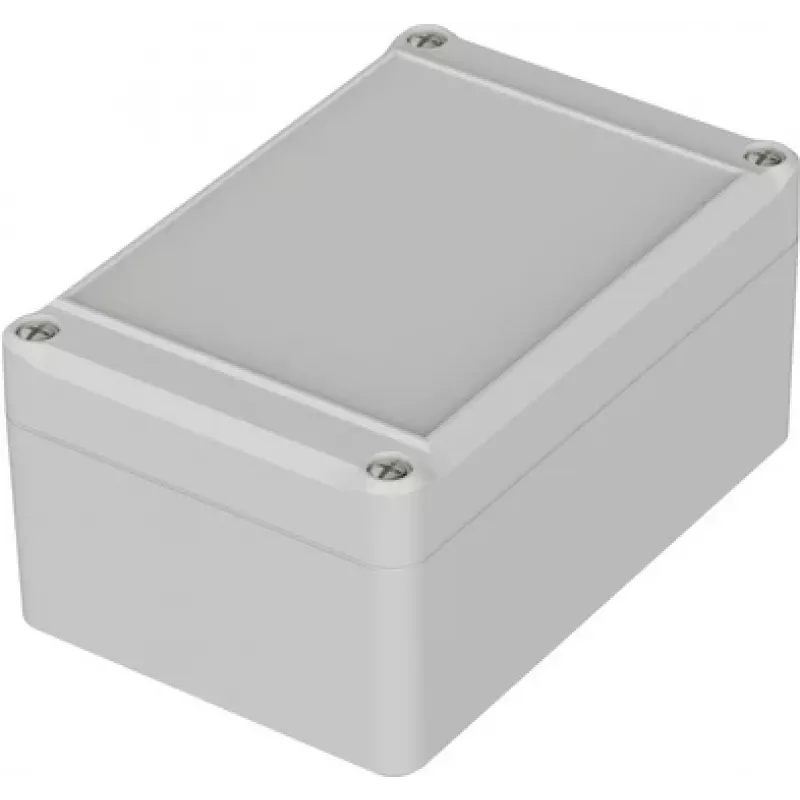

Bopla EUROMAS EM 215 F carcasa universal 120 x 80 x 57 mm policarbonato gris claro 62215200

Electronic components need a housing that protects them from dust, moisture and mechanical impact while remaining easy to open for maintenance. The Bopla EUROMAS EM 215 F universal enclosure provides a robust, light grey polycarbonate shell with a captive stainless steel lid screws, making it suitable for industrial and outdoor applications where reliability matters.

Who is it for

This enclosure is intended for engineers, system integrators and OEMs who need a durable, medium-sized housing for control electronics, sensors, or interface modules in harsh environments. It fits wall-mounted installations and offers a clean, professional look.

Main features

• External dimensions: 120 mm length, 80 mm width, 57 mm height
• Material: polycarbonate (PC), light grey (RAL 7035)
• Protection class IP65: dust-tight and protected against water jets
• Impact resistance IK07
• Captive stainless steel lid screws (M3.5)
• Polyurethane (PUR) gasket for reliable sealing
• Operating temperature range: -40 °C to +80 °C
• Flammability rating UL 94 V-2
• UV resistant and halogen-free
• Wall mounting possible via screw channels

Specifications

• Enclosure type: Universal enclosure
• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• External length: 120 mm
• External width: 80 mm
• External height: 57 mm
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-2
• Operating temperature: -40 °C to +80 °C
• Gasket material: Polyurethane (PUR)
• Lid screws: Stainless steel, captive (M3.5)
• Mounting type: Wall mounting possible
• UV resistance: Yes
• Halogen-free: Yes
• RoHS compliant: Yes

Tips

When selecting a cable gland or connector, ensure it matches the enclosure's wall thickness and maintains the IP65 rating. Use the screw channels for secure wall mounting in outdoor locations.
