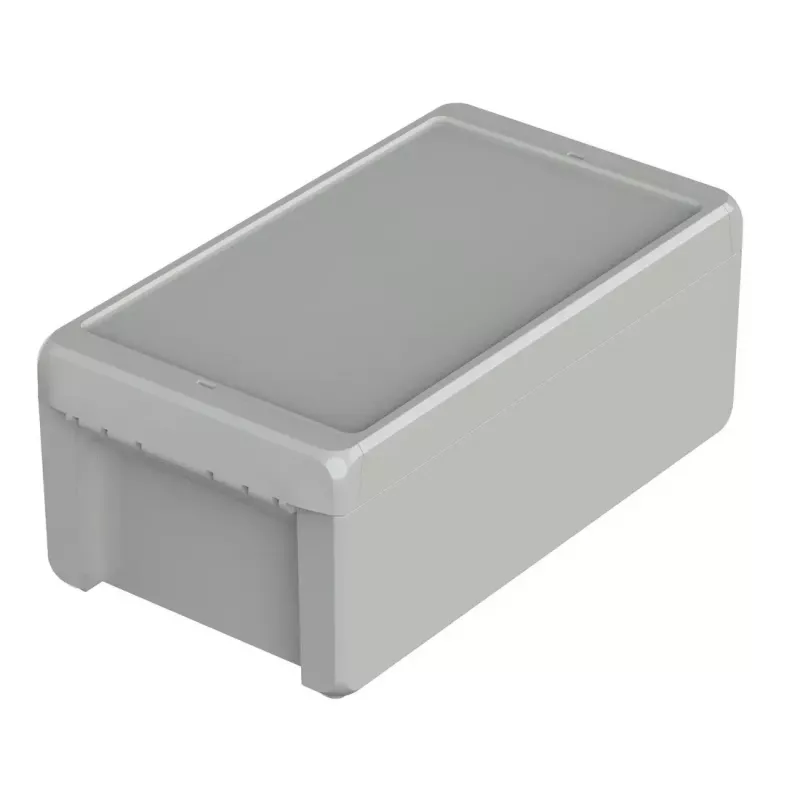

BOPLA Euromas II Carcasa de pared, ABS, gris claro RAL 7035, 125 x 231 x 90 mm, IP65 96035235

Protect electrical and electronic installations from dust, moisture, and mechanical impact with this robust wall-mount enclosure. The BOPLA Euromas II enclosure provides a secure housing for junction boxes, control units, and industrial electronics in demanding environments.

Who is it for

Electrical installers, panel builders, and maintenance technicians who need a reliable, IP65-rated enclosure for wall mounting in industrial or outdoor applications. Ideal for housing PCBs, terminal blocks, and small control systems.

Main features

• Durable ABS construction in light grey (RAL 7035) for a clean, professional appearance.
• IP65 protection against dust and water jets, suitable for harsh conditions.
• IK07 impact resistance for added mechanical durability.
• External dimensions: 125 mm width x 231 mm height x 90 mm depth.
• Stainless steel lid screws and PU gasket ensure a secure, sealed closure.
• Internal mounting bosses for PCBs or mounting plates.
• Halogen-free material for safer disposal and reduced toxic emissions.

Specifications

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light Grey (RAL 7035)
• External dimensions: 125 x 231 x 90 mm
• Mounting type: Wall mount
• IP rating: IP65
• IK rating: IK07
• Flammability rating: UL94 HB
• Operating temperature: -40°C to +70°C
• Series: Euromas II
• Lid fastening: Stainless steel screws
• Gasket material: Polyurethane (PU)

Tips

For prolonged outdoor exposure, consider additional UV protection or a cover, as standard ABS has limited UV resistance. Ensure the mounting surface is flat and use appropriate wall anchors for the enclosure's weight.
