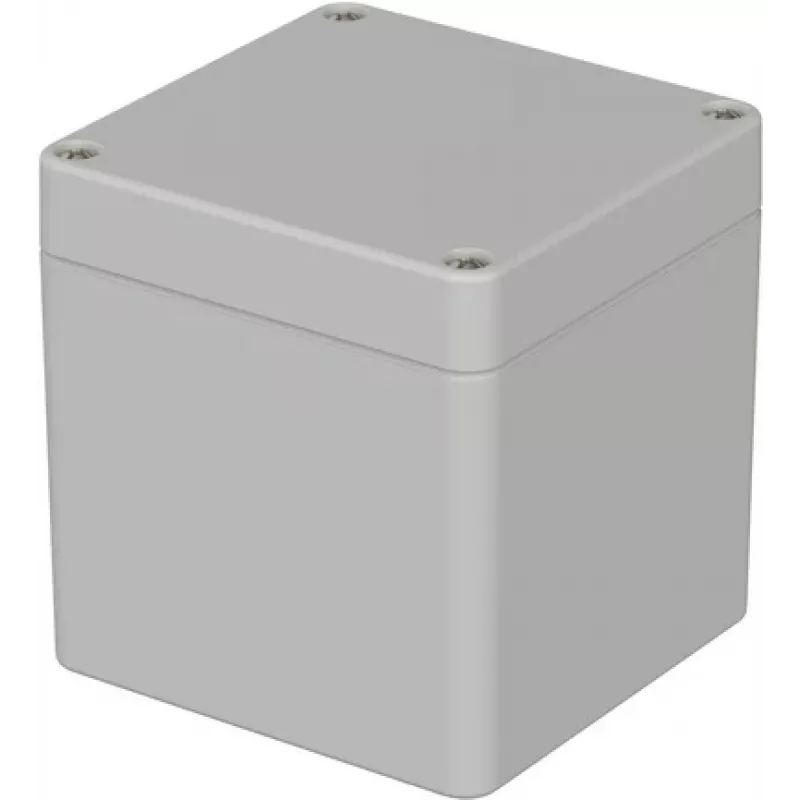

Bopla EUROMAS M 225 carcasa universal 82 x 80 x 85 mm policarbonato gris claro IP65 02225000

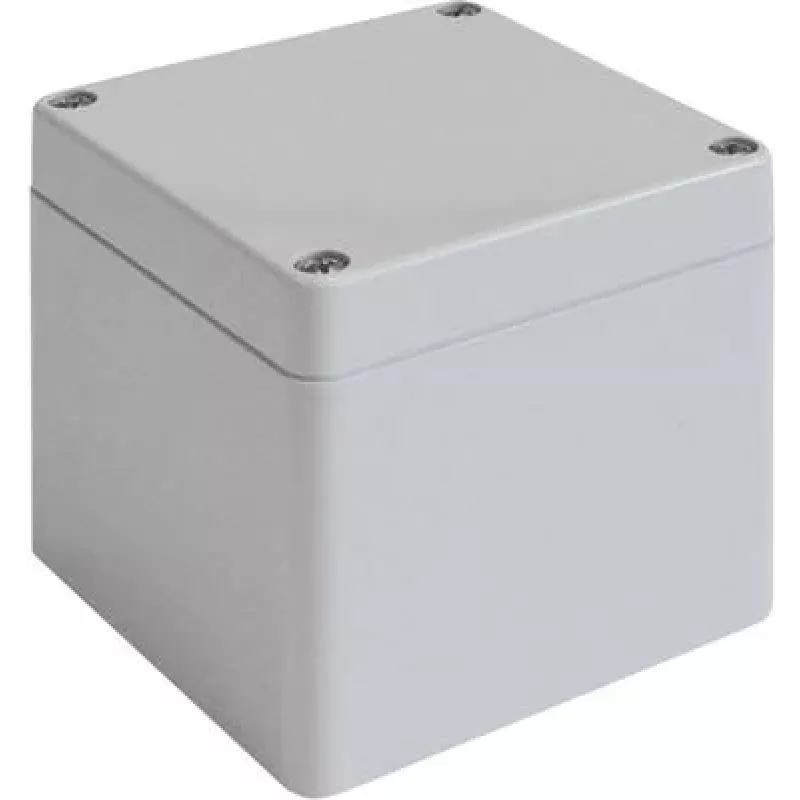

This universal enclosure from Bopla's EUROMAS series offers a robust housing solution for electronic components, featuring a light grey polycarbonate body that combines impact resistance with a clean industrial look. With external dimensions of 82 x 80 x 85 mm, it provides a compact yet versatile space for mounting PCBs or other hardware.

Advantages

The polycarbonate material delivers high impact resistance (IK07) and good UV stability, making it suitable for both indoor and outdoor applications. The enclosure is rated IP65, ensuring protection against dust and water jets. Integrated mounting channels allow for easy installation, while four stainless steel lid screws provide secure closure. The polyurethane gasket ensures a reliable seal, and the material is halogen-free with good chemical resistance to oils, greases, and alcohols.

Suitable for

• Industrial control units
• Sensor housings
• Junction boxes
• Outdoor electronics requiring weather protection

Key specifications

• External dimensions: 82 x 80 x 85 mm (L x W x H)
• Material: Polycarbonate (PC), light grey (RAL 7035)
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-2
• Operating temperature: -40°C to +80°C
• Gasket material: Polyurethane (PUR)
• Lid fastening: 4x stainless steel screws
• Mounting: Integrated mounting channels, bosses for PCBs/plates

Recommendations

For reliable protection of electronics in demanding environments, the Bopla EUROMAS M 225 offers a proven solution with its durable polycarbonate construction and IP65 sealing. Its compact size and integrated mounting features make it a practical choice for a wide range of industrial applications.
