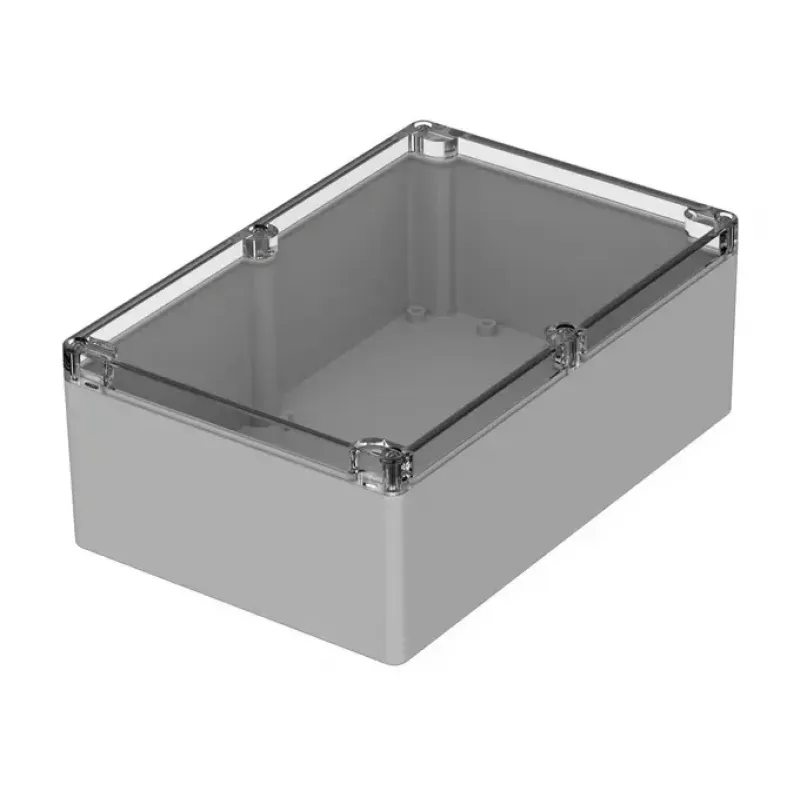

Bopla EUROMAS M 2401 G carcasa universal 240 x 160 x 90 mm policarbonato gris claro 02240300

The EUROMAS M 2401 G from Bopla is a universal enclosure that combines a spacious 240 x 160 x 90 mm footprint with the durability of UV-stabilized polycarbonate. Its light grey housing (RAL 7035) offers high mechanical strength and chemical resistance, making it suitable for demanding industrial environments.

Highlights

• External dimensions: 240 x 160 x 90 mm
• Material: Polycarbonate (PC), light grey (RAL 7035)
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-2
• Operating temperature range: -40°C to +80°C
• Lid fastening: 4x stainless steel screws
• Gasket material: Polyurethane (PU) foam
• Mounting: External mounting channels
• UV resistance: Yes (UV stabilized)
• Halogen-free: Yes
• RoHS compliant: Yes
• Internal mounting: Mounting bosses for DIN rails or mounting plates
• Wall thickness: Approx. 3 mm

In daily use

This enclosure provides a reliable housing for electrical and electronic components. The polycarbonate material withstands mechanical stress and a wide temperature range, while the PU foam gasket ensures a secure seal against dust and water. External mounting channels allow flexible installation on walls or panels.

Full specifications

• Enclosure type: Universal enclosure
• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• External dimensions (L x W x H): 240 x 160 x 90 mm
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-2
• Operating temperature range: -40°C to +80°C
• Lid fastening: 4x stainless steel screws
• Gasket material: Polyurethane (PU) foam
• Mounting type: External mounting channels
• UV resistance: Yes (UV stabilized)
• Halogen-free: Yes
• RoHS compliant: Yes
• Internal mounting: Mounting bosses for DIN rails or mounting plates
• Wall thickness: Approx. 3 mm

Final note

The EUROMAS M 2401 G offers a robust and versatile solution for housing electronic components in harsh conditions, backed by Bopla's engineering expertise.
