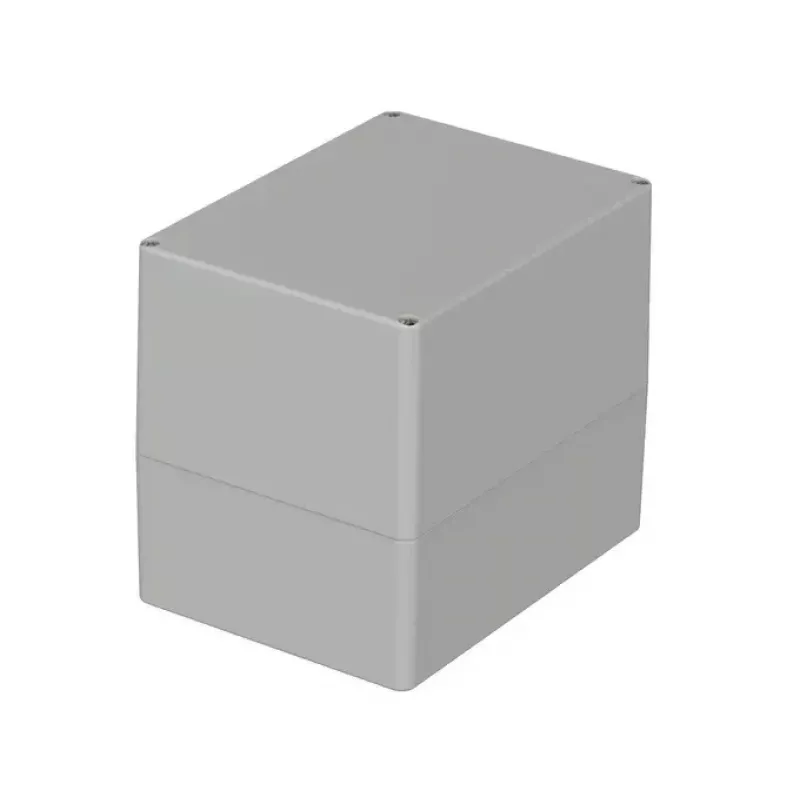

Bopla EUROMAS M 246 carcasa universal 160 x 120 x 140 mm policarbonato gris claro 02246000

For control and automation engineers, the Bopla EUROMAS M 246 offers a robust housing for electronics in industrial environments. Its polycarbonate construction and light grey finish suit applications from machine control to junction boxes.

Key specifications

• External dimensions: 160 mm length, 120 mm width, 140 mm height
• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• Protection class: IP65
• Impact resistance: IK07
• Operating temperature: -40 °C to +80 °C
• Flammability rating: UL 94 V-2
• Lid fastening: 4x stainless steel screws
• Gasket material: Polyurethane (PU) foam
• Mounting options: Internal mounting bosses, wall mounting

Why choose it

The EUROMAS M series is known for its durability and ease of assembly. The polycarbonate material provides good UV resistance and is halogen-free, making it suitable for demanding indoor and outdoor applications.

Ideal use cases

• Industrial control units
• Sensor and actuator housings
• Electrical junction boxes
• Machine building and automation

Good to know

The enclosure comes with a polyurethane foam gasket pre-installed, ensuring a reliable seal. Four stainless steel screws secure the lid, allowing repeated access without compromising protection.
