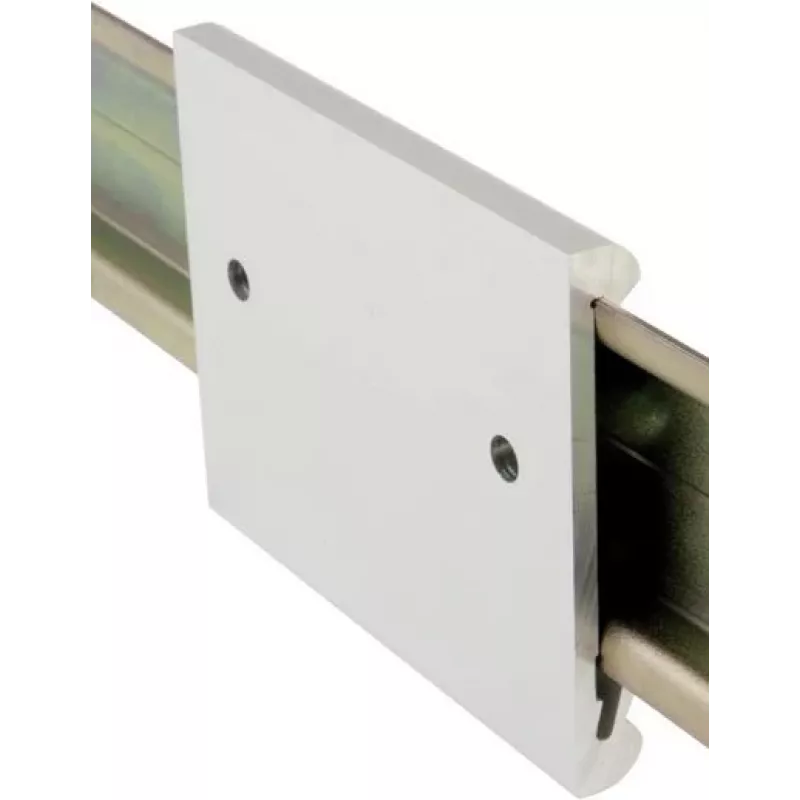

Bopla TSH 35 AL - 50 base de montaje para carril DIN, aluminio, 52 x 50 x 7,2 mm 34035050

Mounting electronic components onto a DIN rail often requires a reliable, sturdy base that can withstand industrial environments. The Bopla TSH 35 AL - 50 is an aluminum mounting base designed to provide a solid foundation for your devices on a standard 35 mm DIN rail.

Who is it for

This mounting base is ideal for engineers and technicians working with industrial enclosures, control cabinets, and automation systems who need a durable, metal solution for securing components.

Main features

• Made from natural aluminum for strength and corrosion resistance
• Compatible with 35 mm DIN rails (EN 60715)
• Compact dimensions: 52 mm length, 50 mm width, 7.2 mm height
• Four M4 screw holes for secure component mounting
• Sold individually

Specifications

• Product Type: DIN Rail Mounting Base
• Mounting Standard: DIN Rail (EN 60715)
• Compatible DIN Rail Width: 35 mm
• Material: Aluminum
• Finish: Natural Aluminum
• Color: Silver
• Length: 52 mm
• Width: 50 mm
• Height: 7.2 mm
• Mounting Method (Component to Base): Screw-on
• Number of Mounting Holes: 4
• Typical Screw Size for Mounting: M4
• Application Area: Industrial Enclosures, Control Cabinets, Automation
• Series: TSH
• Quantity per Pack: 1 piece

Tips

Ensure the DIN rail is clean and free of debris before mounting the base. Use appropriate M4 screws and tighten them to the recommended torque to avoid damaging the aluminum threads.
