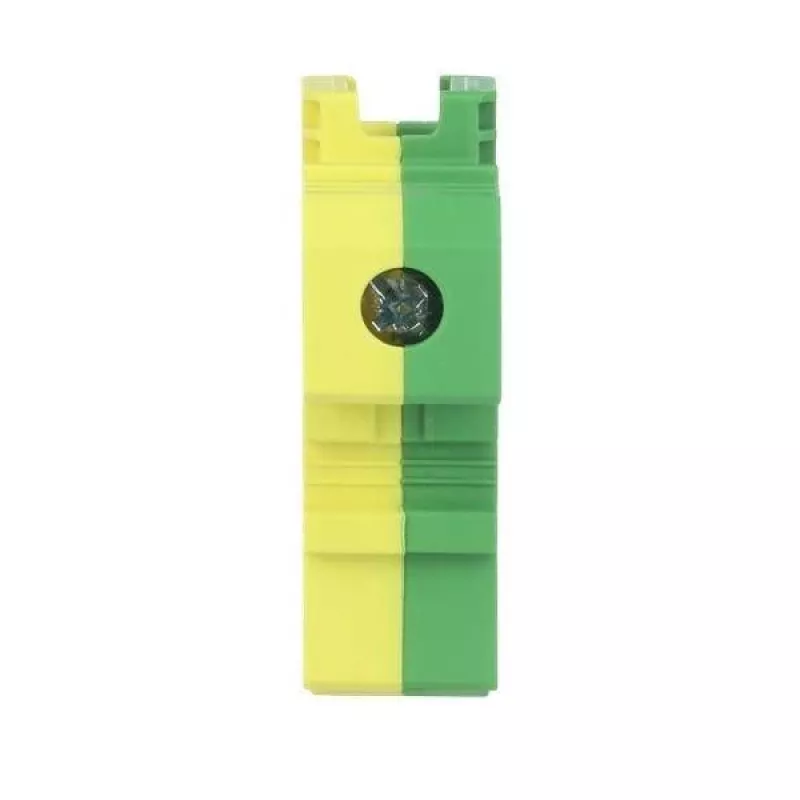

Borne de protección ABB Smissline TP 35 mm², borne de tornillo, verde/amarillo 2CCA183387R0001

Electricians and panel builders working with ABB Smissline TP distribution boards use this protective earth terminal block to create reliable grounding connections for conductors up to 35 mm². The screw clamp connection ensures a secure and maintenance-friendly termination, while the green/yellow colour coding provides instant identification of the PE function in the busbar system.

Key specifications

• Terminal type: Protective Earth (PE)
• System compatibility: ABB Smissline TP
• Conductor cross-section: 6 mm² to 35 mm²
• Connection method: Screw clamp
• Number of connections: 2
• Rated current: 125 A
• Colour: Green/Yellow
• Material: Polyamide (PA)

Why choose it

This terminal block is engineered for the Smissline TP busbar system, ensuring a perfect fit and reliable electrical performance. The screw clamp design allows for quick installation and easy re-termination, reducing downtime during maintenance. The green/yellow insulation clearly marks the protective earth function, enhancing safety and compliance with wiring standards.

Ideal use cases

• Grounding conductors in Smissline TP distribution boards
• Panel building and industrial control cabinet assembly
• Retrofitting or expanding existing ABB Smissline installations

Good to know

The terminal block operates within a temperature range of -25 °C to +70 °C and has a flammability class of UL 94 V-0. It is rated for pollution degree 3 and impulse withstand voltage of 6 kV, making it suitable for demanding industrial environments.
