Cable de antena conector FAKRA Z macho conector FAKRA Z hembra RG-316 1 m DeLOCK

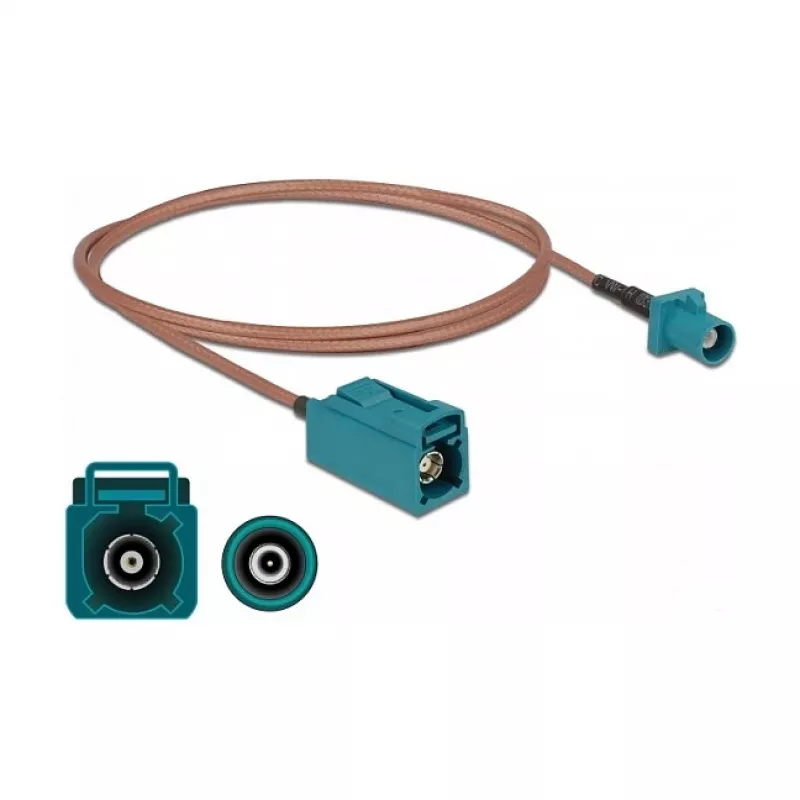

The DeLOCK antenna cable is designed for connecting radio frequency components and devices. It features a FAKRA Z plug and a FAKRA Z jack on a 1 m RG-316 coaxial cable, offering a compact connection solution for automotive and RF applications. The cable is supplied in a polybag and manufactured in China.

Advantages

The cable uses RG-316 coaxial construction for stable signal transmission and low loss over short distances. Standard FAKRA Z connectors provide secure mating with compatible RF ports. A 1 m length offers flexibility for routing inside equipment or vehicles while maintaining a compact footprint.

Suitable for

Key specifications

How to use

Align the FAKRA Z plug with the mating FAKRA Z jack on the device and push until it clicks or seats securely. Ensure that both connector housings are free from debris before connection. Route the RG-316 cable to avoid sharp bends and secure it to prevent strain on the connectors. Disconnect by pressing the release mechanism (if present) and pulling the connector straight out.

Recommendations

For best results, use this 1 m RG-316 FAKRA Z cable for short-distance RF connections in vehicles or equipment; avoid using it where longer runs or higher-frequency performance beyond RG-316 specifications are required.
