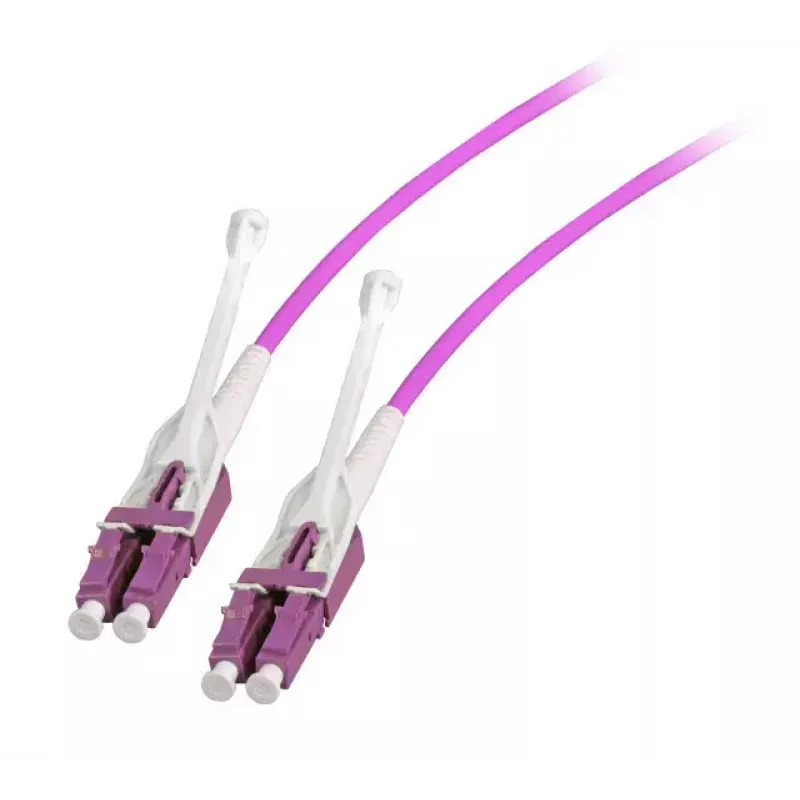

Cable de fibra óptica EFB Elektronik DJP-LCLCOM4-UNI-5 5 m LC violeta

The EFB Elektronik DJP-LCLCOM4-UNI-5 is a 5 m OM4 fibre optic cable with LC duplex uniboot connectors and a violet jacket. It has a 50 µm core diameter and is designed for full-duplex high-speed data transmission in structured cabling and network equipment connections. The LC uniboot design includes a long unlock latch to simplify removal from HD patch panels and allows easy polarity or coding changes to meet application requirements.

Advantages

The LC uniboot jumper provides a secure duplex connection in a single compact housing while enabling simple polarity or coding reversal. The long unlock latch ensures easy disengagement from high-density (HD) patch panels. OM4 multimode construction with a 50 µm core supports higher bandwidth and improved performance for short- to medium-range data links. The violet jacket offers quick visual identification in complex cabling environments.

Suitable for

• Data centre patching and cabinet connections
• Server-to-switch and switch-to-switch links
• High-density (HD) patch panels
• LAN and enterprise network backbone connections

Key specifications

• Brand: EFB Elektronik
• Model / MPN: DJP-LCLCOM4-UNI-5
• Length: 5 m
• Connector type: LC duplex uniboot (both ends)
• Fibre type: OM4 multimode
• Core diameter: 50 µm
• Colour: Violet
• EAN: 4049759193720

How to use

Insert the LC uniboot connectors into the corresponding LC adapters on the patch panel or transceiver until the latch clicks. To remove, press the long unlock latch and pull the connector straight out to avoid damaging the adapter. If polarity or coding needs to be changed, adjust the duplex orientation according to the equipment wiring scheme or standard in use.

Recommendations

Route and secure the cable to avoid sharp bends and excessive tension; maintain the minimum bend radius recommended for OM4 multimode fibre. Use appropriate cable management in racks and patch panels and verify polarity after installation to ensure correct full-duplex links.
