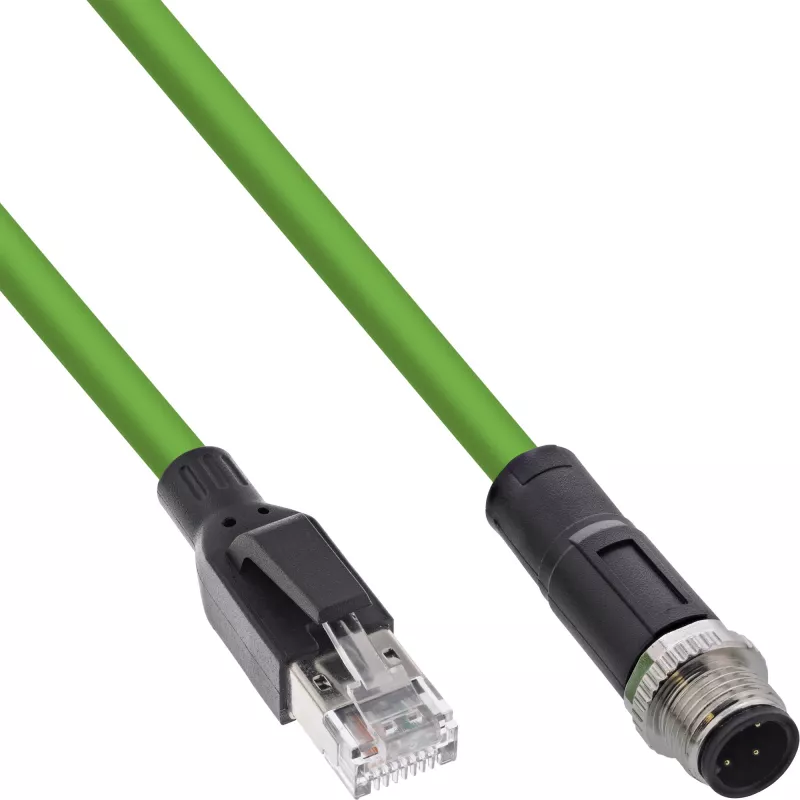

Cable de red industrial InLine, M12 4 pines codificación D macho a RJ45, PUR 10m

High-quality industrial network cable with D-coded CAT5E performancefor data rates of up to 100 Mbit/s
Drag chain suitableup to 10 million bendsand torsion resistantup to 3 million cyclesfor industrial use
IP67 waterproof M12 connectorand IP20 RJ45 connector side– ideal for harsh and humid environments
PUR jacket: Flame-retardant (UL 94), oil-resistant, UV-resistant, abrasion-resistant and halogen-free
Optimized for automation and fieldbus technology, ideal for mechanical engineering, production lines and industrial networks

The InLine® industrial network cable M12 4-pin D-coded to RJ45has been specially developed for industrial applications where a reliable and robust connection is essential. The PUR jacketensures high resistance to chemicals, mechanical stress and extreme temperatures. Thanks to its drag chain suitability (up to 10 million bends) and torsion resistance (up to 3 million bends), this cable is ideal for demanding automation and fieldbus technology environments.
The high protection class of the M12 connector (IP67)ensures reliable data transmission even in damp or dusty environments. The RJ45 plug with IP20is suitable for secure connection to industrial network infrastructures. With CAT5E performance, the cable enables transmission rates of up to 100 Mbit/s, which ensures stable and fast communication.
Whether for use in production facilities, automation technology or demanding industrial networks, the InLine® industrial network cableimpresses with its quality, durability and reliable data transmission.Technical specifications:

Conductor cross-section: AWG 24
Shielding: SF/UTP
Connector type: M12 4-pin D-coded (IP67) to RJ45 (IP20)
Sheathing material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant
Dynamic bending radius: >98 mm
Static bending radius: >52 mm
Operating temperature: -25 to +70 °C
Storage temperature: -40 to +80 °C
Outlet diameter: 6.5 mm
Color: green

InLine Industrial network cable, M12 4-pin D-coded male plug to RJ45, PUR 10m. Cable length: 10 m, Connector 1: M12, Connector 2: RJ-45. Package width: 260 mm, Package depth: 345 mm, Package height: 30 mm

How to use

Connect the M12 D-coded male plug to the corresponding D-coded M12 socket on the device and insert the RJ45 connector into the Ethernet port of the switch, router or controller. Ensure connectors are fully seated and tightened where applicable. Route the cable to avoid sharp edges and moving parts to preserve the PUR jacket and maintain reliable data transmission.

Recommendations

Use the cable within its specified environmental limits and avoid excessive bending radii or prolonged exposure to fluids not compatible with PUR. For fixed installations, secure the cable with appropriate cable ties and supports; for moving applications, verify compatibility with the motion profile and consult technical data for permissible tensile loads and bending cycles.
