Cable SAS DeLOCK 85731 1 m negro verde

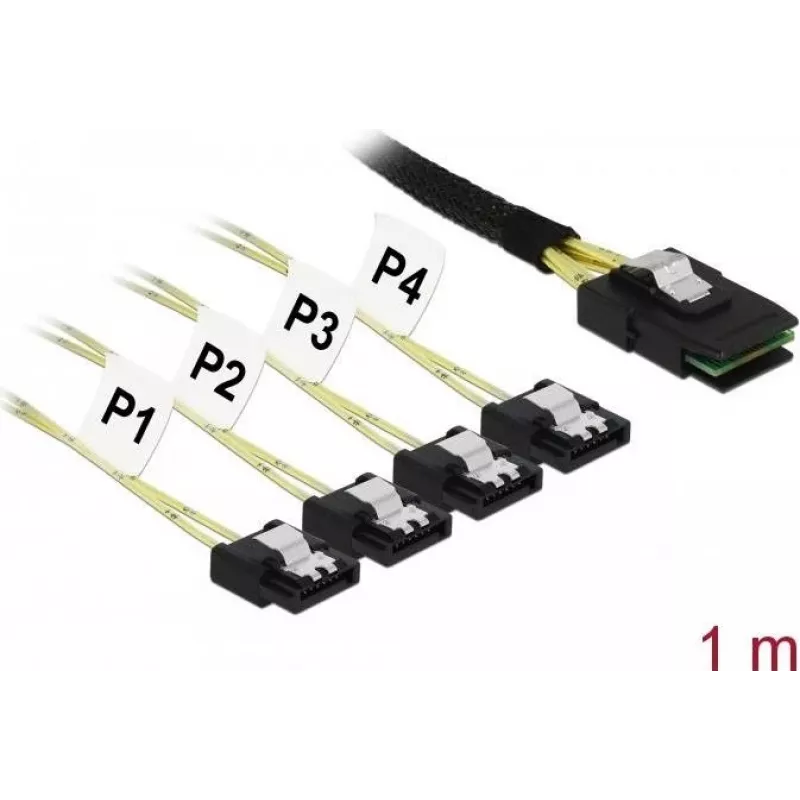

The DeLOCK 85731 SAS cable is a 1 m internal connection cable that links a Mini SAS SFF-8087 port to four SATA 6 Gb/s 7-pin ports. It is intended for connecting SAS controllers or host adapters with a Mini SAS connector to multiple SATA drives and supports high-speed data transfer between controller and drives. The cable has a black and green outer design and is suitable for use inside computer cases and storage enclosures.

Advantages

This Mini SAS to 4x SATA cable provides a compact single-cable solution for connecting multiple SATA hard drives or SSDs to a Mini SAS port. The SFF-8087 connector and four SATA 7-pin connectors support SATA 6 Gb/s link speeds where supported by devices. The 1 m length offers flexible routing inside a chassis while maintaining reliable signal integrity for internal storage connections.

Suitable for

• Connecting a Mini SAS SFF-8087 controller to up to four SATA drives
• Internal wiring of desktop PCs, workstations and servers
• Expanding storage in NAS or storage enclosures with SAS host adapters

Key specifications

• Cable length: 1 m
• Connector 1: Mini SAS SFF-8087
• Connector 2: 4 × SATA 6 Gb/s 7‑pin
• Colour: Black, Green
• Brand: DELOCK, MPN: 85731, EAN: 4043619857319

How to use

Power off the system and open the case before installation. Insert the Mini SAS SFF-8087 connector into the controller or host adapter port, ensuring correct orientation. Connect the four SATA 7-pin connectors to the SATA ports on the drives. Route the cable to avoid obstructing fans or other components, then close the case and power on the system. Verify that the drives are detected in BIOS/UEFI or the operating system.

Recommendations

Use this cable only for internal connections; avoid exposing it to excessive bending, sharp kinks or heat sources. Ensure compatible SATA and SAS controller firmware/drivers are installed for proper operation at SATA 6 Gb/s speeds.
