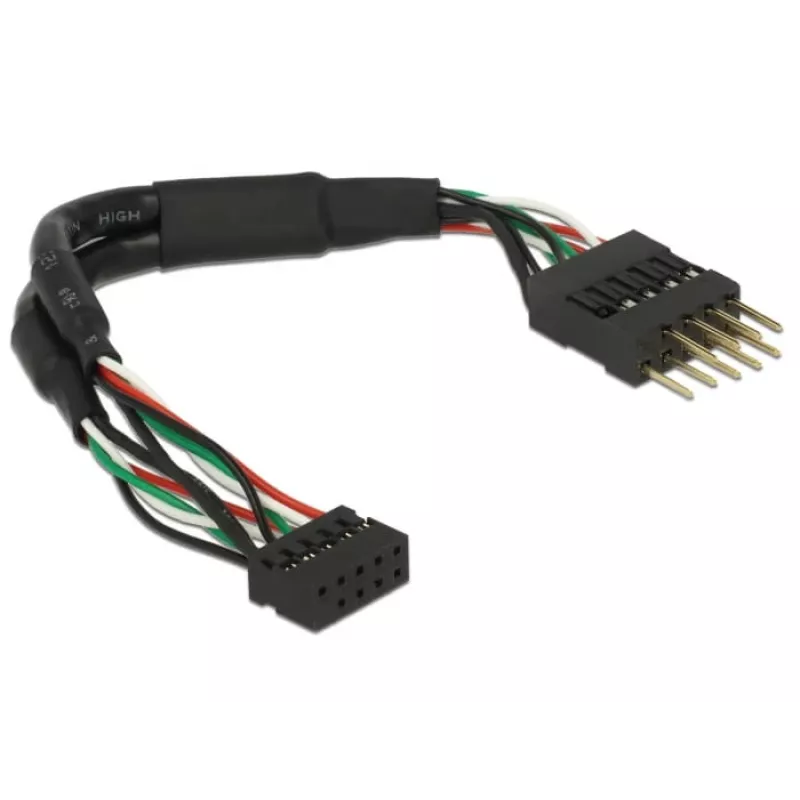

Cable USB interno DeLOCK 41977

This cable enables connection between devices or modules that have a USB pin header and a motherboard. It is intended to provide a direct internal USB link for data and power between compatible components.

Advantages

The cable offers a simple and reliable way to connect internal USB-enabled modules to a motherboard without external adapters. Its design ensures compatibility with standard USB pin headers and helps maintain a tidy internal layout by keeping connections inside the computer case.

Key specifications

• Interface: USB pin header to motherboard connection
• Application: Internal connection for devices or modules with USB pin headers
• Function: Data and power transmission between module and motherboard

How to use

Identify the USB pin header on the device or module and the corresponding USB header on the motherboard. Align the connector carefully with the pins, ensuring correct orientation, and press gently until seated. Confirm the connection is secure before powering the system and verify device recognition in the operating system.

Recommendations

Before installation, power off the computer and ground yourself to prevent electrostatic discharge. Consult the motherboard and device documentation to match pinouts and orientation to avoid incorrect connections.
