Cable pinheader H/F DeLOCK 82426

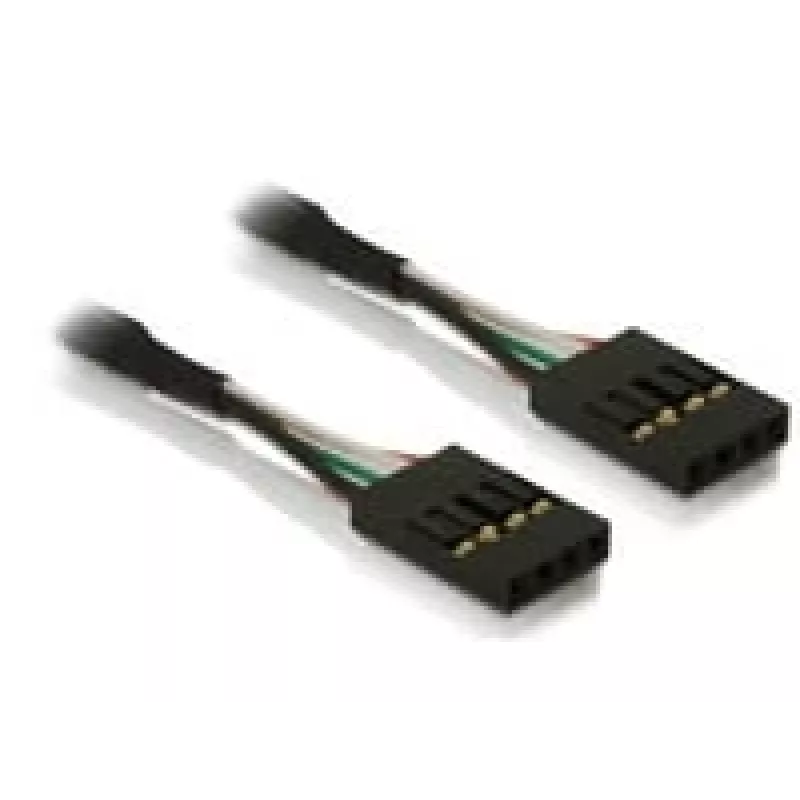

The DeLOCK Cable pinheader F/F (0.40 m) is a signal cable designed to connect internal USB ports to a motherboard pinheader. It allows routing an internal USB connection, for example from a multi-panel, to a USB male pinheader on the mainboard. The cable is 0.4 m long and comes in black, offering a straightforward way to link pin headers for reliable signal transmission.

Advantages

The cable supports stable signal transmission between internal USB devices and the motherboard pinheader. Its 0.4 m length provides flexibility for routing inside a computer chassis while keeping connections tidy. The black color helps the cable blend with other internal components.

Suitable for

• Connecting internal USB ports of panels or front I/O modules to a motherboard pinheader
• Routing short internal USB connections inside a PC case
• Use in custom electronics projects requiring standard USB pinheader connections

Key specifications

• Cable type: Pinheader F/F signal cable
• Length: 0.4 m
• Colour: Black
• Brand: DELOCK
• MPN: 82426
• EAN: 4043619824267

How to use

Connect one female pinheader end to the internal USB connector of the device (for example a multi-panel) and the other female pinheader end to the motherboard USB pinheader. Ensure proper orientation of pins to match the board’s pinout and secure the cable so it does not interfere with fans or other components. Power off the system before connecting or disconnecting internal cables.

Recommendations

Use the cable for short internal USB connections only; avoid stretching the cable or placing it near sources of sustained heat. Verify the motherboard pinout diagram before connection to prevent pin mismatch.
