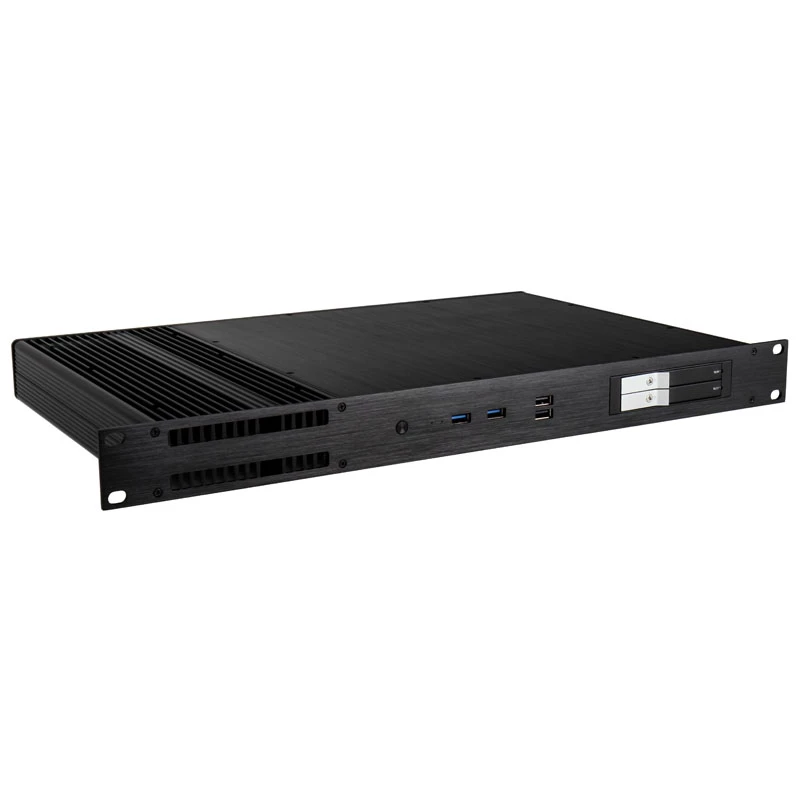

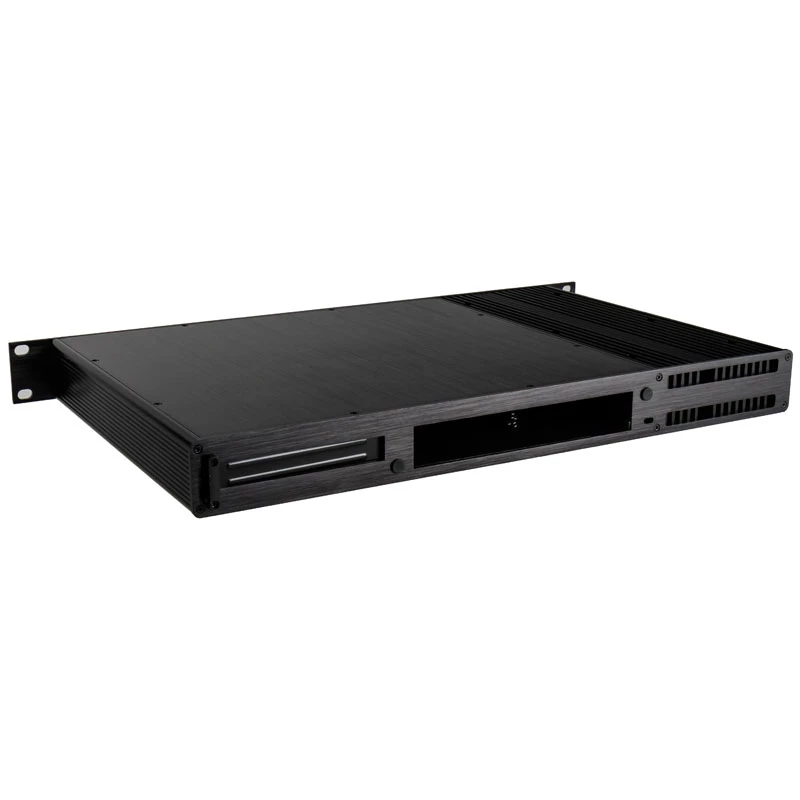

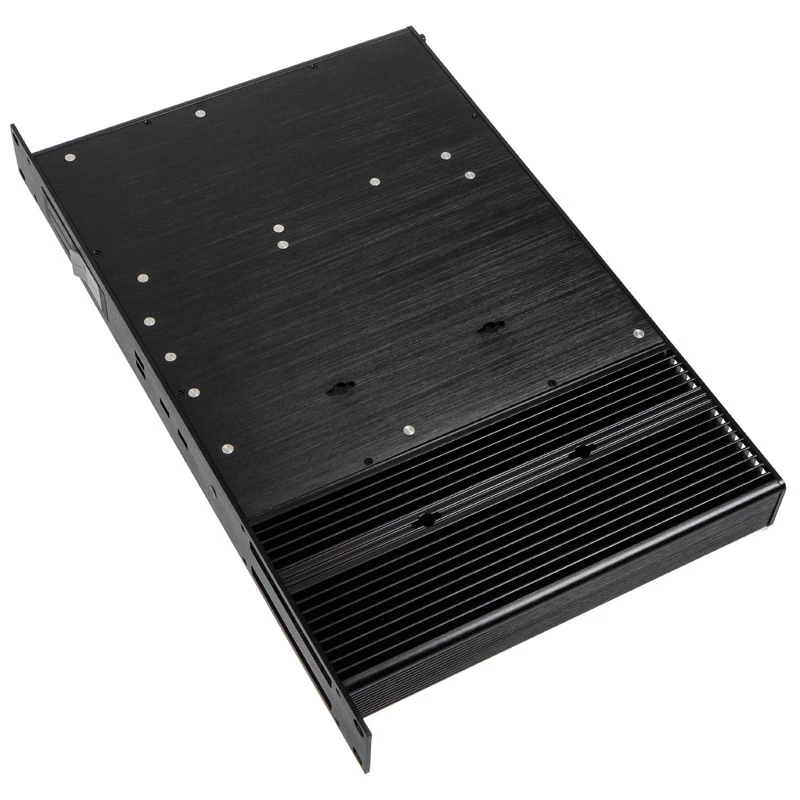

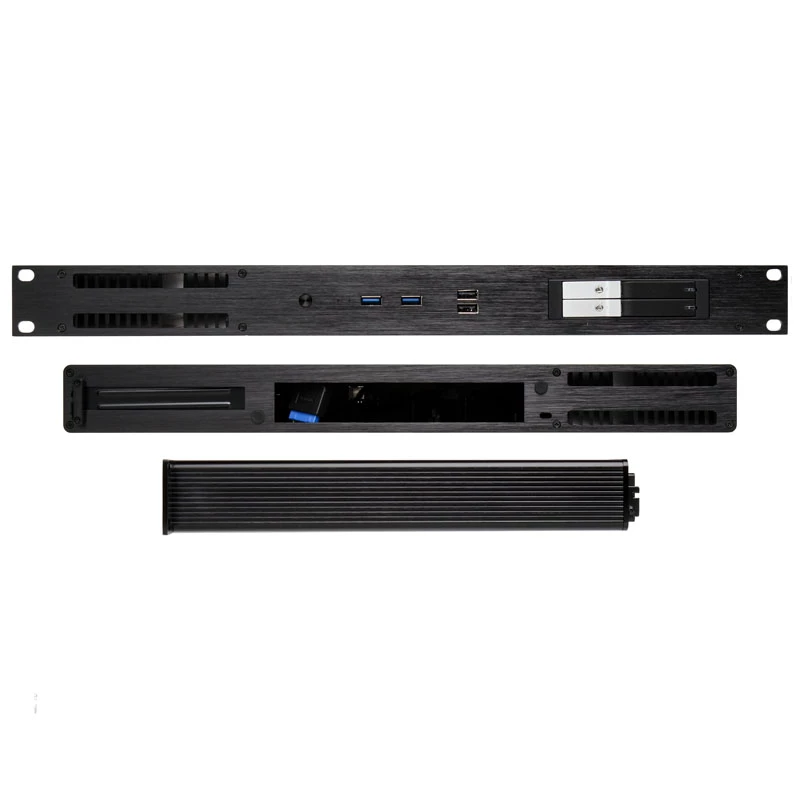

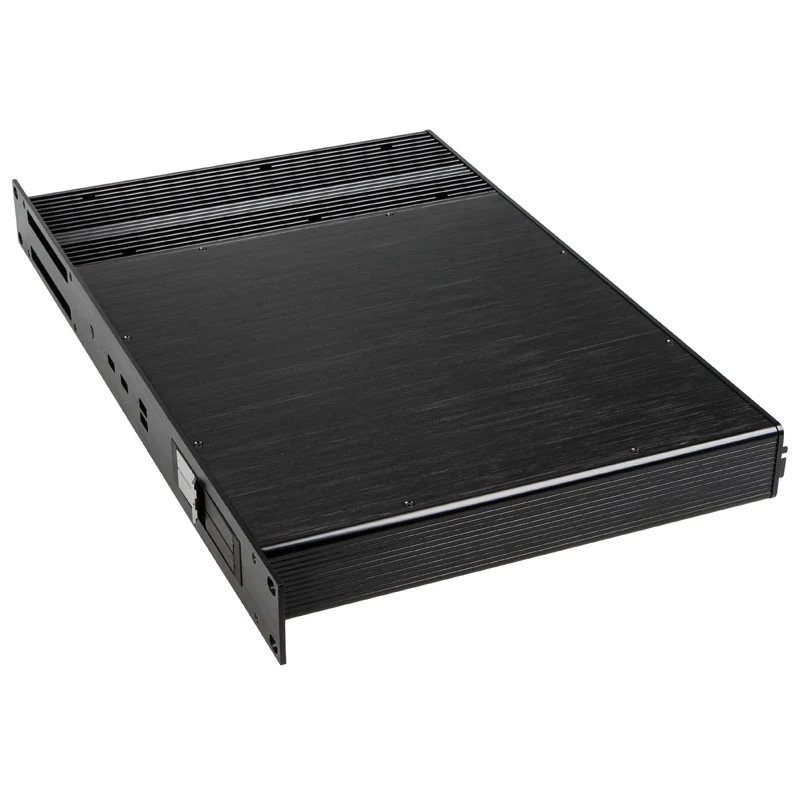

Caja de servidor Akasa Galileo TU1 Rack Negro

The Akasa Galileo TU1 Rack Black is a 1U rackmount fanless Thin Mini-ITX server case made from aluminium. Designed for compact server installations, it supports Thin Mini-ITX motherboards and two internal 2.5" HDD/SSD drives, with a slim black finish and dimensions 482.6 mm (W) x 278 mm (D) x 43.6 mm (H).

Advantages

The fanless aluminium CPU cooling design enables silent operation and passive heat dissipation without moving parts. The case accommodates two 2.5" drives via internal bays with mobile trays, offers one PCI‑E x8 slot for expansion, and includes front I/O with two USB 2.0 and two USB 3.2 Gen 1 Type‑A ports. Its 1U rack form factor and compact depth make it suitable for space-constrained racks.

Suitable for

• Compact server deployments in 1U rack environments
• Network appliances and edge servers using Thin Mini-ITX motherboards
• Storage-focused builds using two 2.5" HDD or SSD drives
• Low-noise installations where passive cooling is required

Key specifications

• Form factor: 1U rack, Thin Mini-ITX support
• Drive bays: Two internal 2.5" HDD/SSD bays with mobile trays
• Expansion: One PCI‑E slot (x8)
• Material: Aluminium
• Front I/O: 2 × USB 2.0, 2 × USB 3.2 Gen 1 (Type‑A)
• Dimensions: 482.6 × 278 × 43.6 mm (W × D × H)
• Colour: Black

How to use

Install a Thin Mini-ITX motherboard and secure it to the standoffs, mount up to two 2.5" drives in the provided mobile trays and slide them into the internal bays, and insert any PCI‑E card into the x8 slot according to clearance. Connect front I/O cables to the motherboard headers and route power from a compatible external or rackmount power supply (power supply not included). Ensure thermal contact between the CPU and the aluminium passive cooler as described by the motherboard/CPU vendor.

Recommendations

Use the Akasa Galileo TU1 Rack Black in ventilated rack enclosures and avoid placing heavy dust accumulation against the aluminium heatsink surfaces; periodically inspect drive mounting and cable connections. For best passive cooling performance, maintain ambient rack temperatures within the motherboard and CPU manufacturer’s specified ranges.
