Campana extractora integrable CATA GCX 53 SD – 530 mm de ancho, 750 m³/h, filtro antigrasa metálico, control táctil, gris

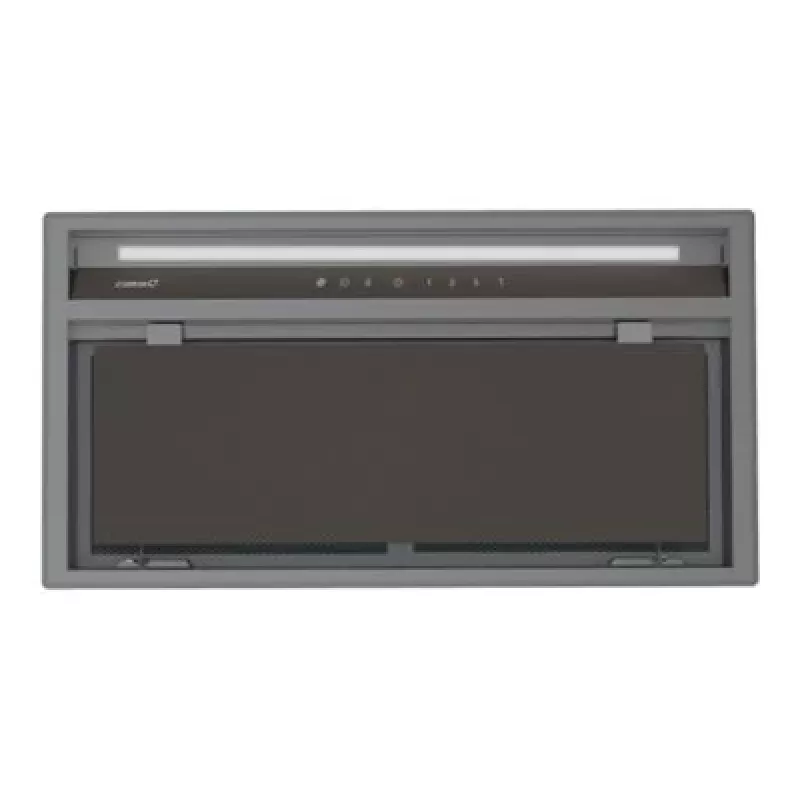

The CATA GCX 53 SD is a built-in extractor hood designed for kitchens with limited installation space. With a 530 mm width and 280 mm depth, it integrates into standard cabinets while providing a maximum extraction capacity of 750 m³/h. The unit supports both ducted and recirculating operation, is finished in grey and uses metal grease filters together with a single LED bulb. Touch control offers straightforward operation, and the hood is rated energy efficiency class A with an annual energy consumption of 56.1 kWh. Typical operating noise is 50 dB, making it suitable for medium-sized kitchens requiring effective ventilation with moderate sound levels.

Advantages

The built-in design allows discreet installation inside kitchen cabinetry while maintaining high extraction performance up to 750 m³/h. Metal grease filters provide durable protection against grease buildup and are suitable for regular cleaning. Touch control simplifies speed selection and lighting without mechanical knobs. Energy efficiency class A and relatively low annual consumption contribute to lower operating costs. The grey finish integrates with a range of kitchen styles and the included LED bulb delivers efficient task lighting.

Suitable for

• Medium-sized kitchens requiring strong extraction for cooking fumes and odors
• Kitchens where a discreet, built-in installation is preferred
• Homes that need both ducted and recirculating ventilation options
• Users who prefer touch controls and low-maintenance metal filters

Key specifications

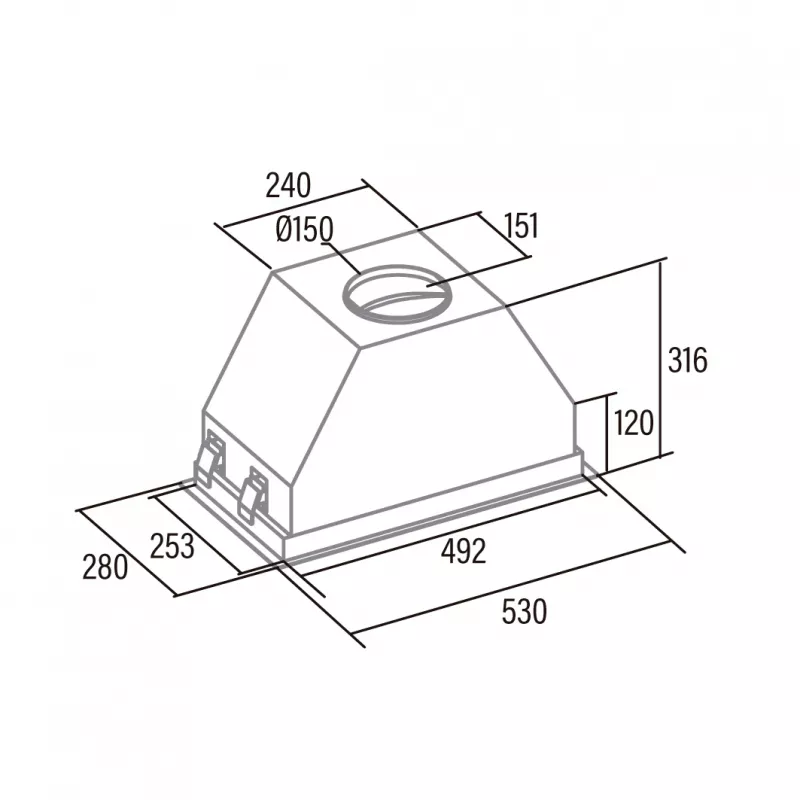

• Width: 530 mm
• Depth: 280 mm
• Maximum extraction power: 750 m³/h
• Noise level (typical): 50 dB
• Type: Built-in extractor hood
• Grease filters: Metal (washable)
• Control: Touch panel
• Lighting: Single LED bulb
• Colour: Grey
• Energy efficiency class: A; annual consumption: 56.1 kWh

How to use

Install the CATA GCX 53 SD into a compatible cabinet space following the manufacturer’s mounting instructions for either ducted or recirculating mode. Use the touch panel to switch the hood on, select the appropriate extraction speed for the cooking intensity, and turn the LED light on or off as needed. For most cooking tasks, start the extractor shortly before heating begins and continue operation for several minutes after finishing to clear residual odors and moisture.

Recommendations

Regularly clean or wash the metal grease filters according to the maintenance schedule to maintain extraction efficiency. Use the appropriate ducting size and route for ducted installation to achieve rated performance; when using recirculating mode, install and replace suitable charcoal filters as specified by the manufacturer. Avoid running the hood at maximum power continuously to reduce noise and energy use.
