Carcasa de distribución eléctrica EFB Elektronik 46019N.1V1 — caja eléctrica metálica, 330×120×550 mm, blanca

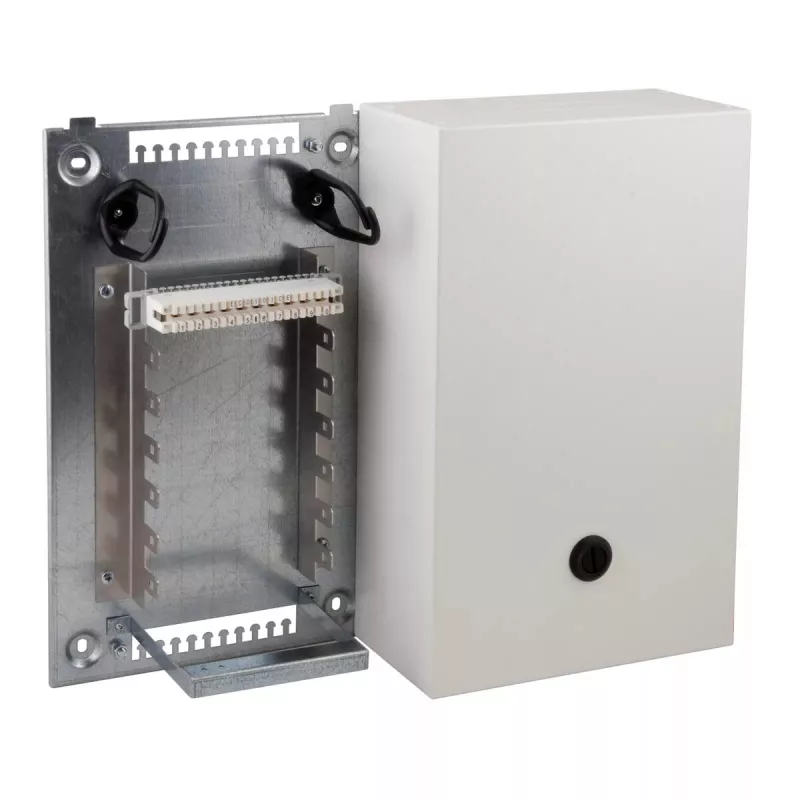

EFB Elektronik 46019N.1V1 is a metal electrical distribution enclosure with external dimensions 330 × 120 × 550 mm, finished in RAL9016 traffic white. The box consists of a sheet steel body with a base plate and a cover secured by a latch, offering protected indoor housing for circuit breakers, terminals and wiring. Cable entries are provided on the bottom and the top of the cover. A sheet of paper for connection registration is included.

Advantages

The enclosure is made of sheet steel for mechanical strength and stability. Its cover colour is RAL9016 traffic white to match standard indoor installations. The base plate accepts VKA mounting kits for 10-pair and 20-pair terminals which can be screwed on, simplifying internal mounting. Cable entries on both top and bottom improve routing flexibility. Protection degree IP30 provides basic protection against solid objects and accidental contact.

Suitable for

• Indoor electrical distribution and component mounting
• Housing of circuit breakers, terminal blocks and small control devices
• Installations requiring organized cable entry from top and bottom
• Projects using VKA mounting kits for 10-pair or 20-pair terminals

Key specifications

• Brand: EFB Elektronik
• Model / MPN: 46019N.1V1
• EAN: 4049759283476
• Material: sheet steel (body, base plate and cover)
• External dimensions (W × D × H): 330 × 120 × 550 mm
• Cover colour: RAL9016 (traffic white)
• Protection degree: IP30
• Cable entries: on bottom and top of the cover
• Included: sheet for connection registration

How to use

Mount the enclosure at the planned indoor location. Secure the box using appropriate fixings through the base plate. Fit the VKA mounting kit (10-pair or 20-pair) by screwing it onto the base plate if required for terminal mounting. Route incoming and outgoing cables through the provided entries in the cover (top or bottom) and install circuit breakers, terminal blocks and wiring inside the enclosure. Complete connection details on the supplied registration sheet and close the cover, engaging the latch.

Recommendations

Use the enclosure only in indoor environments and follow applicable electrical installation standards. Ensure cable entries are sealed as needed and that live parts are insulated to maintain safety. Verify that IP30 protection is sufficient for the intended location and add additional protection if required.
