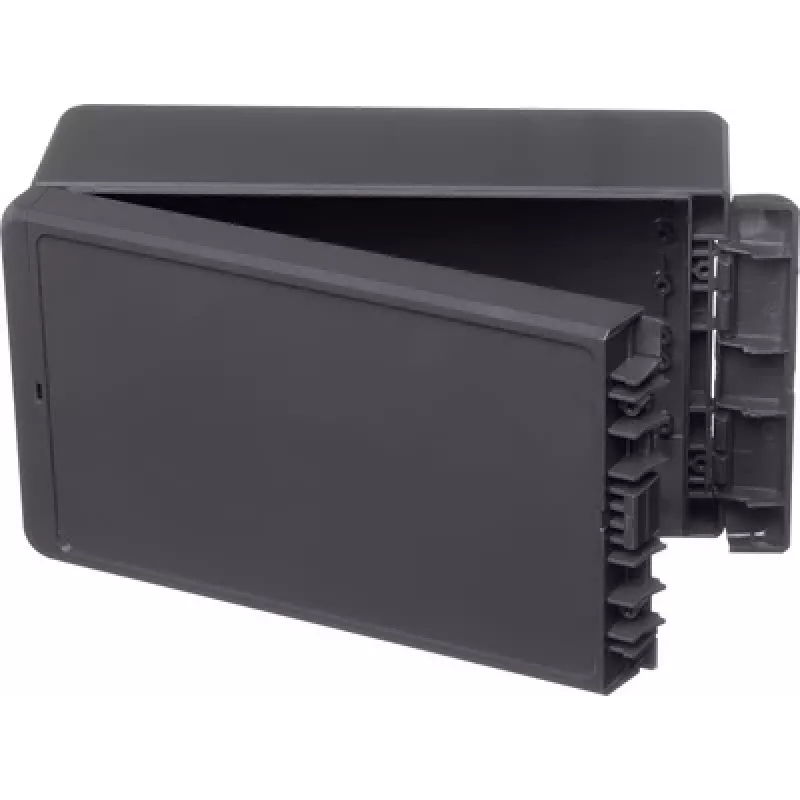

Carcasa de pared BOPLA Bocube, ABS, gris grafito (RAL 7024), 231 x 125 x 90 mm 96035234

Engineers and technicians in industrial automation, measurement, and control technology often need a robust housing for electronics that can withstand harsh environments. The BOPLA Bocube wall-mounted enclosure, model 96035234, offers a durable solution with its ABS construction and graphite grey finish (RAL 7024).

Key specifications

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Graphite Grey (RAL 7024)
• External dimensions: 231 x 125 x 90 mm
• Protection class: IP66 / IP67
• Impact resistance: IK08
• Operating temperature range: -35 °C to +80 °C
• Flammability rating: UL 94 V-0
• Lid fastening: 4x stainless steel screws (1.4567 / V2A)
• Gasket material: Polyurethane (PUR)
• Internal mounting: Integrated mounting bosses for PCBs/mounting plates
• Series: Bocube
• Mounting type: Wall mounting (via external screw channels)
• Design features: Recessed lid for membrane keypads, modern aesthetic

Why choose it

This enclosure is designed for reliable protection of sensitive electronics in demanding industrial settings. Its high IP rating ensures resistance to dust and water, while the IK08 impact rating provides durability against mechanical stress. The ABS material offers a good balance of strength and weight, and the graphite grey colour is suitable for professional environments.

Ideal use cases

• Industrial control units
• Measurement and monitoring devices
• Automation systems
• Outdoor electronic installations

Good to know

The recessed lid design allows for the integration of membrane keypads or overlays, enhancing the functionality and aesthetics of the final product. The enclosure includes external screw channels for secure wall mounting, and the polyurethane gasket ensures a tight seal.
