Carcasa eléctrica EFB Elektronik 46020N.1V1, 550×550×120 mm, blanca

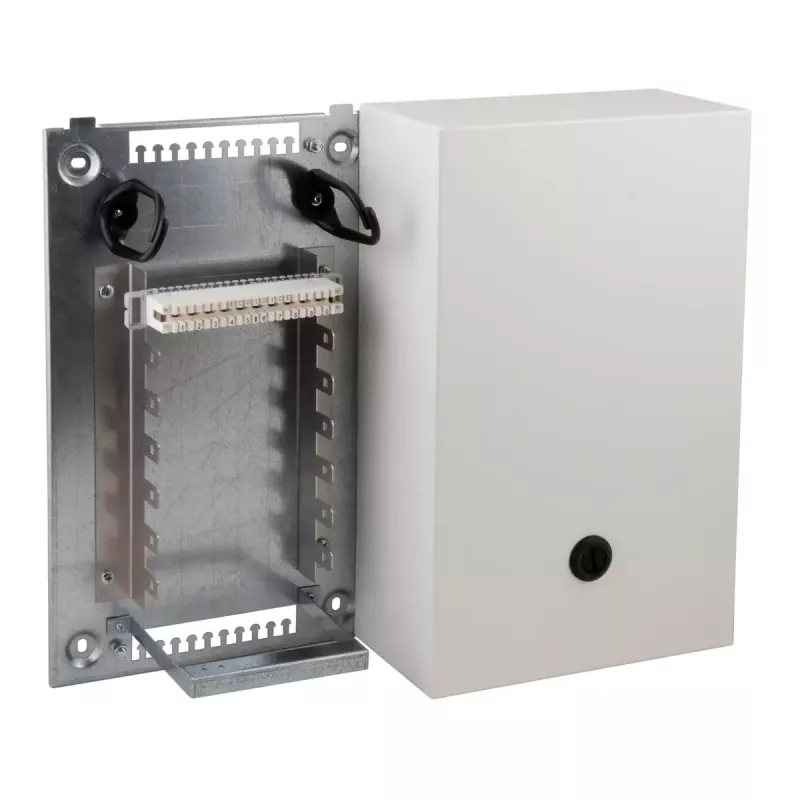

EFB Elektronik 46020N.1V1 is a sheet‑steel electrical enclosure box with external dimensions 550 × 120 × 550 mm (W × D × H) and a cover in RAL9016 traffic white. The box is designed to house and protect electrical components and cabling in wall‑ or surface‑mounted installations and includes a base plate with a cover that secures via a latch. The enclosure provides basic protection for wiring and devices and includes a sheet for connection registration.

Advantages

The enclosure is made of sheet steel for durable mechanical protection and comes with a predrilled base plate that accepts VKA mounting kits for 10‑pair and 20‑pair assemblies. Cable entries are available on the bottom and on the top of the cover for flexible cable routing. The cover colour RAL9016 ensures a neutral, traffic‑white appearance suitable for offices, server rooms and industrial environments. The enclosure has an IP30 protection rating.

Suitable for (tasks / use cases)

• Housing small to medium electrical installations and terminal blocks
• Wall or surface mounting in offices, server rooms or technical rooms
• Organising and protecting cabling and connection points

Key specifications

• Brand: EFB Elektronik
• Model / MPN: 46020N.1V1
• External dimensions (W × D × H): 550 × 120 × 550 mm
• Material: sheet steel
• Cover colour: RAL9016 (traffic white)
• Protection degree: IP30
• Includes base plate, cover with latch and connection registration sheet
• VKA mounting kits for 10‑pair and 20‑pair can be screwed to the base plate
• Cable entries: bottom and top of the cover
• EAN: 4049759283520

How to use

Mount the enclosure on the wall or suitable flat surface using appropriate fasteners for the wall material. Open the cover using the latch, secure the supplied base plate and fit any required VKA mounting kits (10‑pair or 20‑pair) to the base plate with screws. Route cables through the provided openings at the bottom or top of the cover, terminate and register connections on the included sheet, then close the cover and engage the latch.

Recommendations

For safe installation, follow local electrical codes and standards. Ensure the chosen mounting surface and fixings support the enclosure weight plus mounted equipment. IP30 provides protection against solid objects larger than 2.5 mm but does not provide protection against water—install in dry, indoor locations or provide additional protection if required.
