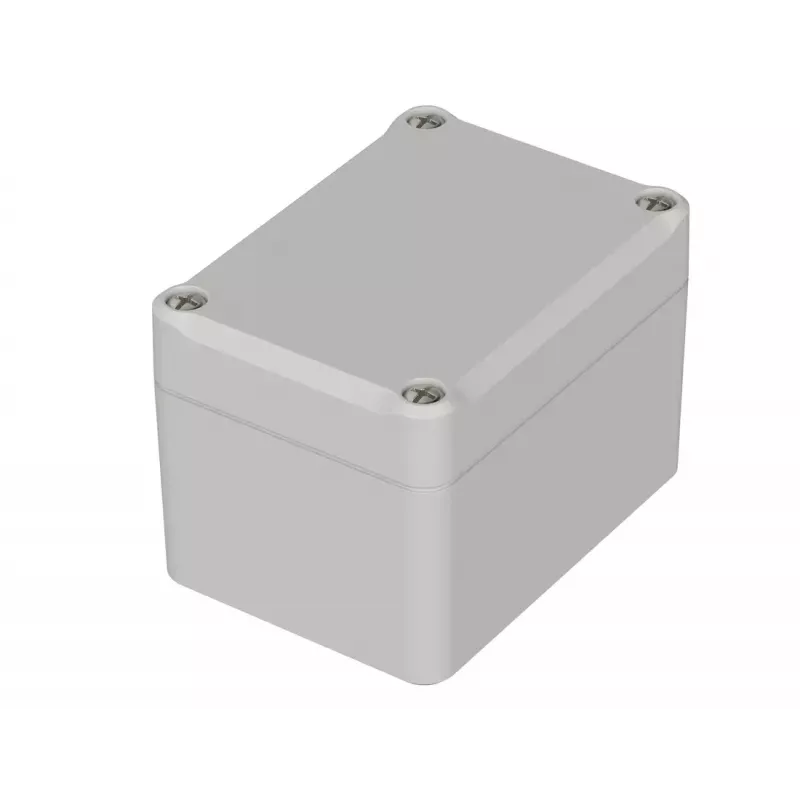

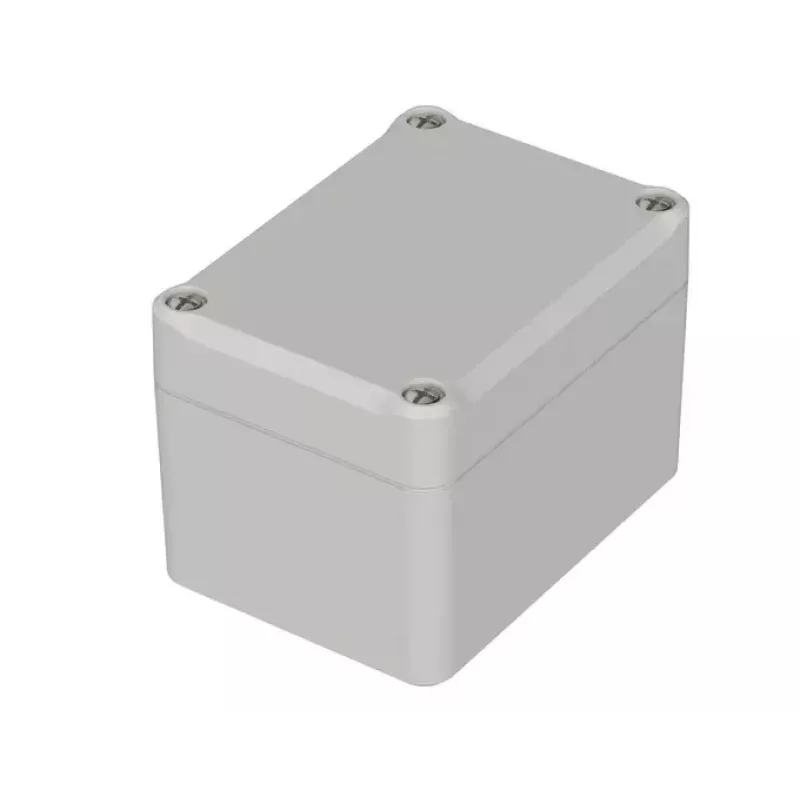

Carcasa universal Bopla EM 207, 82 x 60 x 57 mm, policarbonato, gris claro (RAL 7035) 62207300

Protecting sensitive electronics in harsh industrial environments requires an enclosure that combines durability, chemical resistance, and a secure seal. The Bopla EM 207 universal enclosure provides a robust housing for PCBs, terminals, and DIN-rail components, ensuring reliable operation even when exposed to dust, moisture, and mechanical impact.

Who is it for

Engineers, system integrators, and maintenance technicians who need a compact, high-quality enclosure for control units, sensors, or interface modules in automation, machinery, and outdoor installations.

Main features

• Made from light grey polycarbonate (RAL 7035) with high impact resistance (IK07) and good UV stability.
• IP65 protection class keeps out dust and low-pressure water jets, suitable for demanding environments.
• Flammability rating UL 94 V-0 and halogen-free material meet strict safety requirements.
• Internal mounting bosses allow easy installation of PCBs or DIN rails.
• Four screw-on lid with polyurethane foam gasket ensures a reliable seal.

Specifications

• External dimensions (L x W x H): 82 x 60 x 57 mm
• Material: Polycarbonate
• Colour: Light grey (RAL 7035)
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-0
• Operating temperature range: -40°C to +80°C
• Gasket material: Polyurethane (PU) foam
• Lid fastening: Screw-on, 4 screws
• Internal mounting: Mounting bosses for PCBs/DIN rails
• Halogen-free: Yes
• RoHS compliant: Yes

Tips

For best sealing, tighten the lid screws evenly in a diagonal pattern. The enclosure can be machined for cable glands or connectors; use appropriate tools for polycarbonate to avoid cracking.
