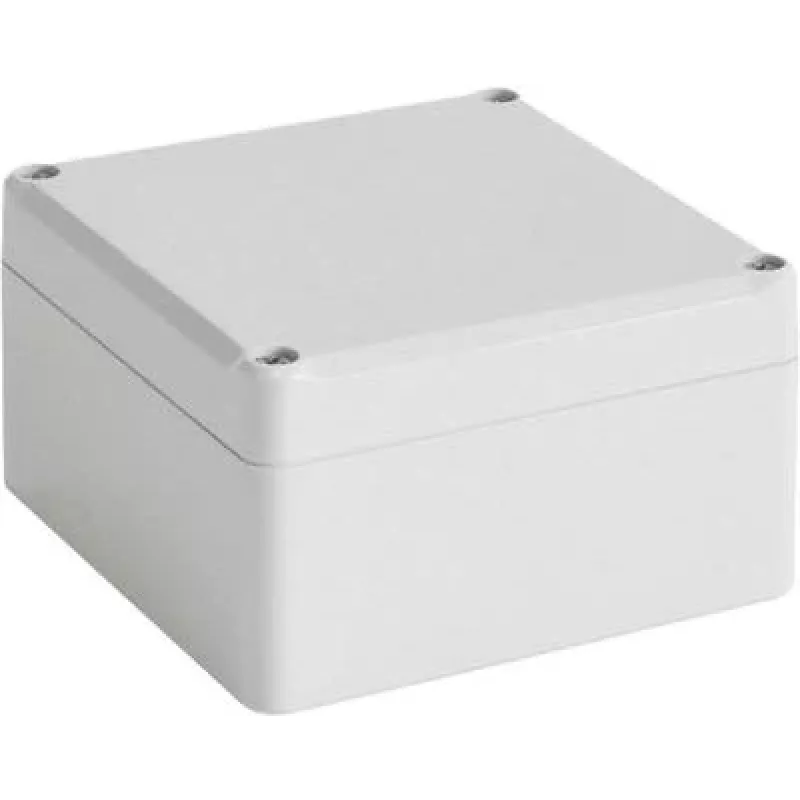

Carcasa universal Bopla EM 210 82 x 80 x 57 mm policarbonato gris claro RAL 7035 62210000

Protecting sensitive electronics in harsh environments requires an enclosure that can withstand moisture, dust, and impact while remaining easy to access for maintenance. The Bopla EM 210 universal enclosure provides a robust housing for DIN-rail or wall-mounted components, combining a durable polycarbonate shell with a secure screw-on lid.

Who is it for

This enclosure suits electrical engineers, panel builders, and system integrators who need a reliable, off-the-shelf solution for industrial controls, IoT devices, or custom electronics. Its compact size and light grey finish make it suitable for both indoor and outdoor installations where visibility and protection are key.

Main features

• Made from UV-resistant polycarbonate in light grey (RAL 7035) for long-term durability and a clean, professional look.
• External dimensions of 82 x 80 x 57 mm provide ample space for circuit boards, connectors, and small components.
• Lid is secured with four stainless steel screws, ensuring a tight seal and easy access when needed.
• Operating temperature range from -40°C to +100°C allows use in extreme conditions.
• Flammability rating UL 94 V-0 for added safety in electrical installations.

Specifications

• Enclosure type: Universal enclosure
• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• External dimensions (L x W x H): 82 x 80 x 57 mm
• Lid fastening: 4x stainless steel screws
• Gasket material: Polyurethane (PU)
• UV resistant: Yes
• Halogen-free: Yes
• Operating temperature: -40 to +100 °C
• Flammability rating: UL 94 V-0
• Number of components: 2 (base, lid)

Tips

For wall mounting, use the optional mounting holes or dedicated accessories. The polyurethane gasket ensures a reliable seal; inspect it periodically if the enclosure is opened frequently. Pair with cable glands rated for the same environmental conditions to maintain protection.
