Casete de empalme de fibra óptica Tecline con 12x pigtails OM3, ST/UPC, 2,0 m, 12 unidades (20500035)

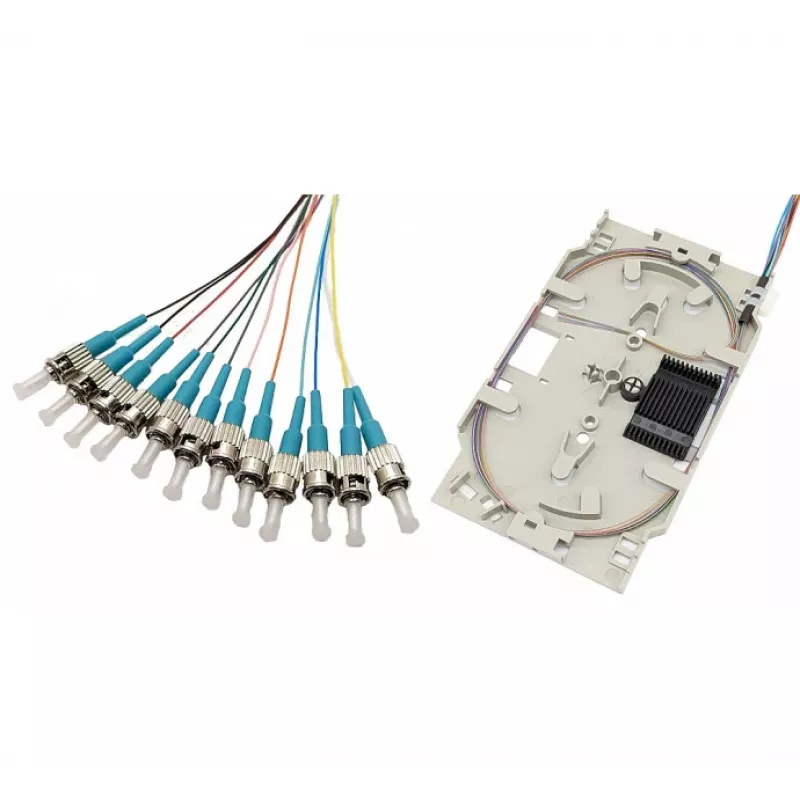

Fiber optic splice cassette with 12 pre-installed OM3 multimode pigtails, each terminated with an ST/UPC connector and 2.0 m long. The pigtails are colour-coded for easy identification and the cassette fits standard splice trays and enclosures.

Advantages

Pre-installed pigtails save installation time and reduce splicing errors. OM3 fibre supports 10 Gigabit Ethernet up to 300 m at 850 nm, making it suitable for high-speed backbone links. Colour-coded pigtails simplify fibre management and troubleshooting.

Suitable for

• Fiber optic distribution frames and splice closures
• Data centres and enterprise networks
• FTTH and campus backbone installations

Key specifications

• 12 pigtails per cassette
• Fibre type: Multimode OM3 (50/125 µm)
• Connector: ST/UPC
• Pigtail length: 2.0 m
• Attenuation: ≤3.5 dB/km @850 nm, ≤1.5 dB/km @1300 nm
• Colour-coded pigtails (IEC 60304 compliant)

Recommendations

Verify compatibility with your splice tray dimensions before ordering. Use with OM3-rated patch cords and adapters for optimal performance.
