TECLINE Caja de empalme de fibra óptica para rack de 24 puertos LC dúplex multimodo, extraíble, gris claro RAL 7035, 19 inch 1U, incluye acopladores 90768

Equipped with 24 LC duplex couplers and a sliding tray, this TECLINE splice box delivers 48-fiber termination capacity in a compact 19-inch 1U footprint, ideal for high-density multimode fiber management.

Overview

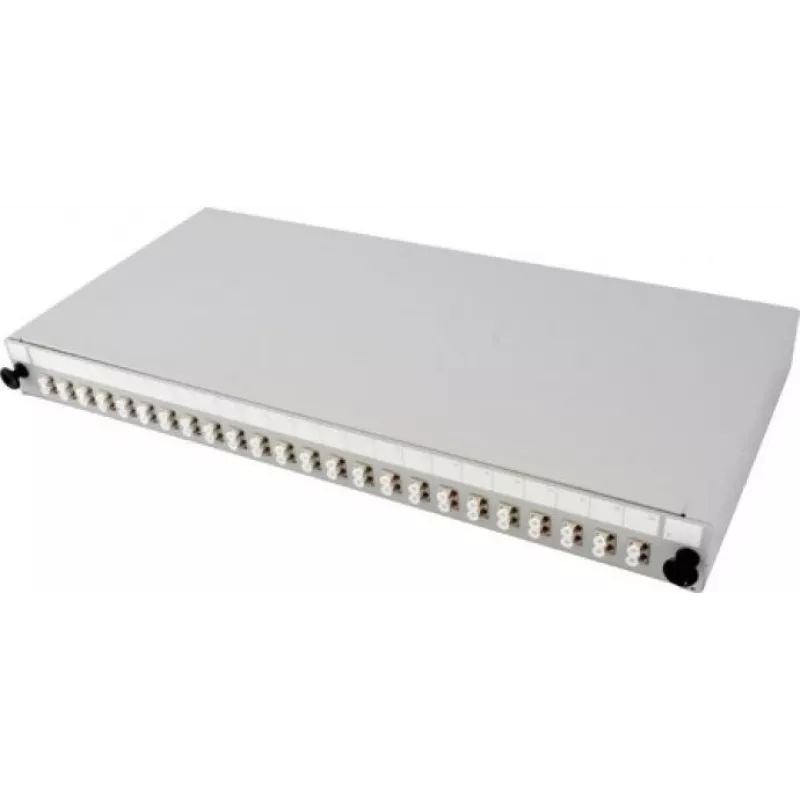

The TECLINE 90768 is a rack-mountable fiber optic splice box engineered for terminating pre-assembled fiber optic installation cables or pigtails. It features 24 LC duplex ports, each with an integrated coupler, supporting up to 48 multimode fibers. The unit is housed in a robust steel enclosure finished in light grey (RAL 7035) and includes a sliding tray for convenient access during splicing and maintenance. Designed for standard 19-inch racks, it occupies only 1U of vertical space, making it suitable for data centers, telecommunications rooms, and enterprise networks.

What stands out

• High-density 24-port LC duplex configuration with couplers pre-installed
• Sliding tray mechanism allows easy access to splice area without removing the unit
• Durable steel construction with light grey RAL 7035 finish for a professional appearance
• Compatible with standard 19-inch rack systems, occupying only 1U
• Supports multimode fiber, ideal for short to medium distance applications

Technical details

• Product type: Rack splice box
• Connector type: LC duplex
• Number of ports: 24 duplex (48 fibers total)
• Fiber compatibility: Multimode
• Couplers included: Yes, LC duplex
• Rack mount standard: 19 inch
• Rack units: 1U
• Design feature: Sliding/extendable tray
• Housing material: Steel
• Color: Light grey (RAL 7035)
• Application: Termination of pre-assembled fiber optic cables or pigtails
• Mounting type: Front panel rack mount
• Cable entry: Rear

Our verdict

A reliable and efficient solution for fiber termination in rack environments, offering high port density and easy maintenance with its sliding tray design.
