Conector de cable DeLOCK 66720 D-Sub de 15 pines negro plata

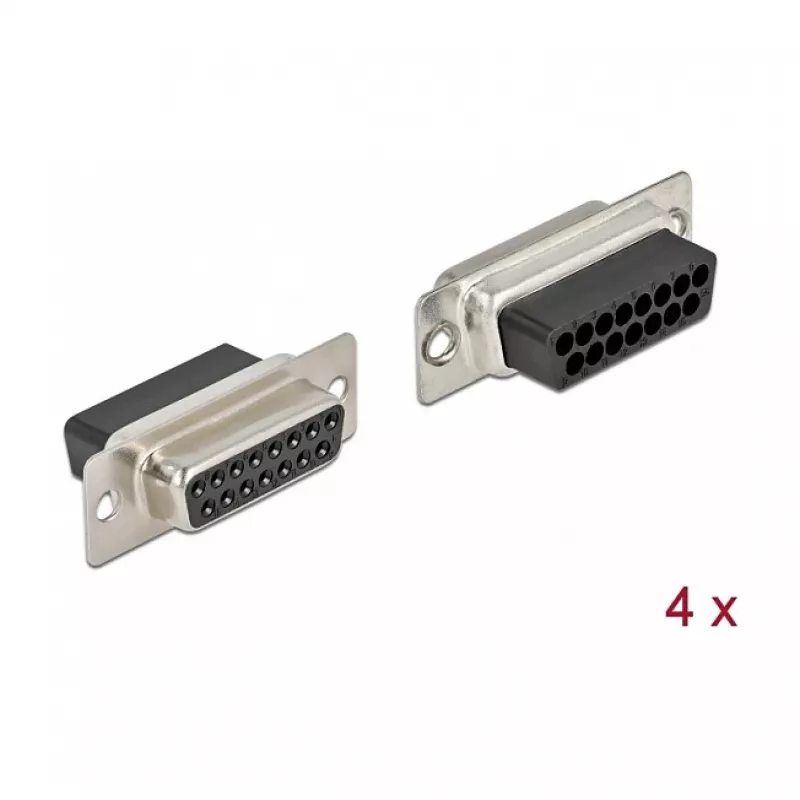

The DeLOCK 66720 wire connector is a D-Sub 15 pin female connector finished in black and silver. It is compact, with external dimensions of approximately 17.5 mm width, 39.1 mm depth and 12.5 mm height, and supplied in packs of four. The connector is designed for use in devices and assemblies that require a standard D-Sub 15 interface and offers a familiar form factor for both signal and interface wiring tasks.

Advantages

This D-Sub 15 pin connector provides a durable metal and plastic construction with a professional black and silver appearance that suits equipment panels and internal wiring. Its female gender ensures compatibility with a wide range of male D-Sub 15 plugs. The compact dimensions make it suitable for space-constrained installations, and the pack quantity of four allows for multiple connections or spare parts for small projects.

Suitable for

• Connecting VGA or other 15-pin D-Sub compatible devices
• Panel or chassis wiring in industrial and consumer electronics
• Repair and replacement of existing D-Sub 15 female connectors
• Prototyping and small-batch electronic assemblies

Key specifications

• Connector type: D-Sub 15 pin, female
• Material finish: black and silver (plastic and metal components)
• External dimensions: approx. 17.5 mm (W) × 39.1 mm (D) × 12.5 mm (H)
• Package contents: 4 connectors per pack
• Country of manufacture: China

How to use

Align the female D-Sub 15 connector with the mating male plug, ensuring pin orientation matches the device port before seating. Secure the connector to the panel or cable assembly as required by your mounting method and wiring practice, and verify mechanical fastening and electrical contact. For replacement tasks, remove the existing connector following device disassembly procedures, then install the new connector and re-test the interface function.

Recommendations

Use appropriate ESD precautions when handling and installing the connector. Avoid excessive mechanical stress on the housing and pins during mating and unmating. For long-term reliability, check connections periodically in applications subject to vibration or thermal cycling.
