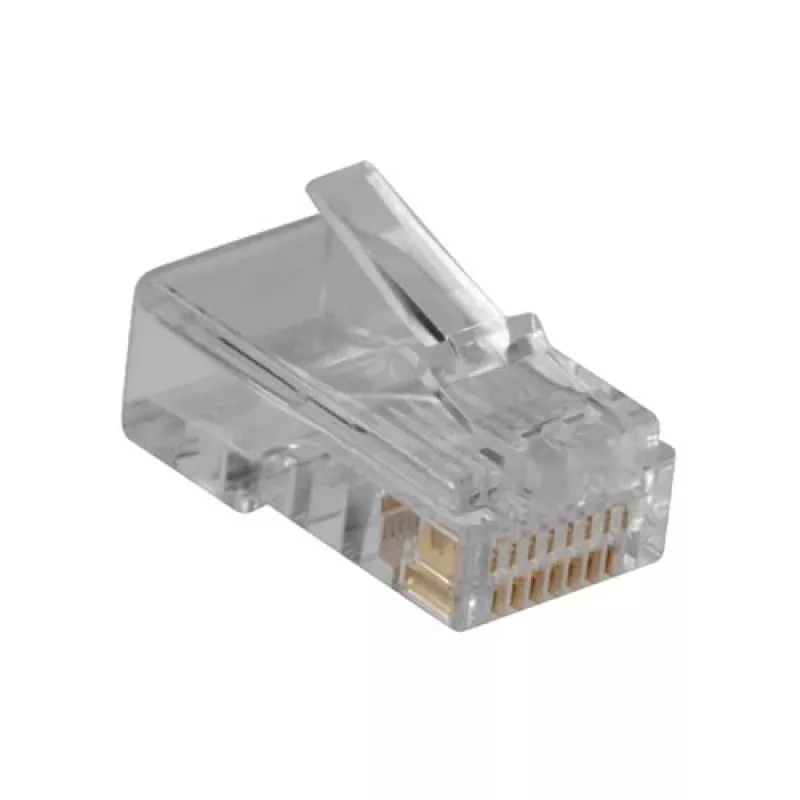

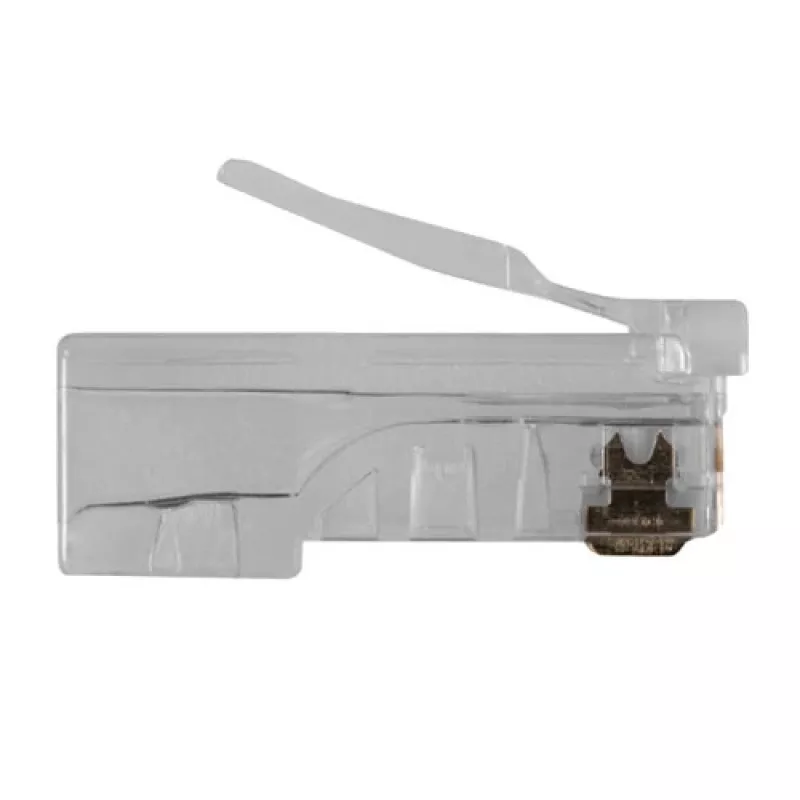

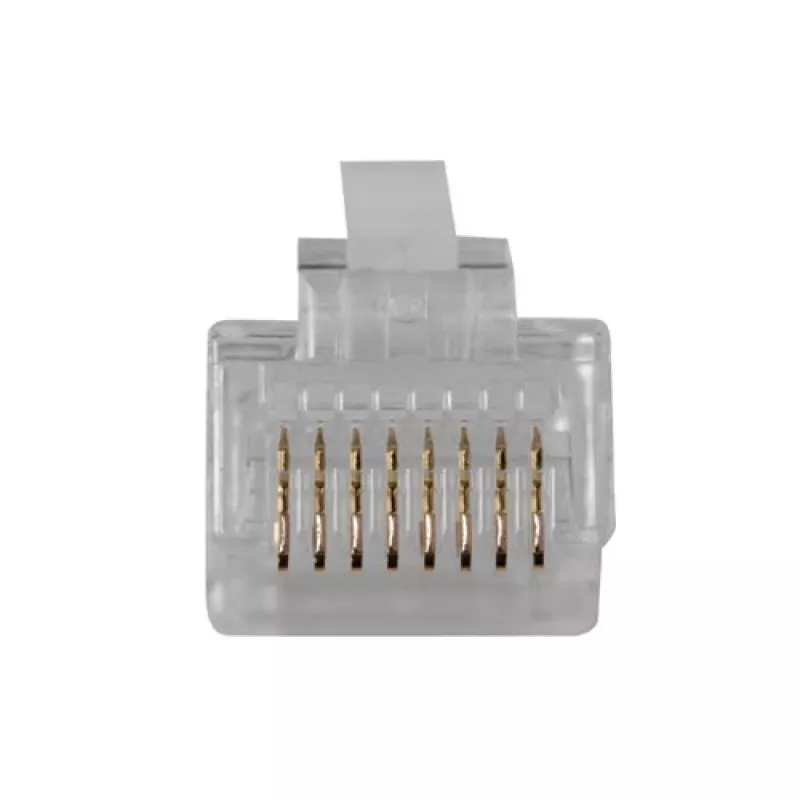

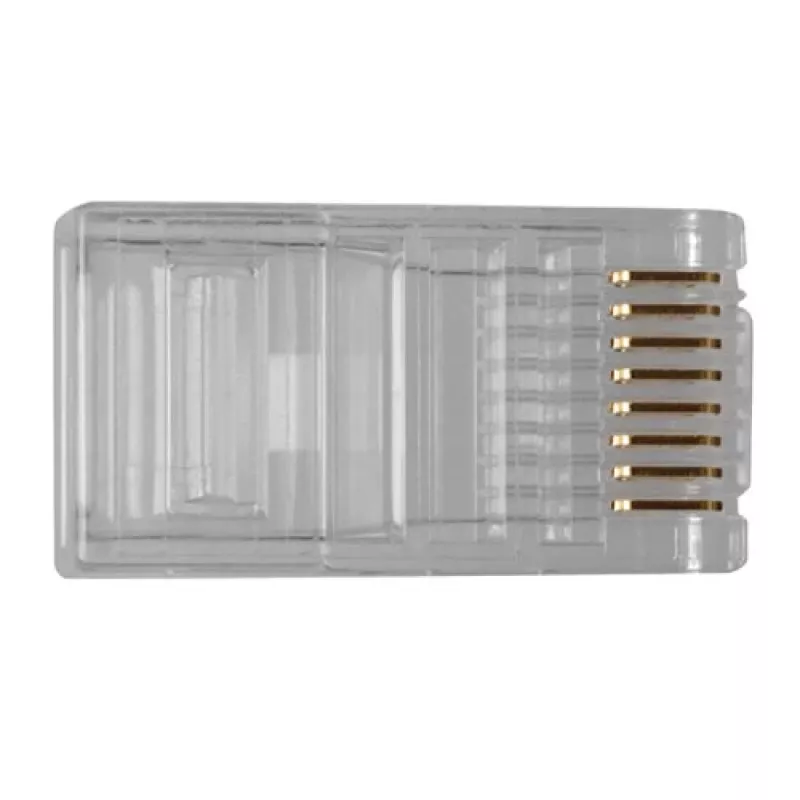

Conector modular ACT RJ45 (8P/8C) para cable plano

The ACT RJ45 modular connector for flat cable TD108 is an 8P/8C plug designed to terminate flat network cables for Ethernet and other data transmission applications. Supplied in packs of 25, these connectors provide a compact, low-profile solution for installations where flat cable routing or space constraints are present. The plug is intended to create a reliable mechanical and electrical connection between flat conductor cable and RJ45 ports in network equipment.

Advantages

The connector offers secure contact alignment and a snug fit for flat cable conductors, reducing the risk of intermittent connections. Its compact design supports low-profile cable runs and easy insertion into standard RJ45 jacks. Supplied in multi-piece packs, the product supports efficient bulk installation and replacement tasks. The construction focuses on consistent contact pressure to maintain signal integrity during typical networking use.

Suitable for

• Terminating flat Ethernet (8P/8C) cables for local area networks
• Bulk installations in office or residential wiring projects
• DIY networking repairs and small-scale network upgrades
• Situations requiring low-profile connectors for cable routing in constrained spaces

Key specifications

• Connector type: 8P/8C RJ45 modular plug compatible with flat cable
• Pack quantity: 25 pieces per pack
• Contact arrangement: eight conductor positions for standard Ethernet wiring
• Form factor: low-profile modular plug suitable for flat conductor cable
• Intended use: data transmission and network terminations

How to use

Prepare the flat cable by stripping the outer insulation to expose the individual conductors while keeping them aligned. Insert the conductors fully into the connector following the correct wiring scheme for your network standard, ensuring each conductor seats into its contact position. Use an appropriate crimping tool or termination method recommended for flat-cable modular plugs to secure the connector to the cable. After crimping, inspect the termination for proper conductor alignment and secure mechanical fit before connecting to network equipment.

Recommendations

Use a compatible crimping tool designed for modular RJ45 plugs to ensure reliable terminations. Verify the wiring order with a cable tester after termination to confirm continuity and correct pair mapping. Avoid excessive bending at the termination point and route flat cable to minimize stress on the connector.
