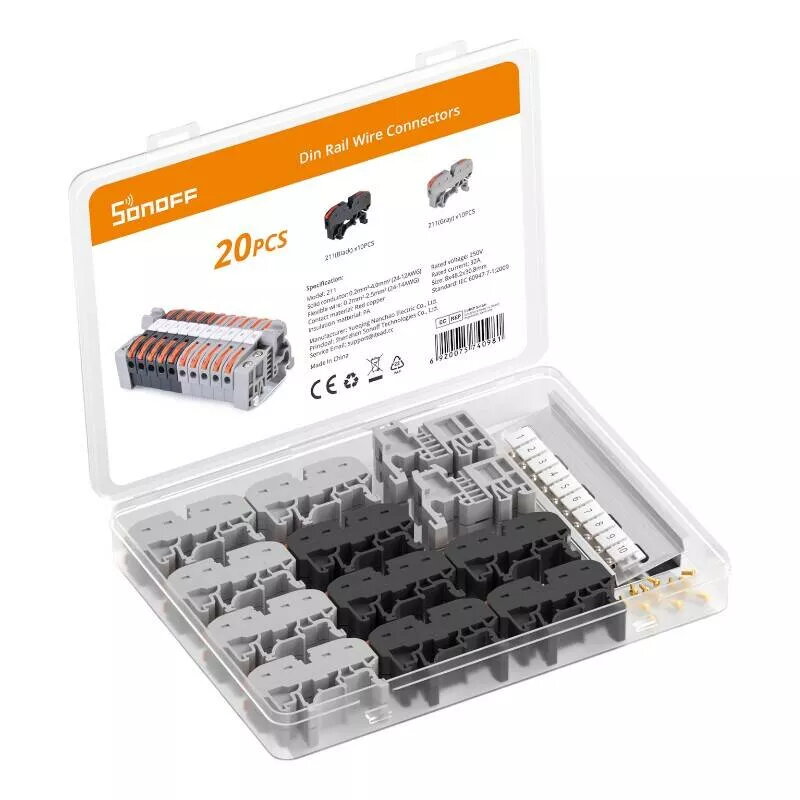

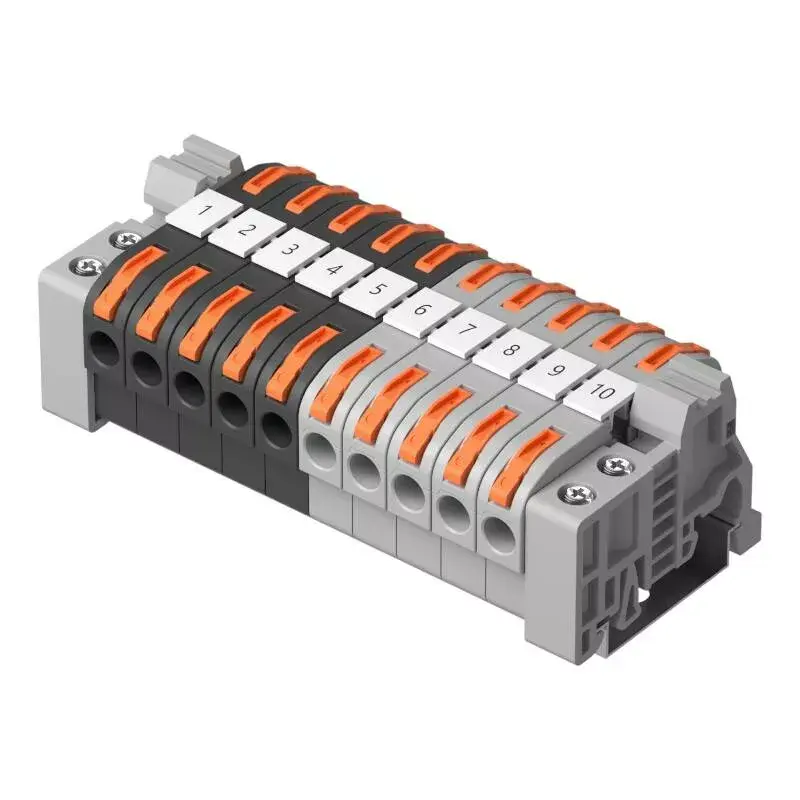

Conectores de cable para carril DIN Sonoff 211 set de 20 uds.

DIN rail wire connector Sonoff 211 set of 20 pieces is a kit of fast track couplers designed for mounting on standard DIN rails. The set provides a practical solution for making secure electrical connections in control cabinets, distribution boards and other electrical installations where reliable rail-mounted terminations are required.

Advantages

The Sonoff 211 connectors combine a robust design with simple installation. Contacts are made of red copper for good conductivity and PA plastic insulation for resistance to voltage, corrosion and aging. Rated for 250 V and up to 32 A, the connectors accept a wide range of conductor types and reduce installation time by eliminating soldering or twisting.

Suitable for

• DIN rail-mounted control cabinets and distribution boards
• Industrial electrical installations and machine wiring
• Professional and DIY wiring projects

Key specifications

• Manufacturer: Sonoff
• Model: 211
• Rated voltage: 250 V
• Rated current: 32 A
• Contact material: Red copper
• Insulation: PA
• Solid conductor: 0.2–4 mm² (24–12 AWG)
• Flexible conductor: 0.2–2.5 mm² (24–14 AWG)
• Dimensions: 8 × 48.2 × 30.8 mm
• Number of pieces: 20

How to use

Strip the conductor to the required length, insert the wire into the connector slot and close the lever to clamp the conductor. Mount the connector onto the standard DIN rail using the built-in mounting element. No soldering or additional tools are required for normal clamping and release operations.

Recommendations

Use the connectors within the specified rated voltage and current (250 V, 32 A). Verify conductor cross-section compatibility before installation and ensure the DIN rail is properly grounded according to local electrical codes.
