Conmutador de vídeo HDMI DeLOCK 11488

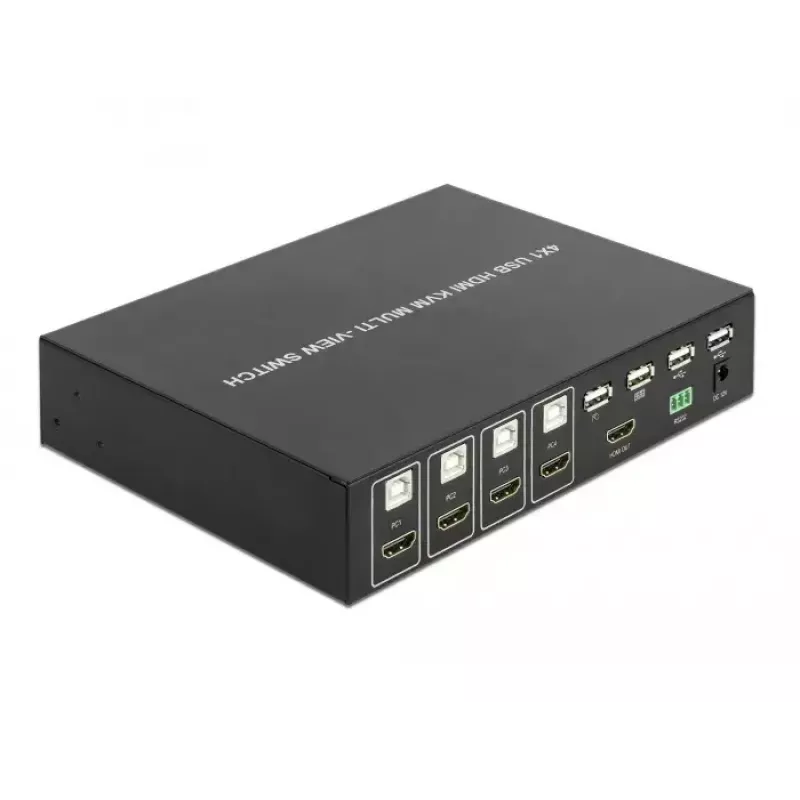

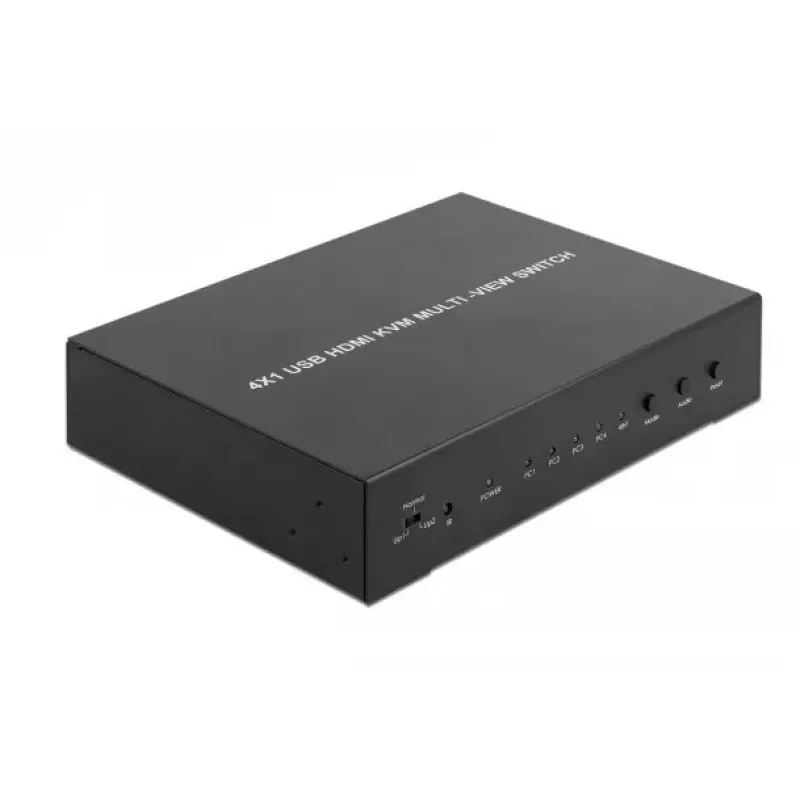

This KVM switch by Delock lets you connect four HDMI-equipped computers to a single HDMI monitor and share USB peripherals via four USB 2.0 Type-A ports. The unit supports standard HDMI video and is housed in a durable metal case with a compact footprint (160 x 210 x 44 mm). It accepts a wide AC input range (100–240 V) and supports up to 60 Hz refresh rate.

Advantages

The DeLOCK 11488 provides a Multiview mode that displays all four connected PCs on one monitor simultaneously, enabling direct mouse and keyboard interaction without manual switching. A Sync Mode is available to mirror input across all systems. The active computer can be changed using the front-panel button, mouse click, keyboard hotkey or the included infrared remote control. The integrated USB 2.0 ports allow sharing of mouse, keyboard, printer or USB storage devices.

Suitable for

• Office workstations requiring access to multiple PCs on one monitor
• Home studios or home theaters where several HDMI sources must be managed
• Control rooms or testing environments that need fast switching between systems
• Setups that share keyboard, mouse or USB storage across computers

Key specifications

• Model: DeLOCK 11488
• Video port type: HDMI
• Inputs: 4 × HDMI (computers)
• Output: 1 × HDMI (monitor)
• USB: 4 × USB 2.0 Type-A (peripherals)
• Multiview and Sync modes supported
• Control: front button, mouse, keyboard hotkey, IR remote
• Power: AC 100–240 V
• Material: metal housing
• Colour: Black
• Dimensions: 160 × 210 × 44 mm
• Maximum refresh rate: 60 Hz

How to use

Connect up to four HDMI source devices to the HDMI input ports and connect your display to the HDMI output. Plug USB peripherals into the USB 2.0 Type-A ports to share them between computers. Power the unit from an appropriate AC source (100–240 V). Use the device button, a mouse click on the displayed desktop, a keyboard hotkey or the IR remote to switch the active computer. To view all systems at once, enable Multiview mode; to mirror input to every connected PC, enable Sync Mode.

Recommendations

For stable video performance, use high-quality HDMI cables rated for your resolution and up to 60 Hz refresh rate. Place the unit on a flat surface with adequate ventilation and avoid blocking the IR receiver if you plan to use the remote control.
