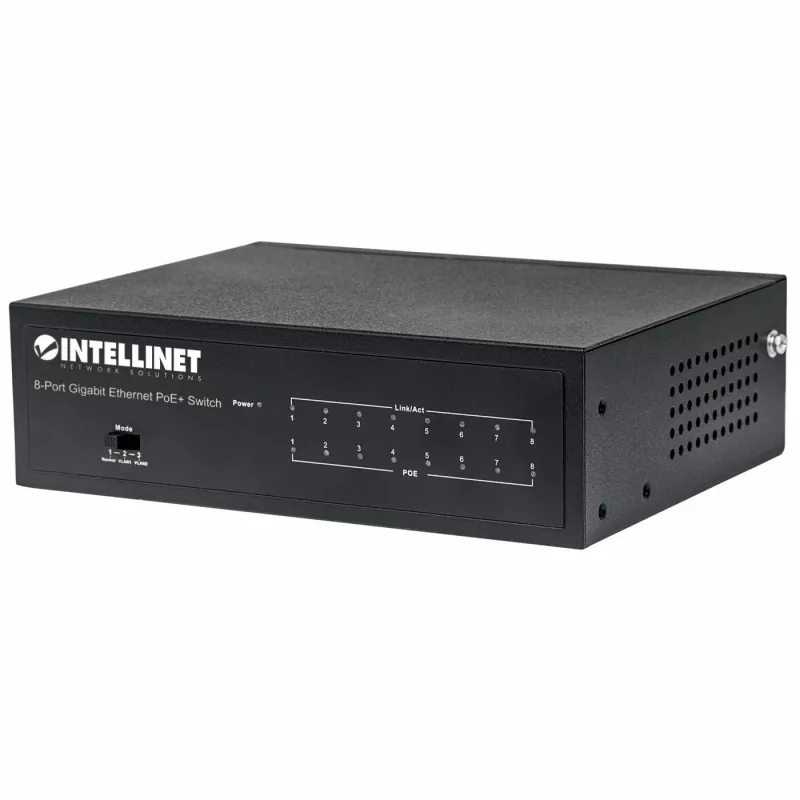

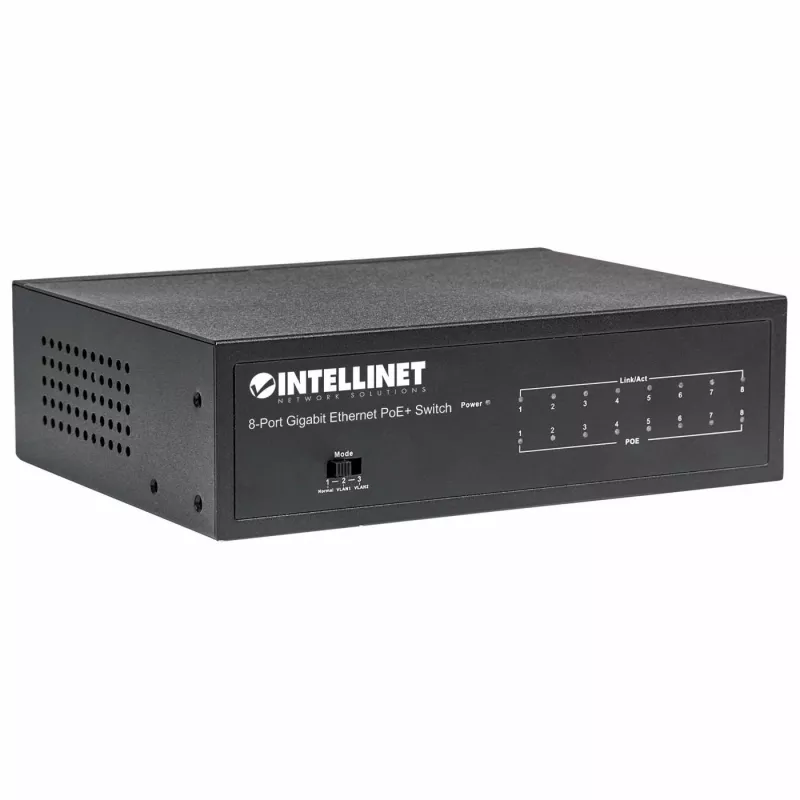

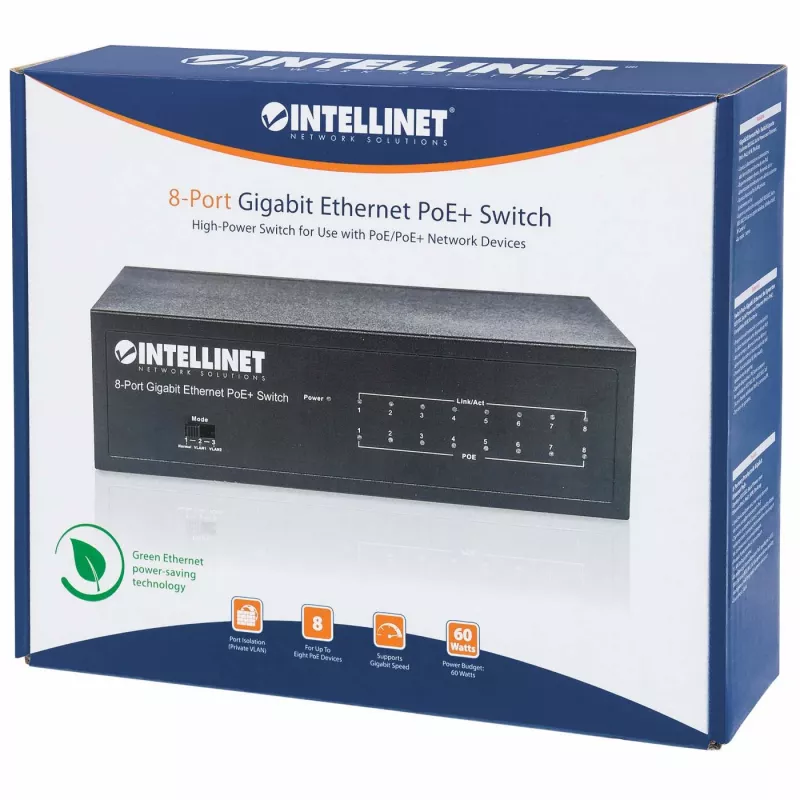

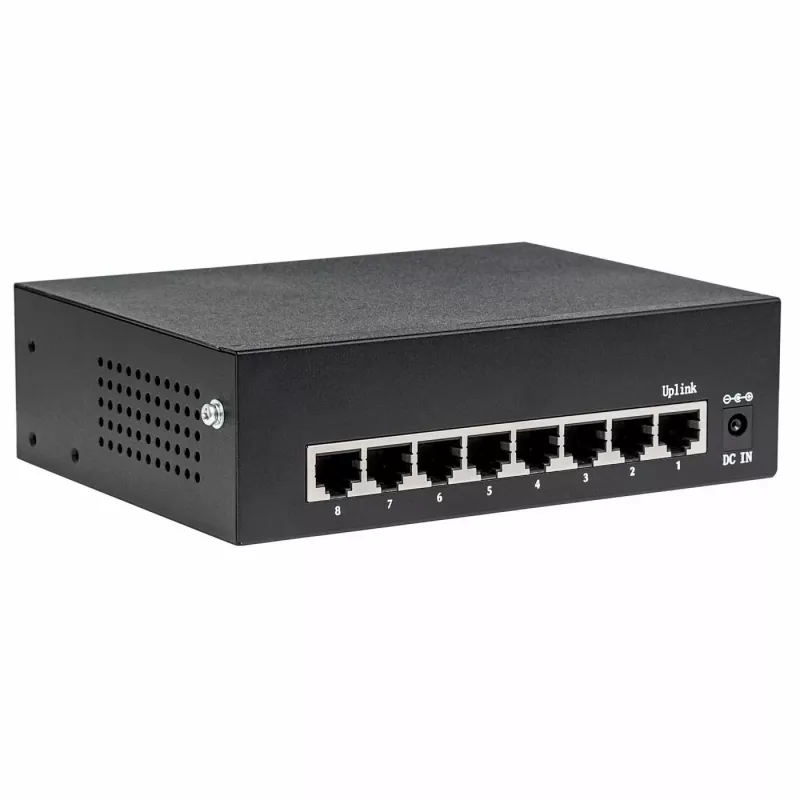

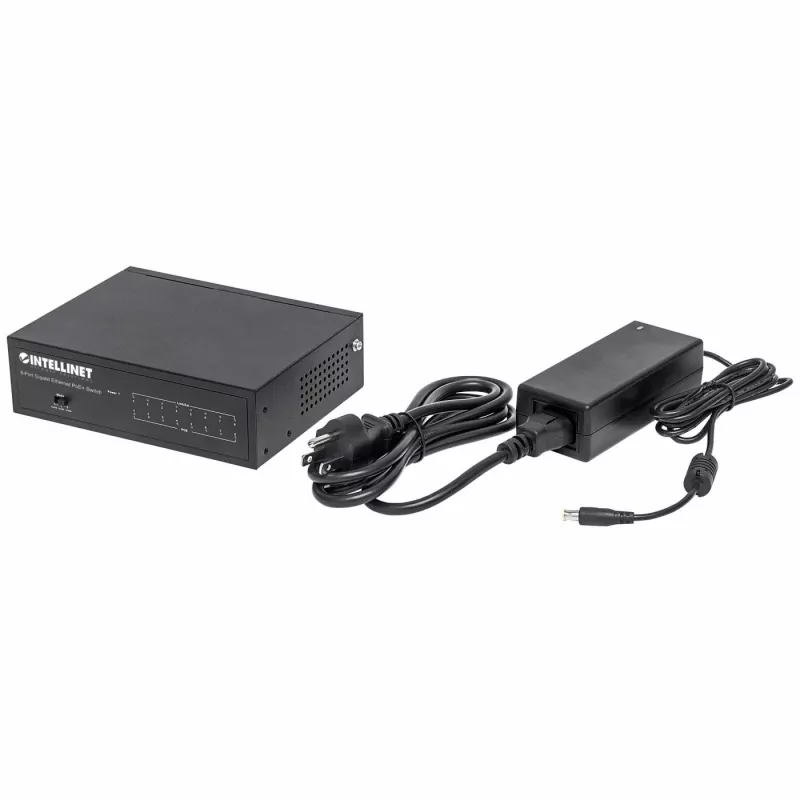

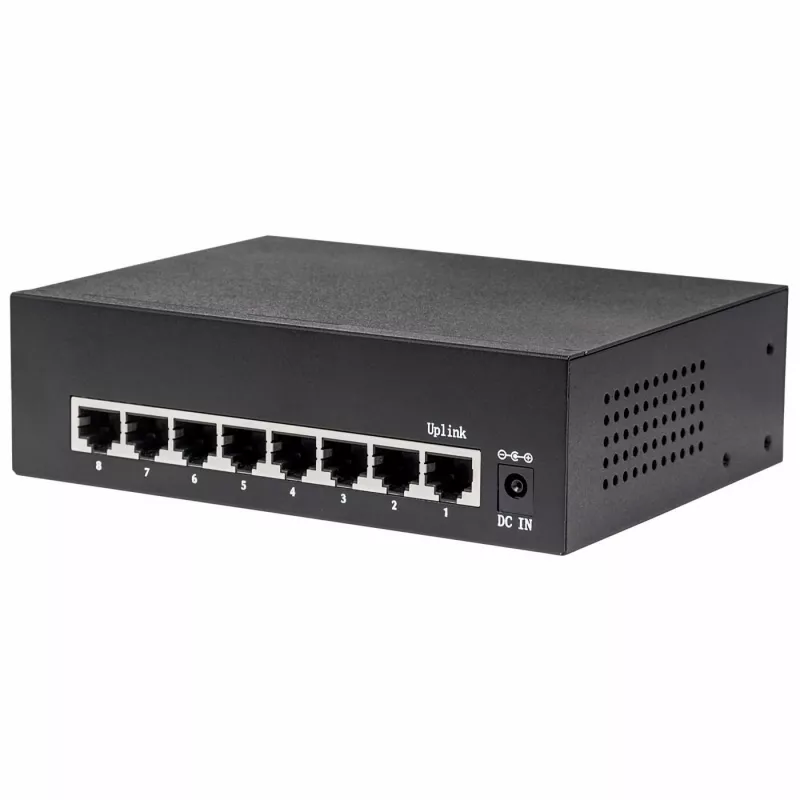

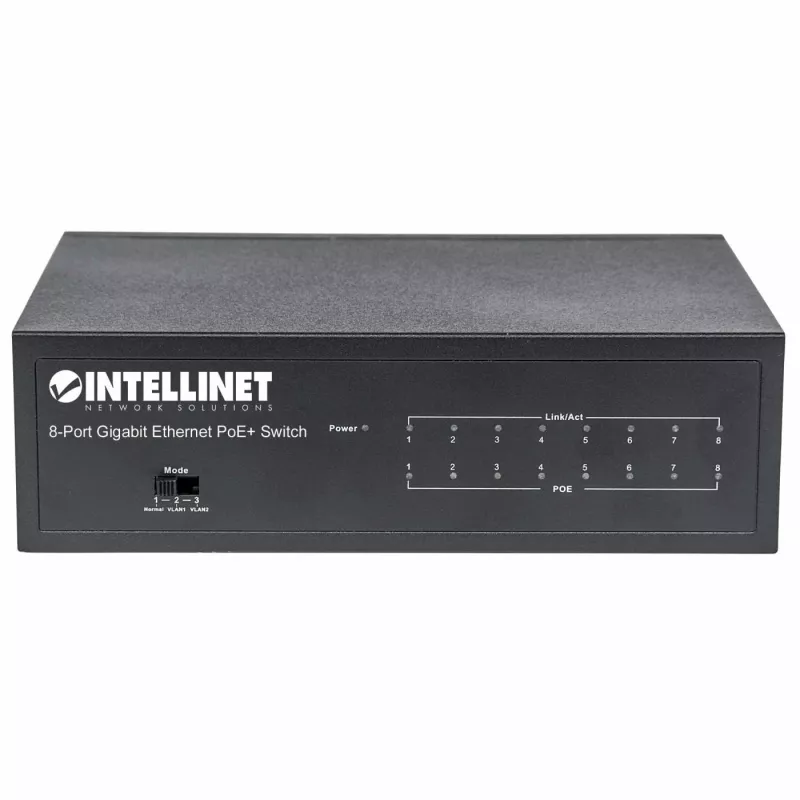

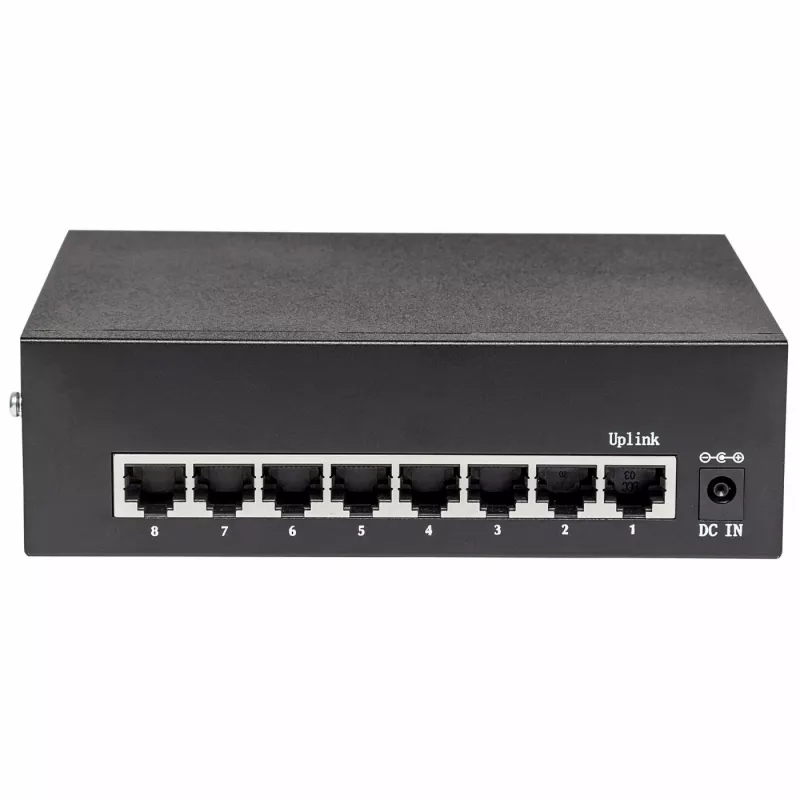

Conmutador gestionado Intellinet 8 puertos Gigabit Ethernet PoE+

The Intellinet 8-Port Gigabit Ethernet PoE+ managed switch provides eight Gigabit RJ-45 ports with Power over Ethernet (PoE+) capability and a total PoE budget of 60 watts. Designed to carry both data and power over standard Cat5e/Cat6 cables, the switch supports IEEE 802.3af and 802.3at devices, offers a 16 Gbit/s switching capacity and a 4096-entry MAC address table for reliable network performance in small to medium deployments.

Advantages

This managed switch delivers up to 30 W per port for compatible PoE+ devices while maintaining a total budget of 60 W, removing the need for separate power supplies for attached equipment such as IP cameras, VoIP phones and wireless access points. It includes Private VLAN (port isolation) for secure separation of endpoints, and supports IEEE 802.3az Green Ethernet to reduce power consumption on unused links and adjust power output by cable length. Short-circuit, overload and high-voltage protections help safeguard connected devices.

Suitable for

• Powering IP video cameras and networked surveillance systems
• Connecting and powering wireless access points and bridges
• VoIP deployments and desktop IP phones
• Small office or branch networks requiring port isolation and managed features

Key specifications

• Ports: 8 x Gigabit Ethernet (10/100/1000) RJ-45
• PoE standard: IEEE 802.3af / IEEE 802.3at (PoE+), total PoE budget 60 W
• Maximum per-port power: up to 30 W (device-dependent)
• Switching capacity: 16 Gbit/s
• MAC address table: 4096 entries
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at, 802.3az
• Switch type: Managed
• Colour: Black; Weight: 0.93 kg

How to use

Install the switch on a stable surface or in a rack according to local regulations. Connect uplink and endpoint devices using Cat5e or Cat6 cables. Enable PoE by connecting IEEE 802.3af/at-compatible devices to the RJ-45 ports; the switch will supply power automatically within its PoE budget. Use the front-panel VLAN switch to activate Private VLAN (port isolation) when you need to restrict communication between access ports while preserving uplink access. Configure managed features via the switch management interface as required for your network.

Recommendations

Do not exceed the total PoE budget of 60 W; plan power allocation for attached devices accordingly. For full PoE+ power per port, verify connected device compatibility with IEEE 802.3at and consider cable quality and length to ensure stable power delivery.
