Dahua KTP05(F) Kit de videoportero

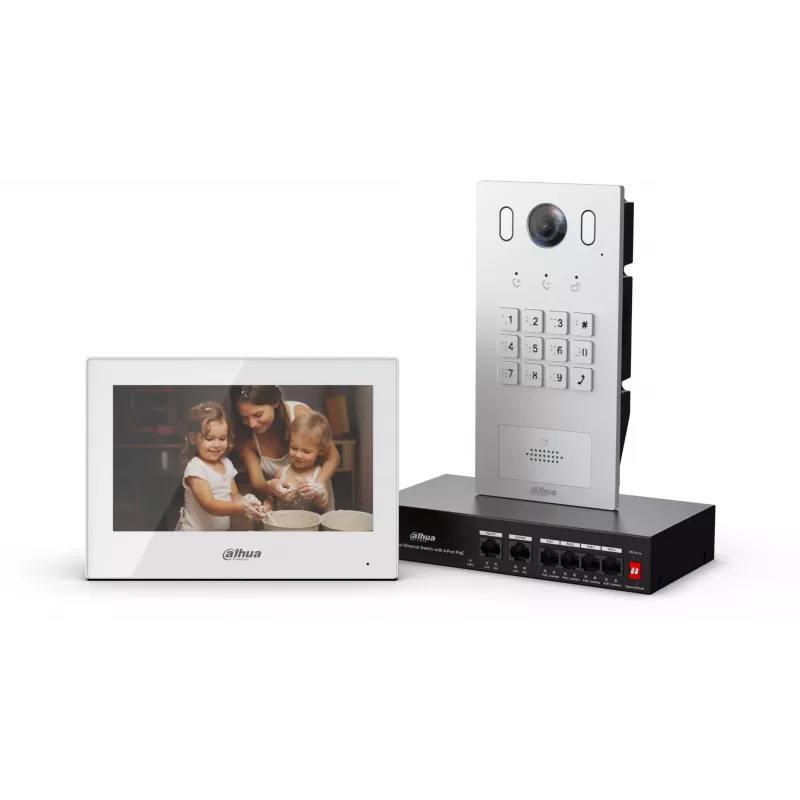

The Dahua KTP05(F) Video Intercom Kit includes an outdoor station and an indoor monitor, providing a complete video intercom solution. The outdoor station features a 2 MP HD camera and a mechanical keypad, while the indoor monitor has a 7" TFT touch screen with 1024 × 600 resolution.

Key features

• Outdoor station with 2 MP HD camera and mechanical keypad
• Supports up to 5,000 users and 10,000 cards
• Multiple unlock methods: password, IC card, and remote unlocking
• Wiegand protocol for connecting card readers and controllers
• 7" TFT touch screen with 1024 × 600 resolution
• H.265 and H.264 video decoding
• 6 alarm inputs and 1 alarm output
• Standard PoE

Specifications

• Brand: Dahua
• MPN: KTP05(F)
• Outdoor station model: DHI-VTO3222E-P
• Indoor monitor model: DHI-VTH2621GW-WP
• Outdoor station camera: 1/2.9" 2 MP CMOS
• Field of view: H: 140°, V: 80°, D: 160°
• WDR: 120 dB
• Noise reduction: 3D NR
• Video compression: H.264, H.265
• Video resolution: Main stream: 720p, WVGA, D1, CIF; Sub stream: 1080p, WVGA, D1, QVGA, CIF
• Frame rate: 25 fps
• Day/Night: Color/B&W
• Audio compression: G.711a, G.711u, PCM
• Audio input: 1
• Audio output: Built-in speaker
• Audio mode: Two-way audio
• Audio enhancement: Echo cancellation, digital noise reduction
• Audio bit rate: 16 KHz, 16 bit
• Communication mode: 2-wire
• Unlock modes: Card; password; remote unlock
• Card type: Mifare card
• Automatic snapshot: Yes (requires SD card in indoor monitor or door station)
• Video storage: Yes (requires SD card in indoor monitor or door station)
• Memory: Supports Micro SD card (up to 256 GB)
• Web configuration: Yes
• Card reading range: 0 cm–3 cm (0"–1.18")
• Housing material: Aluminum alloy
• Card capacity: 10,000
• RS-485: 1
• Wiegand: 1
• Alarm input: 1
• Alarm output: 1
• Power output: 1 (12 V, 600 mA)
• Doorbell: 1
• Exit button: 1
• Lock control: 1, normally closed
• Network port: 1 × RJ-45, 10 Mbps/100 Mbps
• Tamper alarm: Yes
• Housing color: Silver
• Power supply: 48 VDC, 0.4 A; PoE (802.3af/at)
• Power adapter: Optional
• Installation: Flush mount (mounting kit included)
• Certifications: CE
• Product dimensions: 200.0 mm × 98.0 mm × 35.4 mm (7.87" × 3.86" × 1.39")
• Protection: IK08, IP65 (silicone sealant required – details in quick start guide)
• Operating temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Operating humidity: 10%–95% (RH), non-condensing
• Operating altitude: Below 3000 m (9842.52 ft)
• Operating environment: Outdoor
• Power consumption: ≤5 W (standby), ≤7 W (working)
• Storage humidity: 30%–75% (RH)
• Storage temperature: 0 °C to +40 °C (+32 °F to +104 °F)
• Indoor monitor display type: Capacitive touch screen
• Indoor monitor display: 7" TFT
• Indoor monitor screen resolution: 1024 (H) × 600 (V)
• Indoor monitor network protocols: RTSP; DNS; RTP; SIP; SSH
