DeLOCK 90882 toma IEC F plata blanco 75 Ω

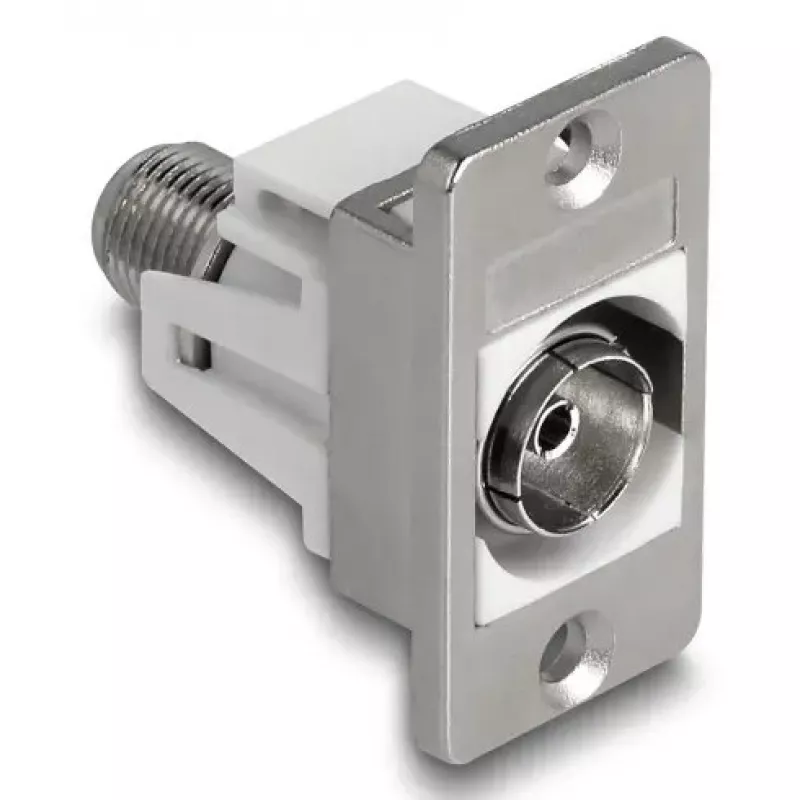

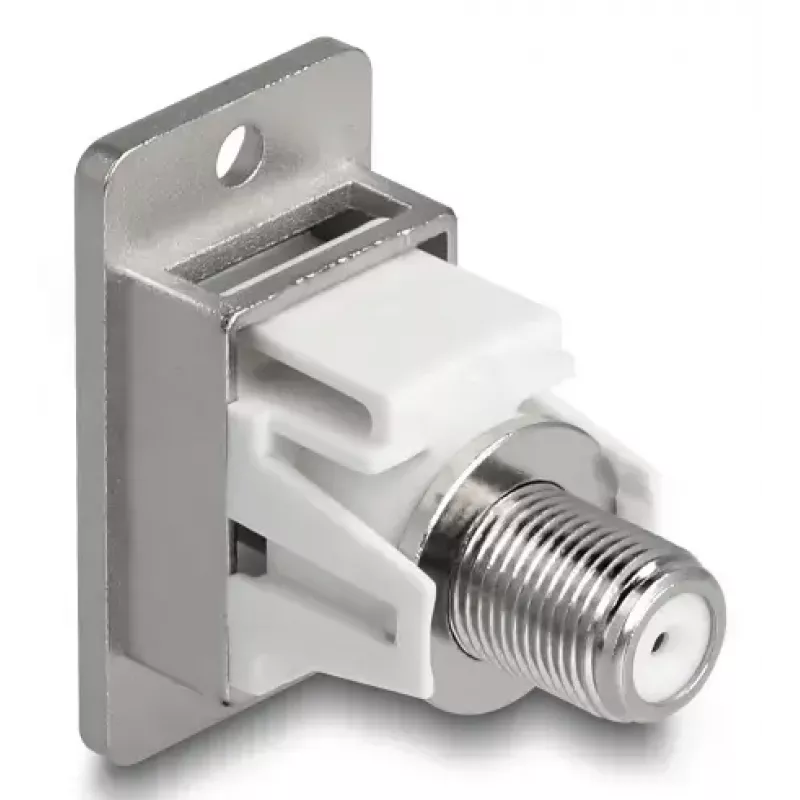

The DeLOCK 90882 is an IEC F panel-mount socket outlet with 75 Ω input impedance, designed for secure connection of antenna and coaxial cables. Constructed from plastic and zinc, it comes in a silver and white finish and is intended for installation in housings or equipment panels where a standard IEC F connection is required.

Advantages

This IEC to F panel mount provides a compact 19 × 32.8 × 35.5 mm form factor suitable for tight installations. Its 75 Ω impedance matches common antenna and RF coaxial systems, while the plastic and zinc construction offers a balance of durability and light weight. The panel-mount design ensures a stable, flush connection when installed in a housing.

Suitable for

Key specifications

How to use

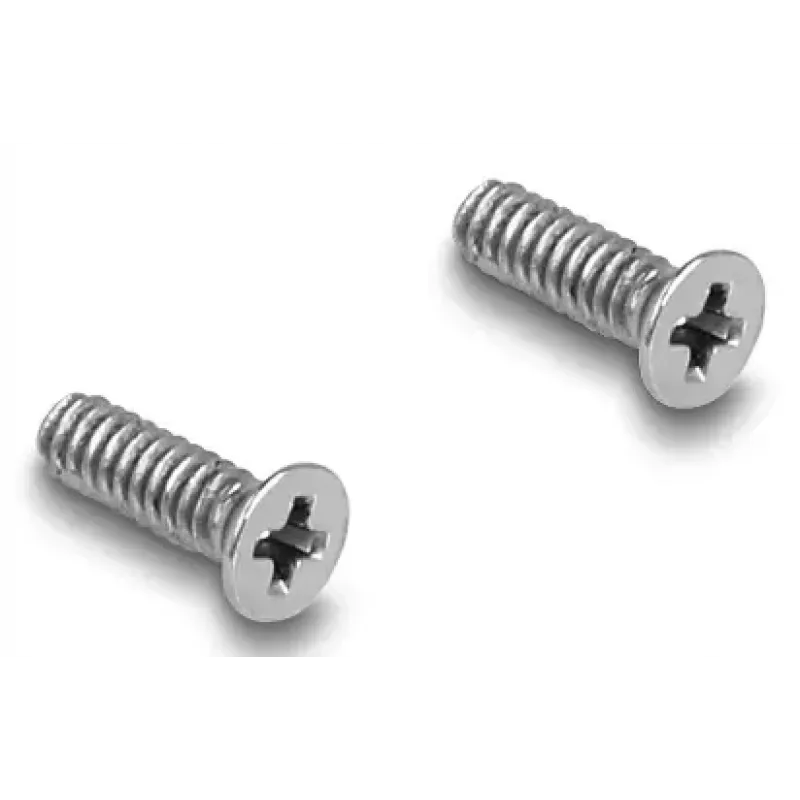

Mount the socket outlet into a prepared cutout in the housing or panel, ensuring the flange sits flush. Secure the unit according to panel thickness using appropriate fasteners. Connect the incoming coaxial cable to the rear of the IEC F socket following standard coaxial termination practices, and route the cable to the device requiring the antenna connection.

Recommendations

For reliable RF performance, use 75 Ω coaxial cables and ensure connections are tightened and shield continuity is maintained. Avoid exposing the connector to excessive mechanical stress or moisture; install the socket in a protected panel or enclosure when used in environments with dust or humidity.
