DeLOCK conector de alimentación DC 5,5 x 2,1 mm conector hembra de montaje versión soldadura en ángulo 20 V 10 A

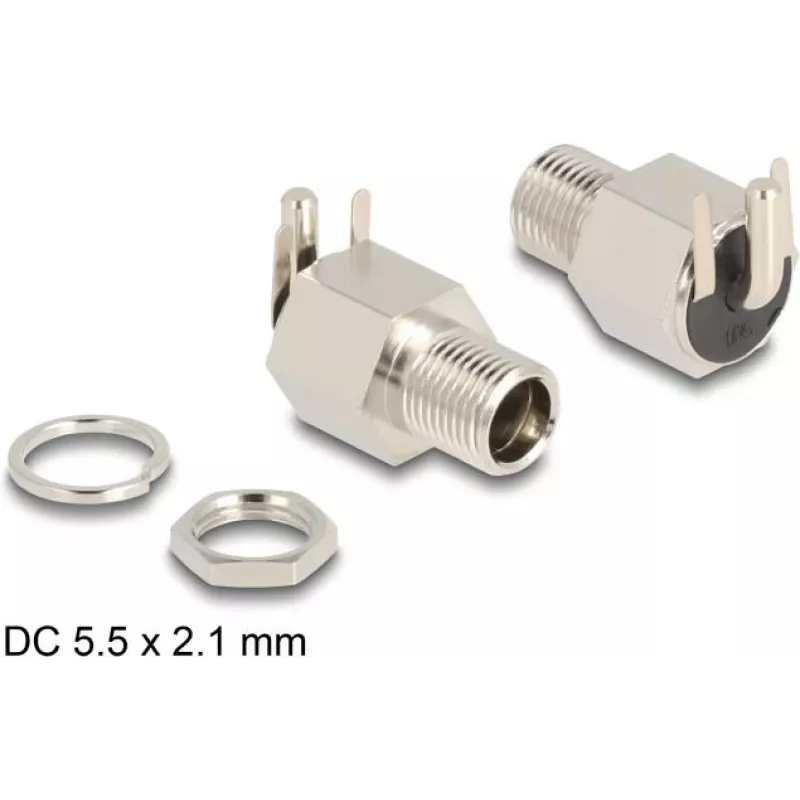

The DeLOCK Connector DC 5.5 x 2.1 mm female bulkhead soldering angled is a panel-mount DC power connector designed to be installed in a housing or device to provide a secure power input. It accepts plugs with a 5.5 mm outer diameter and a 2.1 mm inner pin, and is intended for angled cable routing where a solder connection is required. The connector is silver in colour and specified for use at up to 20 V and 10 A, with a body length of approximately 12 mm.

Advantages

This angled female bulkhead offers a compact panel-mount solution that simplifies routed cabling while maintaining a stable electrical connection. The soldering termination provides a durable joint for permanent wiring, and the 10 A current rating accommodates a range of low-voltage electronic devices. Its standardized 5.5 x 2.1 mm dimensions ensure compatibility with common DC plugs.

Suitable for

Key specifications

How to use

Drill or prepare an appropriately sized cutout in the housing or panel and insert the bulkhead connector from the outside. Secure the connector according to the panel-mount method provided (nut or retaining mechanism as applicable), then solder the supply wires to the connector terminals following correct polarity. After soldering, verify mechanical stability and electrical continuity before applying power. Observe the specified voltage and current limits during use.

Recommendations

Use the connector within the rated 20 V and 10 A limits and ensure proper insulation of solder joints. For reliable long-term performance, avoid exposing the connector to excessive mechanical stress or moisture; select an appropriate seal or enclosure if environmental protection is required.
